R5900102 /00 CX-2036
Note: No display cables are included in the ClickShare box at purchase.
When setting up a display configuration, connect the HDMI cable to the display. When necessary, use an
adapter piece to connect to a display port or a DVI port on the display side.

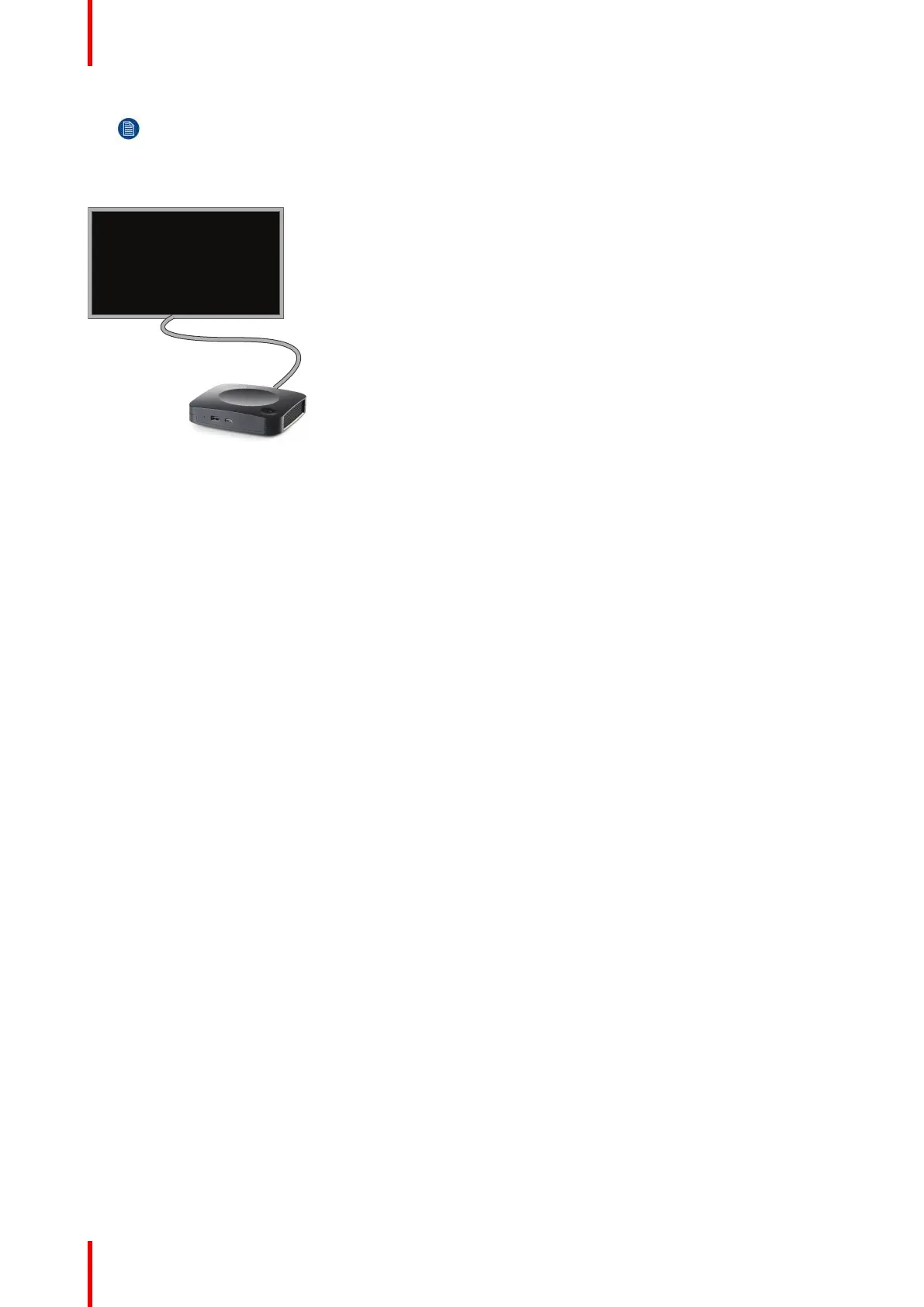

Image 4-6: Display connection
4.7 Camera connection
About USB cameras
Any USB camera can be connected to the Base Unit. A list of supported cameras can be found on Barco’s
website.
To connect
1. Connect the camera via USB to the Base Unit.
Camera connected to the Base Unit is accessible when plugging in the button. No drivers required, all
camera’s will be visible to the user as “ClickShare Camera”.
4.8 Content Audio connection
About content audio (no speakerphone connected)
The ClickShare Button captures the audio output of the user’s laptop and sends it to the Base Unit together
with the video signal. The audio can be output at line levels from the mini jack socket (3.5mm), TOSLINK
socket or via the HDMI connector (can be set in the configurator).
It is up to the user to decide whether or not to send the audio signal together with the video signal. The user
can decide this by using the same tools as he would to control the laptop’s speakers or a headphone: the
audio controls of the operating system or the physical buttons on the keyboard of their laptop (mute/unmute,
lower volume, higher volume).
There will be synchronization between the audio and video signal when the user is sharing content.
About content audio (speakerphone connected)
The content audio captured on the user’ laptop is transmitted via the sharing Button to the Base Unit and is
send to USB port with speakerphone connected.
Audio via HDMI (no speakerphone connected)
When your display is connected via HDMI and it supports audio, a separate audio connection is not
necessary. The audio signal is sent together with the video signal to the display.
When USB speakerphone is attached to the Base Unit, this will output all audio. Even if separate audio system
is attached.
