Barco ClickShare CX-20 set Gen 2 User Manual

R5900102 /00 CX-2074
Do not use IP address 192.168.2.x for a Subnet mask 255.255.255.0 and IP address 192.168.x.x
for a Subnet mask 255.255.0.0
Use a proxy server
This setting is important for the auto-update feature of the Base Unit, which require internet access.
1. Check the check box next to Use a proxy server.

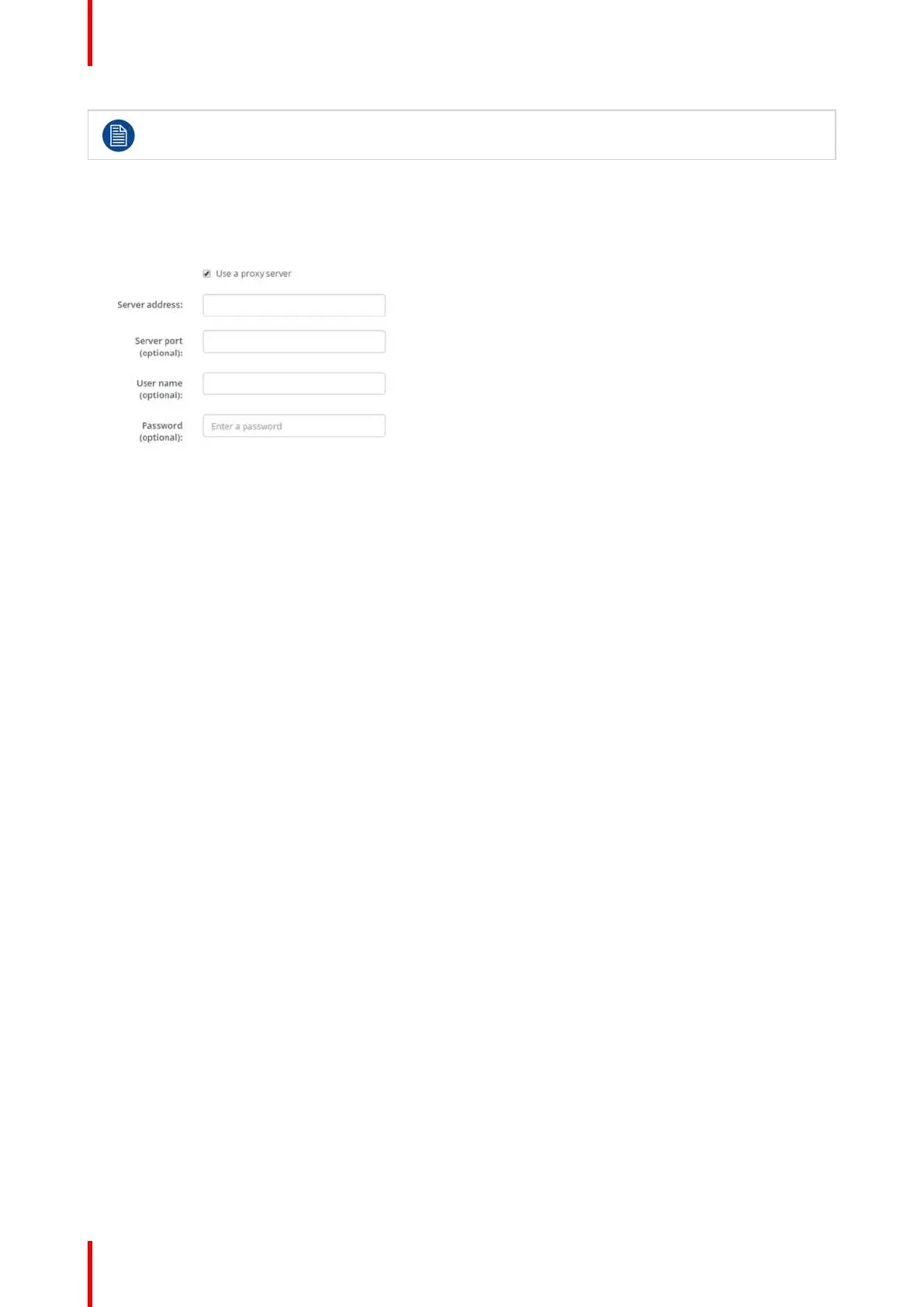

Image 6-20: Proxy settings
The proxy settings become available.
2. Enter the proxy server address. Enter the IP address or hostname.
Some proxy servers need a port number, user name and password, for others is this optional.
3. Optionally, enter the used server port.
4. Optionally, enter the user name.
5. Optionally, enter the password.
6. Click Save changes to apply the settings.
6.11 Services, Mobile devices
ClickShare app
The ClickShare app is enabled by default and makes it possible to connect with a mobile device to the Base
Unit.
Passcode type selection
1. Log in to the Configurator.
2. Click WiFi & Network → Services.
CX-20 Configurator

Barco ClickShare CX-20 set Gen 2 Specifications

General

Wireless Conferencing	Yes
Network Connectivity	Wi-Fi, Ethernet
Native Protocols	AirPlay, Google Cast, Miracast
Relative Humidity	20% to 80% (non-condensing)
Video Output	HDMI
Supported Resolutions	Up to 4K Ultra HD (3840x2160)
Operating System Compatibility	Windows, macOS, Android, iOS
Security	WPA2
USB Ports	1 x USB Type-C, 1 x USB Type-A
Resolution	Up to 4K Ultra HD (3840x2160)
Operating Temperature	0°C to +40°C
Storage Temperature	-20°C to +60°C
