5. Lenses & lens holder
1
F

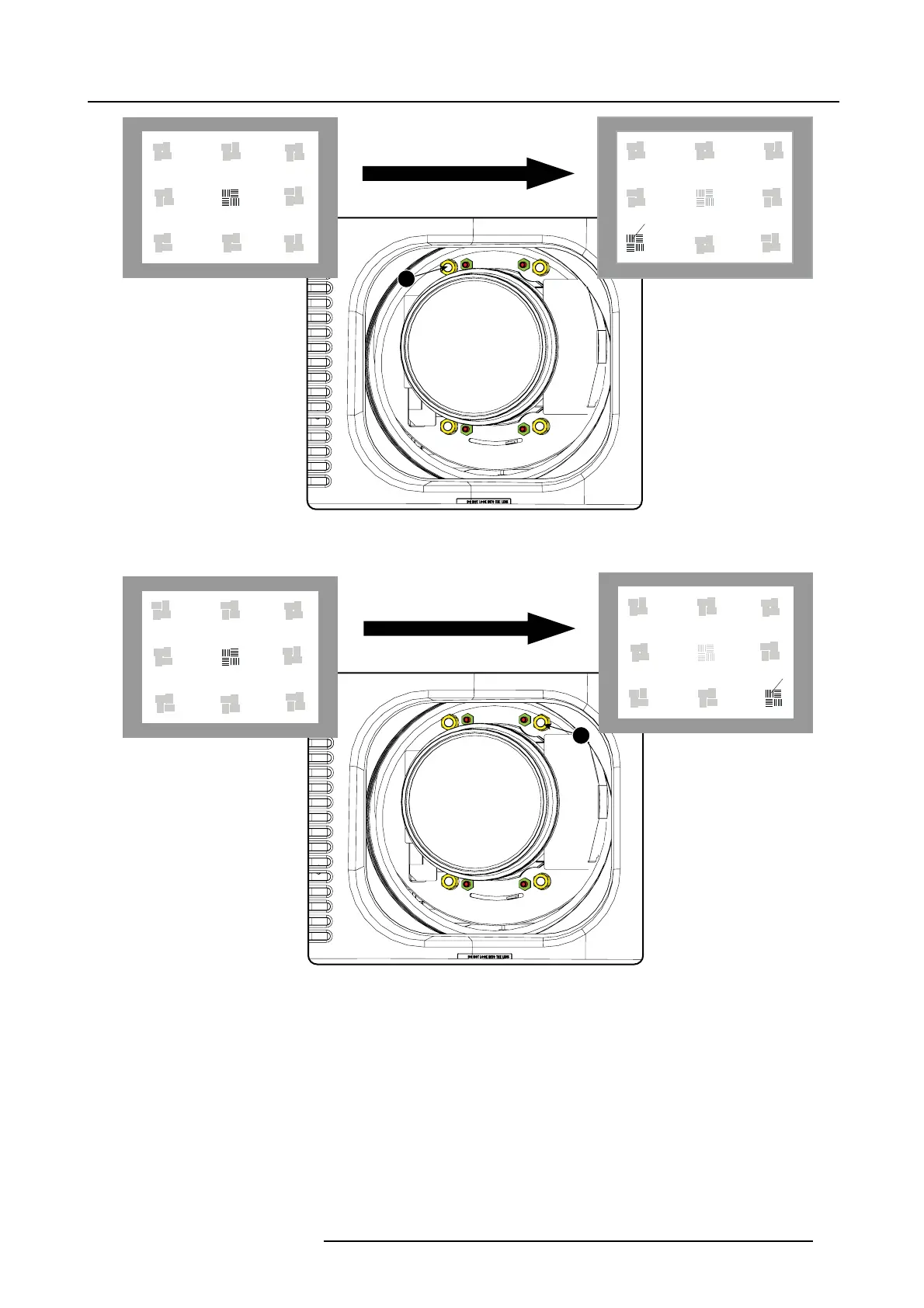

Image 5-22
Left bottom focusing
7. Sharpen bo ttom right corner of the screen by adjusting nut 2.
2
F
Image 5-23
Right bottom focusing
8. Sharpen top right corner of the screen by adjusting nut 3
