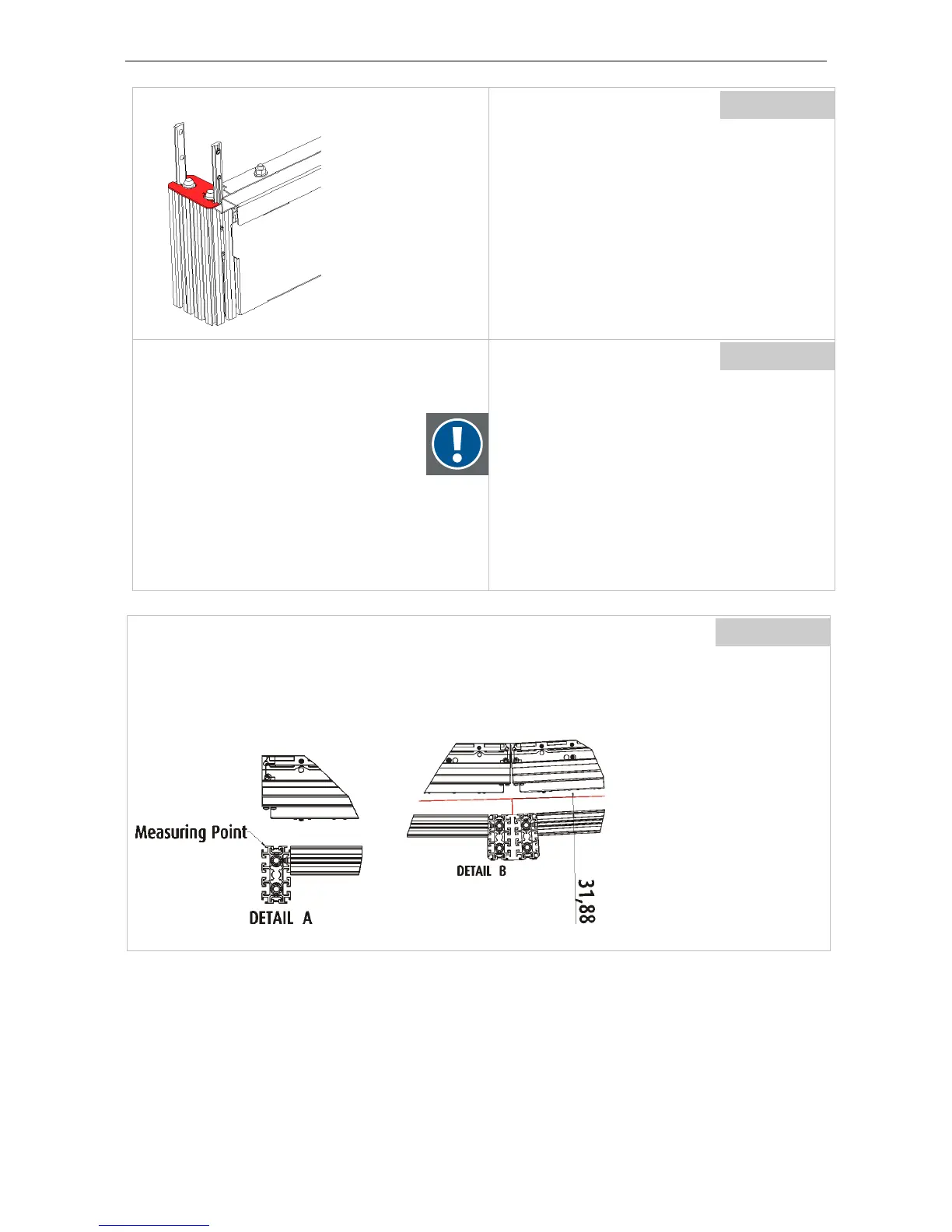

5. Mechanical setup of display wall with pedestals
Pedestal
44
Also mount the single connection plates on the
outer profiles!
Pedestal
45
To ensure a good installation we need to verify
the curvature after setting up the supports
In the following you find the rules for measure-
ment for a setup of 3degrees, 5degrees, and
8degress.
Make sure that the setup matches the distances!
Pedestal
46
Measuring points:
Outer edge of a single connection part (see detail A) or the respective edge of a double connection part (see
detail B)
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
