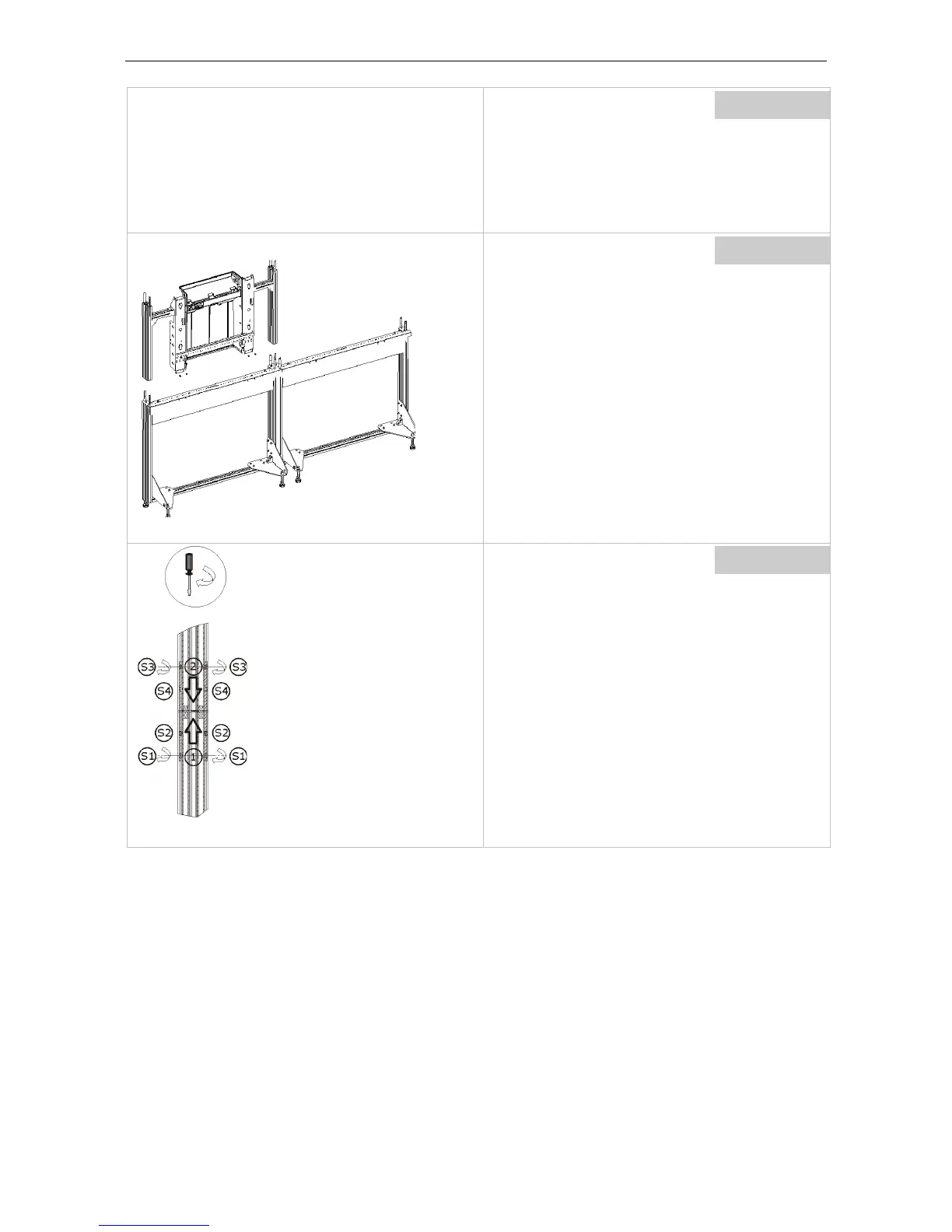

5. Mechanical setup of display wall with pedestals
Pedestal
Due to the difference in height between KVD/IVD
panels and HVD panels, the lower edge of the
display in case of HVD panels is 1mm
the nominal height, e.g. 876mm for 875mm ped-
estals. This is within the tolerances.
Pedestal
With all displays:
position the front access mount module on the
pedestal.
To ease assembly place the module as parallel to
the pedestal as possible.
The T-bar connectors of the pedestal
vertical profiles of the front access mount mod-
ule.
The "ears" of the front access mount module
into the cutouts of the pedestal's top.
Pedestal
Fix the first front access mount module to the
support like this:
Tighten the top screw (S3) of all 4 T-bar connect-
ors.
Then tighten the screw (S4) of all 4 T-bar con-
nectors.
Finally tighten the screw (S2) of the rear T-bar
connectors.
Please note:
Fixing the top and the bottom screw presses the
vertical profiles of the front access mount module
and the pedestal together and ensure a zero gap.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
