Barco LCD 5521 V4 User Manual

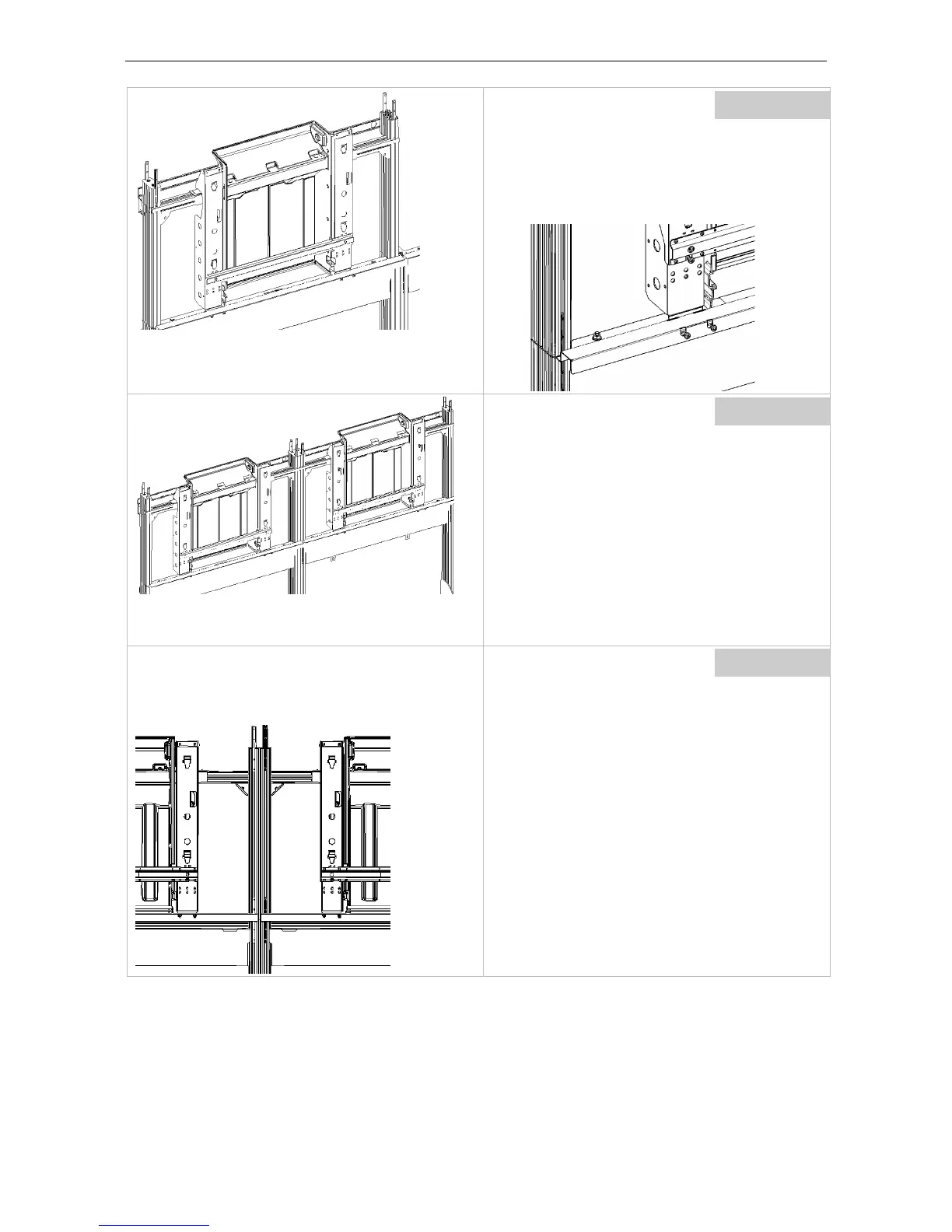

5. Mechanical setup of display wall with pedestals
Pedestal
58
Subsequently fix the ears of the front access
mount module to the horizontal profile of the t
op
of the pedestal, using 2x two M6x7 screws
B362666.
Pedestal
59
Proceed accordingly with the next front access
mount modules.
If required (HVD panels), remove the spacers, see
above.
Shift the T-bar connectors up like described
above, and place the front access mount module
as parallel as possible over the pedestal.
Slide it into the T-bar connectors of the pedestal.
Pedestal
60
If you have to fix all T-bar connectors from front,
access to the rear T-bar connectors is only possi-
ble when shifting up the rear cover.
Shift the rear cover upwards to reach the screws
at the rear side of the center profile.
Fix the T-bar connectors of the seconded front ac-
cess mount module. Mind the correct sequence:
First fix the top screw of all T-bar connectors,
Then fix the bottom screw of all T-bar connectors,
Then all the other screws.
