5. Mechanical setup of display wall with pedestals
Pedestal
75

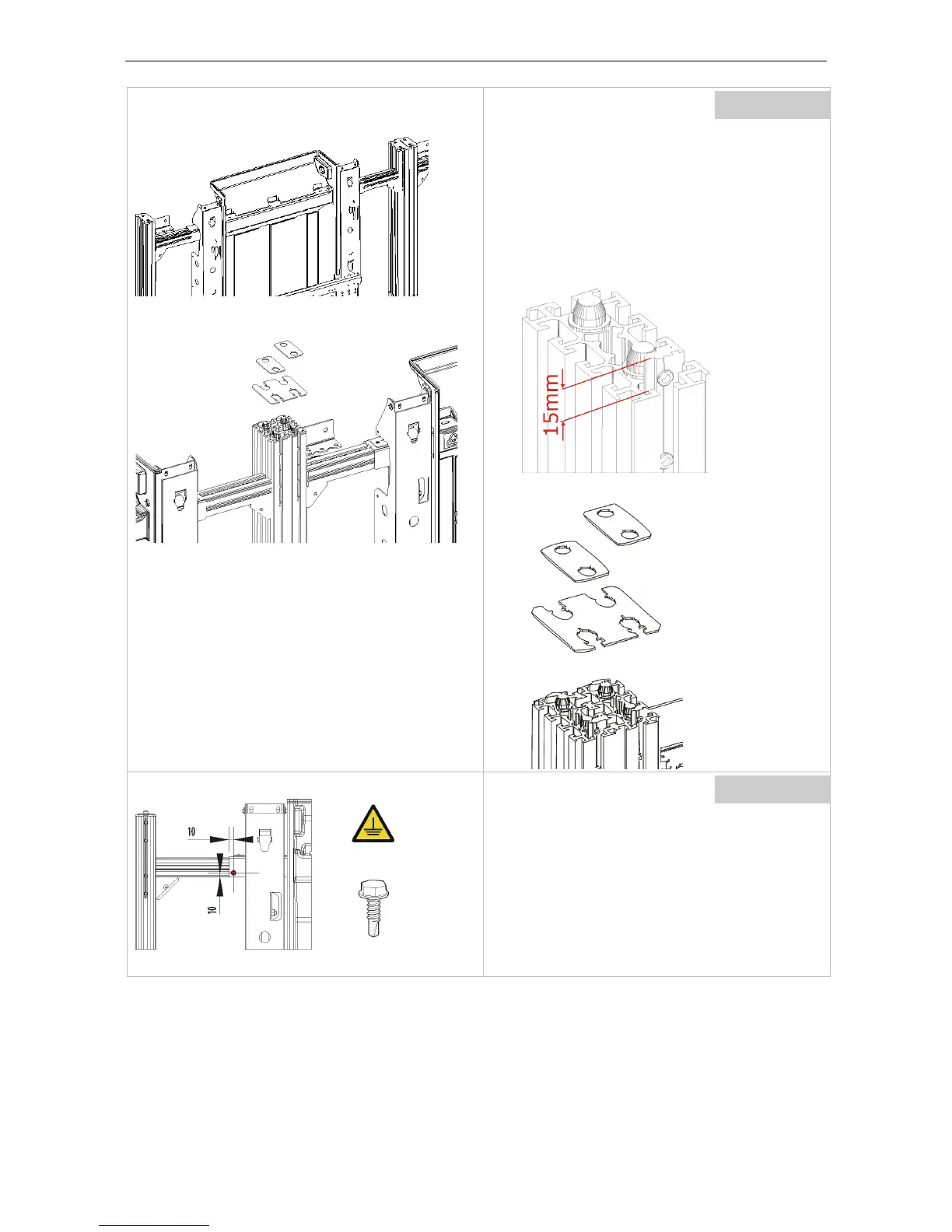

In case of the top row, place the connection
holders onto the connection plates.
The connection holders ensure that the connec-
tion plates stay in place.
It is due to the connection holders that the T-bar
connectors of the top row need to have an offset
of 15mm.
Pedestal
76
For proper grounding, apply the self cutting screw
G205790 to every column!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
