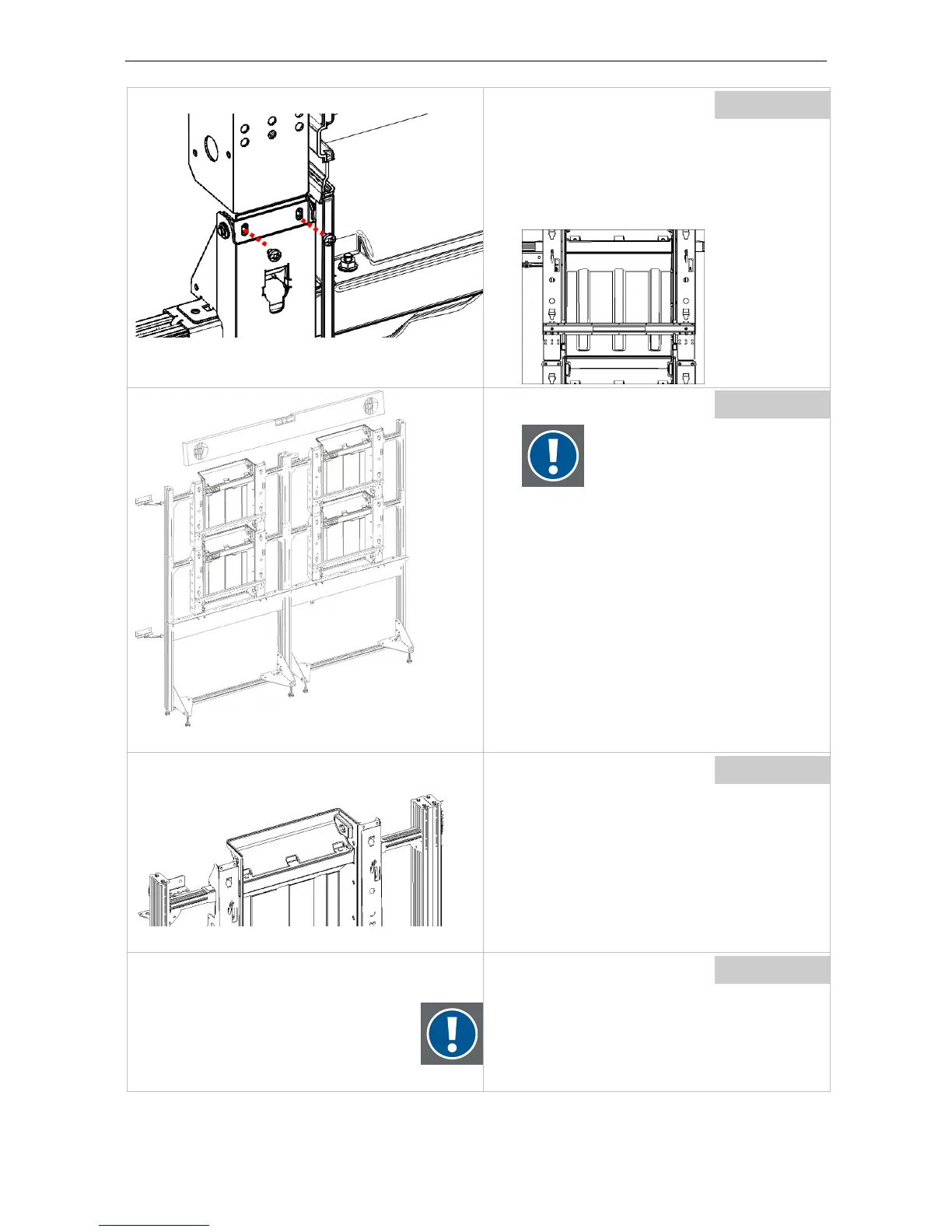

5. Mechanical setup of display wall with pedestals
When the T-bar connectors are fixed, the front ac-
cess mechanism of vertical adjacent modules has
to be connected.
Fix it with 4 screws M6x7 (B362666).
When the second row has been installed,
level the system!
This will noticeable facilitate the installation!
Pedestal
Apply the connection plates as described above.
Mind to place also the single elements!
In case of a curved setup, use a chord to check
the alignment as described above.
If the row needs to be fixed to the wall (see table
of fixation levels), fix the modules to the already
attached wall fixation brackets.!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
57
