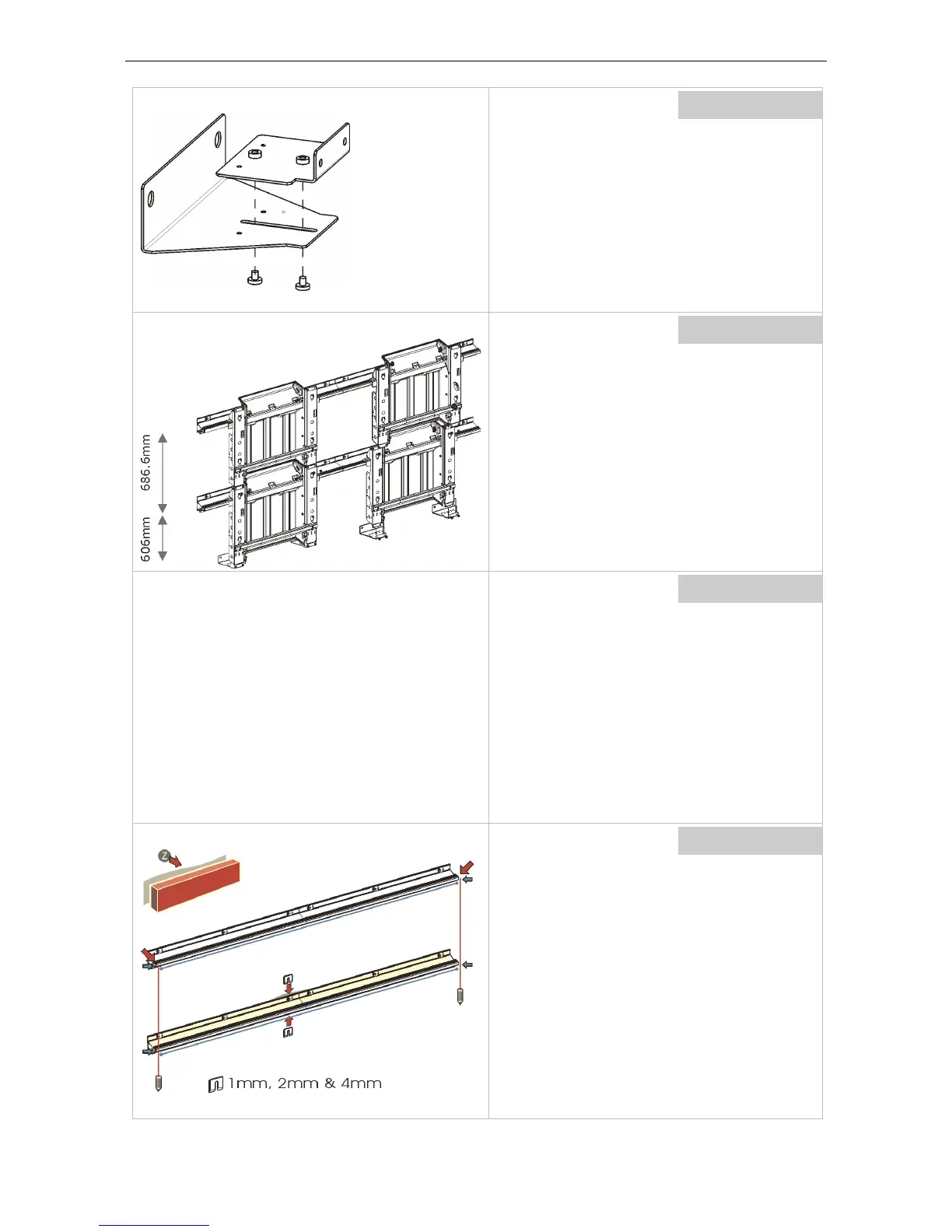

6. Mechanical setup of display walls with wall mount solutions
Wall mount
The bottom row gets additional fixed using a
left and a right support bracket per system.
This bracket consists of two plates and thus also
provides an alignment facility.
The vertical position of the bottom brackets de-
fines the screen height.
The position of the aluminum profile of the bot-
tom row is 606mm above screen height. (= dis-
tance between bottom bracket and first alumi-
num profile)
The distance between the alu
adjacent rows 686.6mm (NSL5521), 684.2mm
(OVD/KVD/IVD) or 682.2mm (HVD).
Wall mount
HVD displays are two millimetres less in width
than OVD/KVD/IVD displays.
Therefore the wall mount profiles protrude
some millimetres on the left (or right, or on
both sides, depending on your preference and
the number of installed displays in a row)
Wall mount
It is obvious that such installations require flat-
ness of the wall.
The standard KVD Wall Mount package is
equipped to cover differences in the building
wall flatness of maximum 7mm.
When bigger differences occur they should be
taken care of by the building-, or facility man-
ager.
If not respected they can have an impact on the
proper functioning of the product as well as on
the overall image quality.
