6. Mechanical setup of display walls with wall mount solutions
Wall mount
14

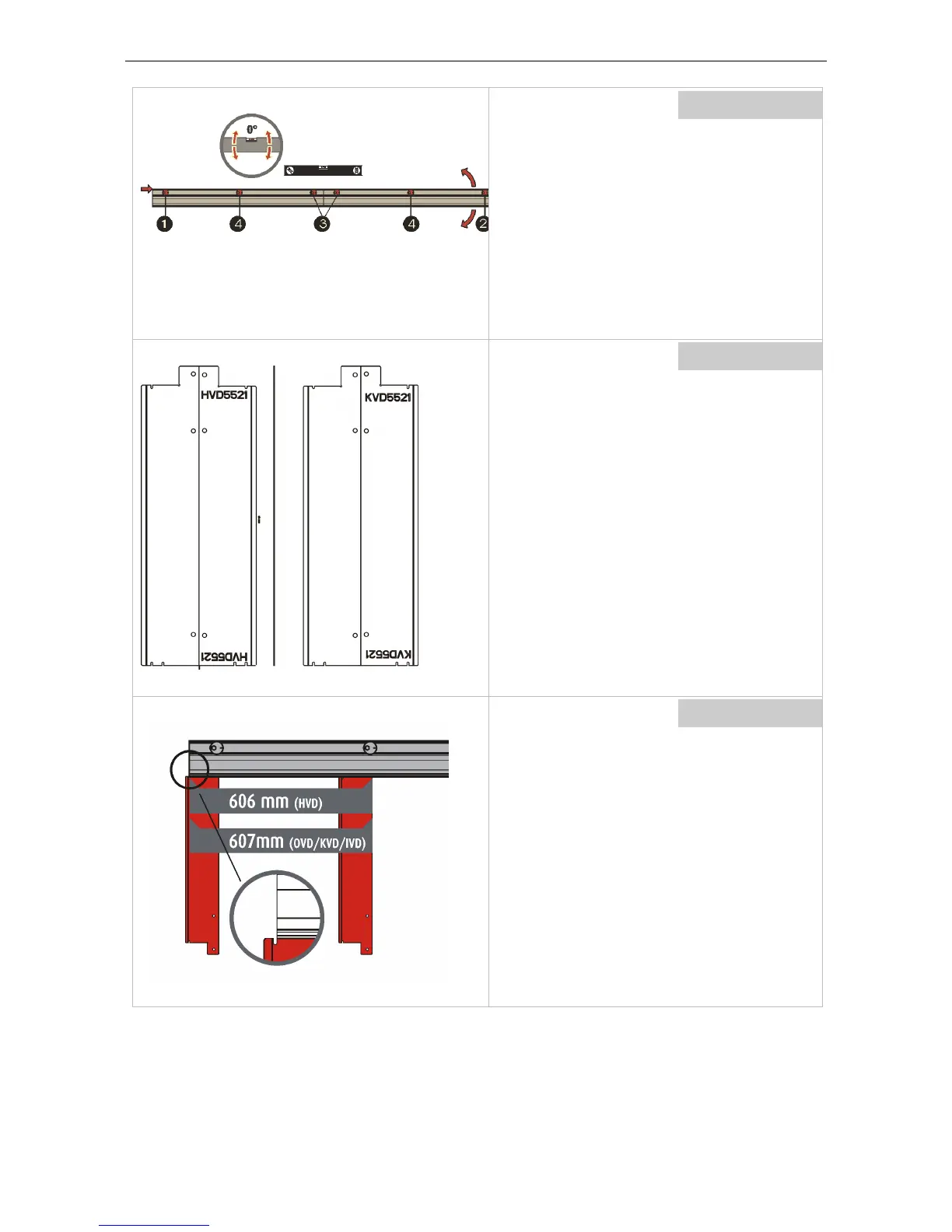

The anchors need to be fixed according the se-
quence indicated in the picture.
In case the profiles are not pre-assembled, do
not fix the anchors tightly until the adjacent
profile has been attached and fixed, too.
Check the alignment!
Wall mount
15
When the top most aluminum profile has been
fixed and aligned, use the wall mount drill
R804159 to find the position of the holes for
the row below.
The wall mount drill has two cut-outs on top
and bottom for finding the correct horizontal
position.
Its hole on bottom defines the position of the
drilling hole for the row.
Make sure to use it correctly! Mind the imprints
KVD (for OVD/KVD/IVD) and HVD!!
Wall mount
16
Apply the jig.
The left edge of the
aluminum profile is aligned
to the "nose".
Mark the left hole for fixation of the lower alu-
minum profile.
Subsequently shift the jig to the right and
apply
the jig with a distance of 607mm between the
right edge of the jig and the left edge of the
profile.
Mark the mid hole for fixation of the lower
aluminum profile.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
