Barco LCD 5521 V4 User Manual

6. Mechanical setup of display walls with wall mount solutions
Wall mount
17

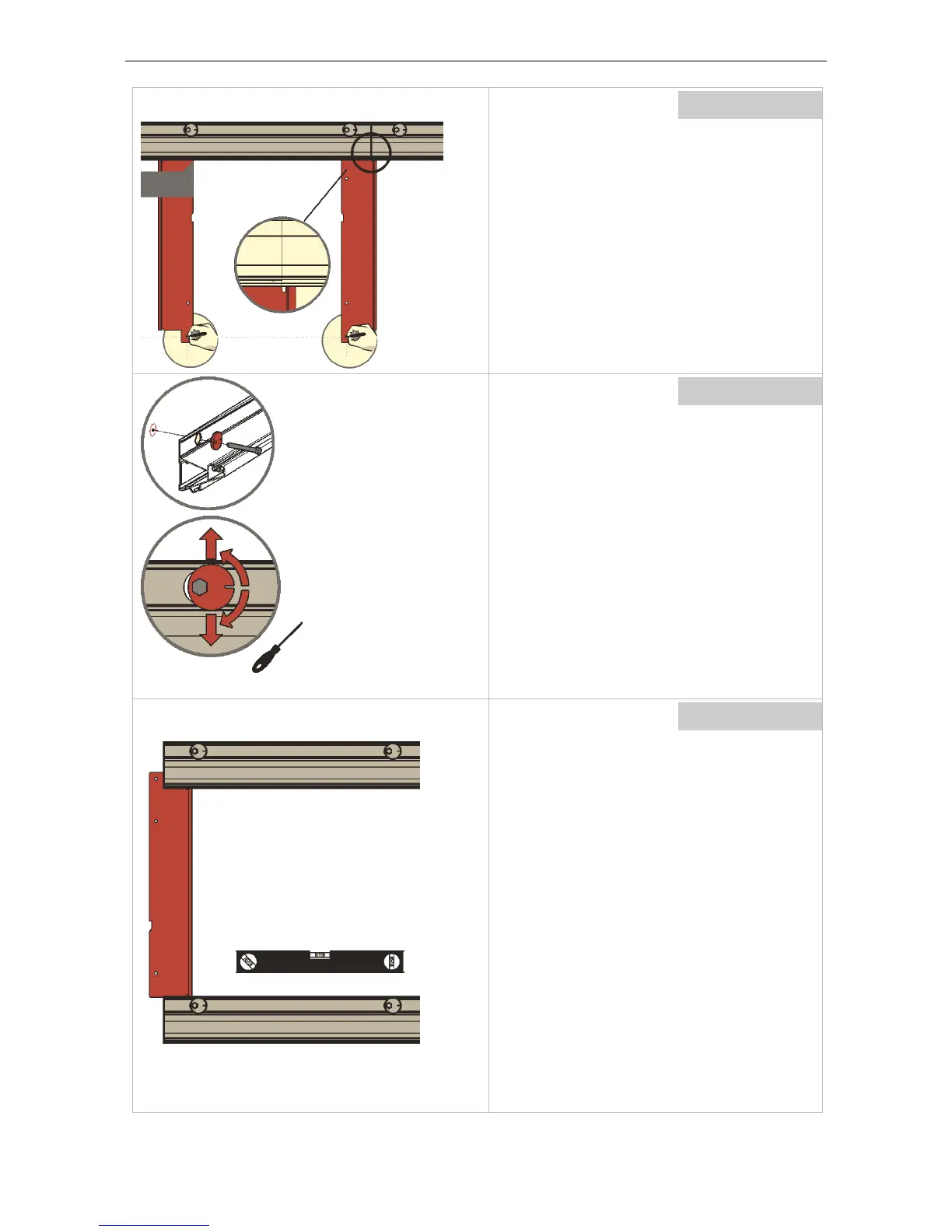

To find the position of the right hole for fixation
of the lower profile proceed like this:
Rotate the jig vertically.
The right edge of the aluminum profile gets
aligned to the "nose".
Mark the right hole for fixation of the lower
aluminum profile.
Wall mount
18
Drill the holes for the lower profile and fix it
slightly using anchors and wall mounting
plates.
Wall mount
19
Apply the jig on the left (the edge of the upper
aluminum profile needs to be in the cut-out of
the jig) and check the distance between the
aluminum profiles!
Check the leveling!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
