Barco LCD 5521 V4 - Page 74

6. Mechanical setup of display walls with wall mount solutions

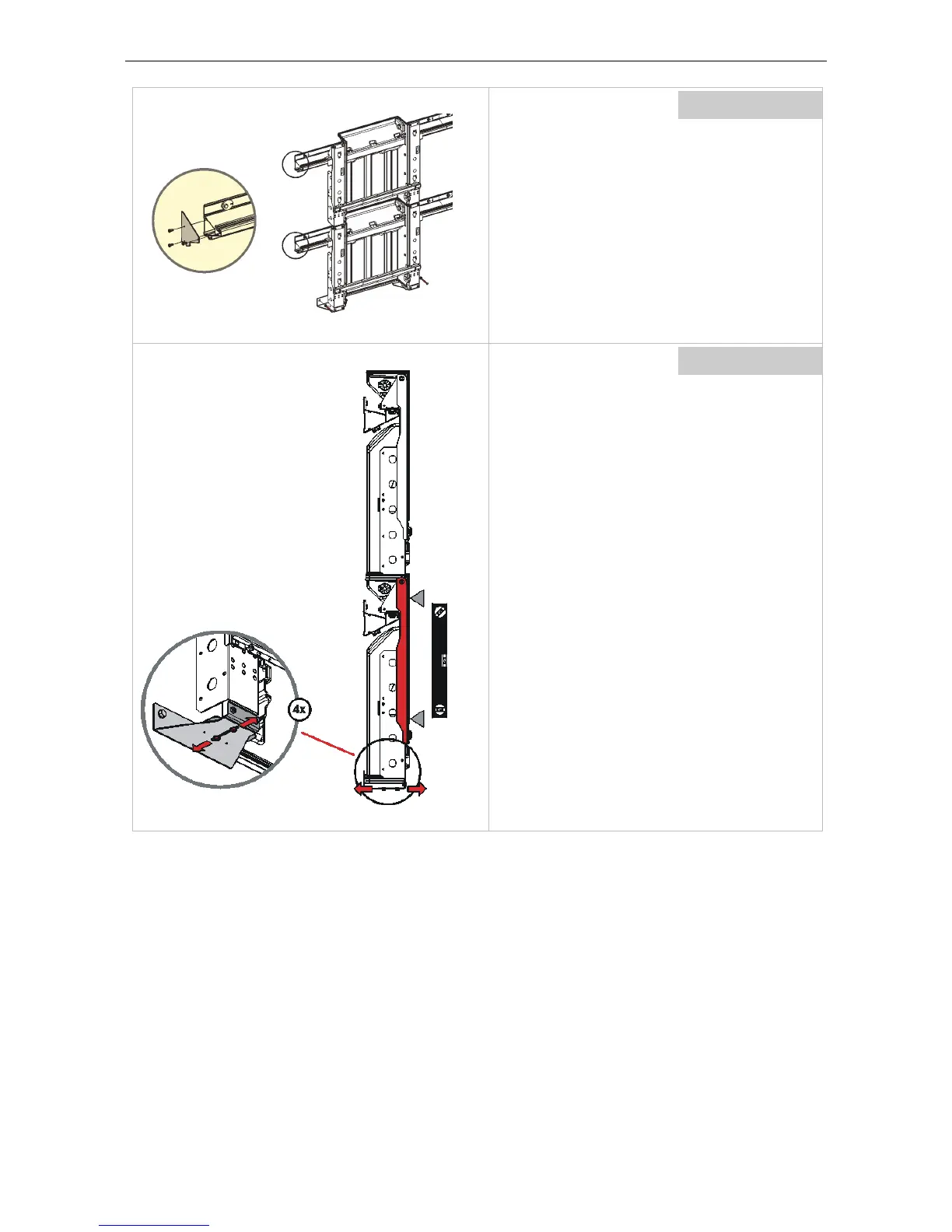

Wall mount
39
Optional:
Apply the caps to the left and right edges of
the aluminum profiles.
Wall mount
40
Check the alignment!
If required, shift the frame on the bottom
bracket.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
