Barco LCD 5521 V4 User Manual

6. Mechanical setup of display walls with wall mount solutions
Wall mount
35

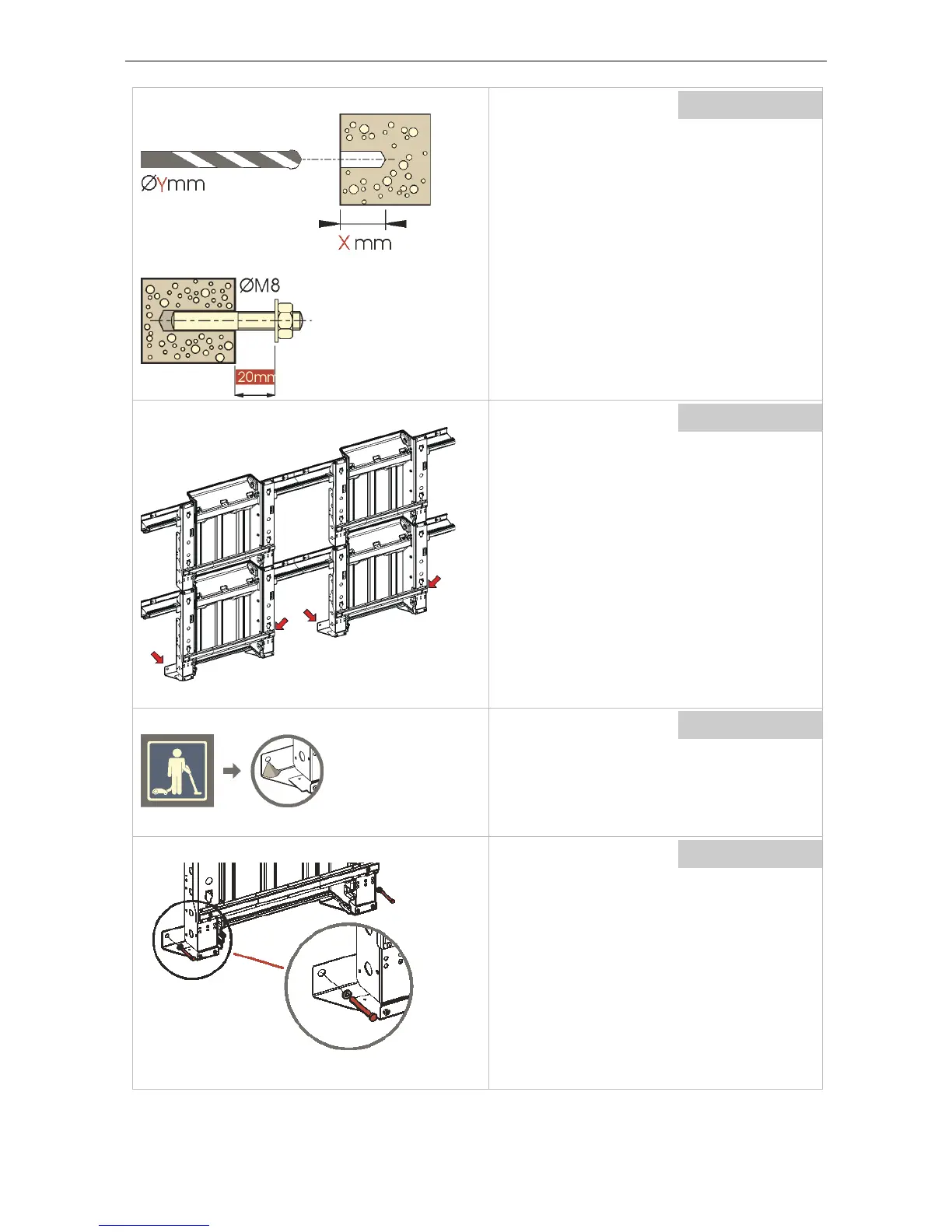

Drill the holes for the bottom brackets
The values X and Y are defined by the type of
anchor.
The anchors are not part of the delivery but
need to be selected according the type of the
building wall and the required pull-out force.
Anchor interface:
diameter M8
clamp range 20mm
pull-out force 1.2kN
Wall mount
36
Drill the holes.
Wall mount
37
Use a vacuum cleaner and remove the drilling
dust.
Wall mount
38
Fix the bottom brackets.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
