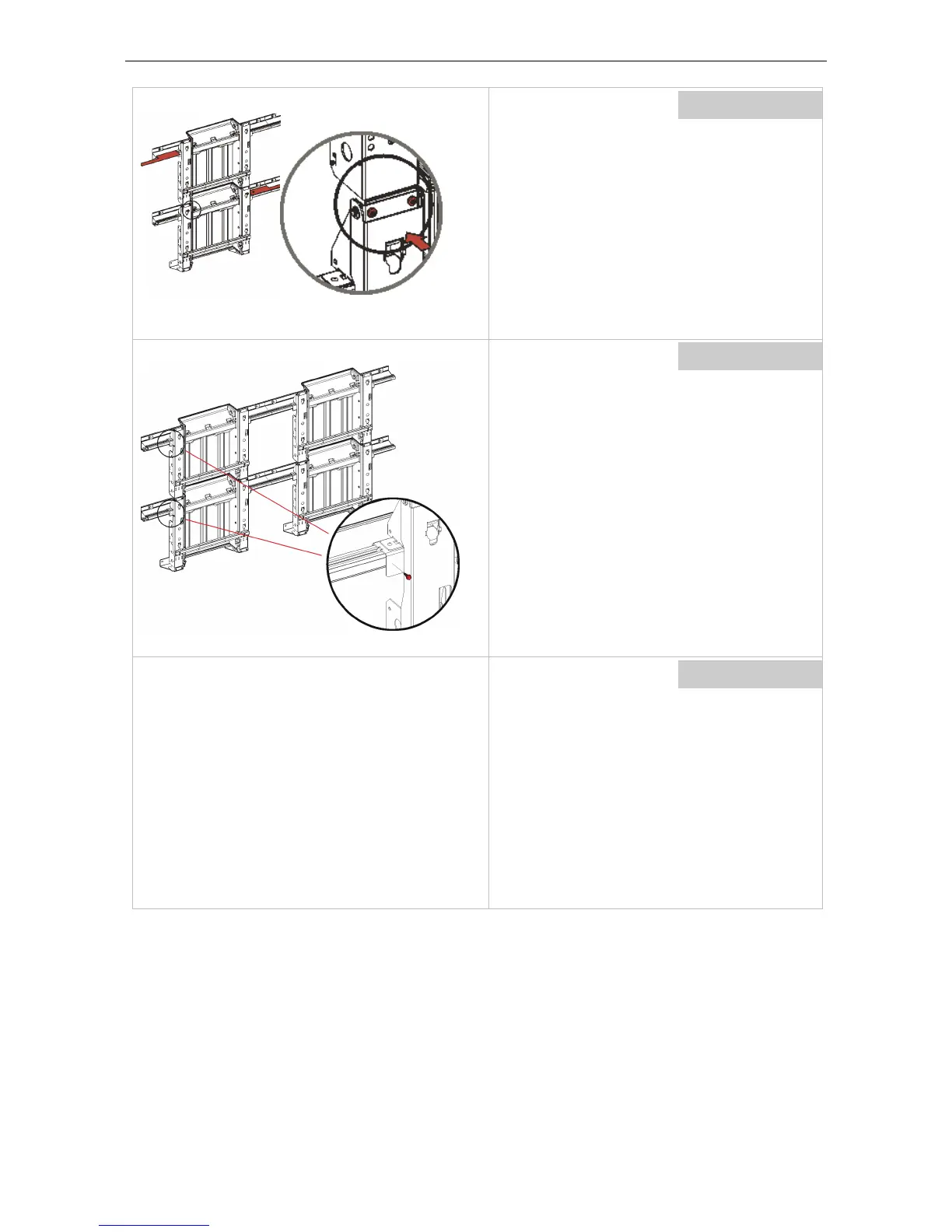

6. Mechanical setup of display walls with wall mount solutions
Wall mount
32
Fix each frame with 2x 2 screws M6x7
B362666.
Wall mount
33
Also ground the second row using a screw
M4.8x16, G2059790.
The screw needs to be applied to the most left
frame (seen from front).
Wall mount
34
Proceed accordingly until all frames are fixed to
the aluminum profiles.
