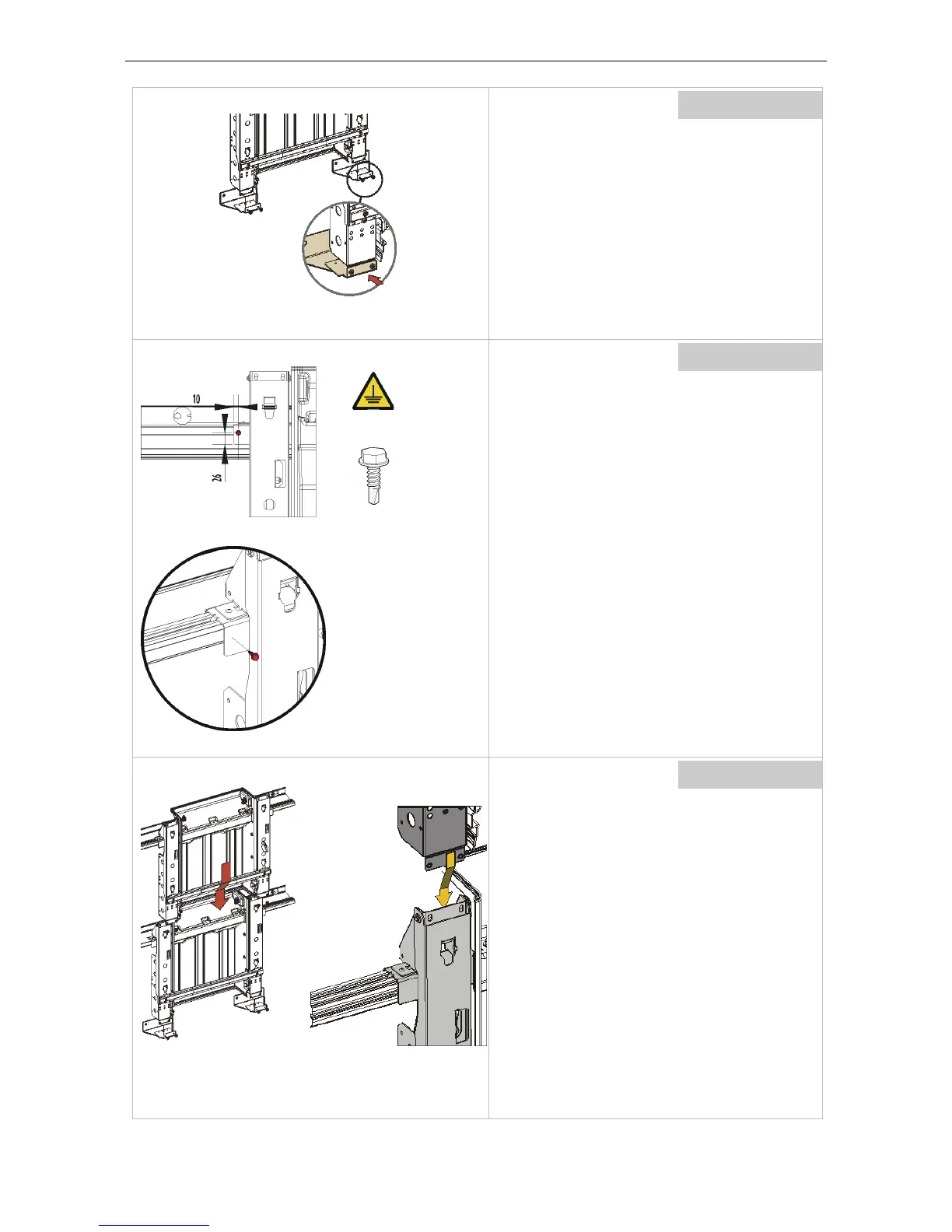

6. Mechanical setup of display walls with wall mount solutions
Wall mount
29
Mount the bottom brackets-
Fix each of it with two screws M6x7 B362666.
Wall mount
30
Ground the row using a screw M4.8x16,
G2059790.
The screw needs to be applied to the most left
frame (seen from front).
Wall mount
31
Hang in the frames of the second row.
When sliding the top frame onto the bottom
frame, you have to push the "ears" of the top
frame back to make them slide into the bottom
frame.
