Barco LCD 5521 V4 User Manual

6. Mechanical setup of display walls with wall mount solutions
Wall mount
26

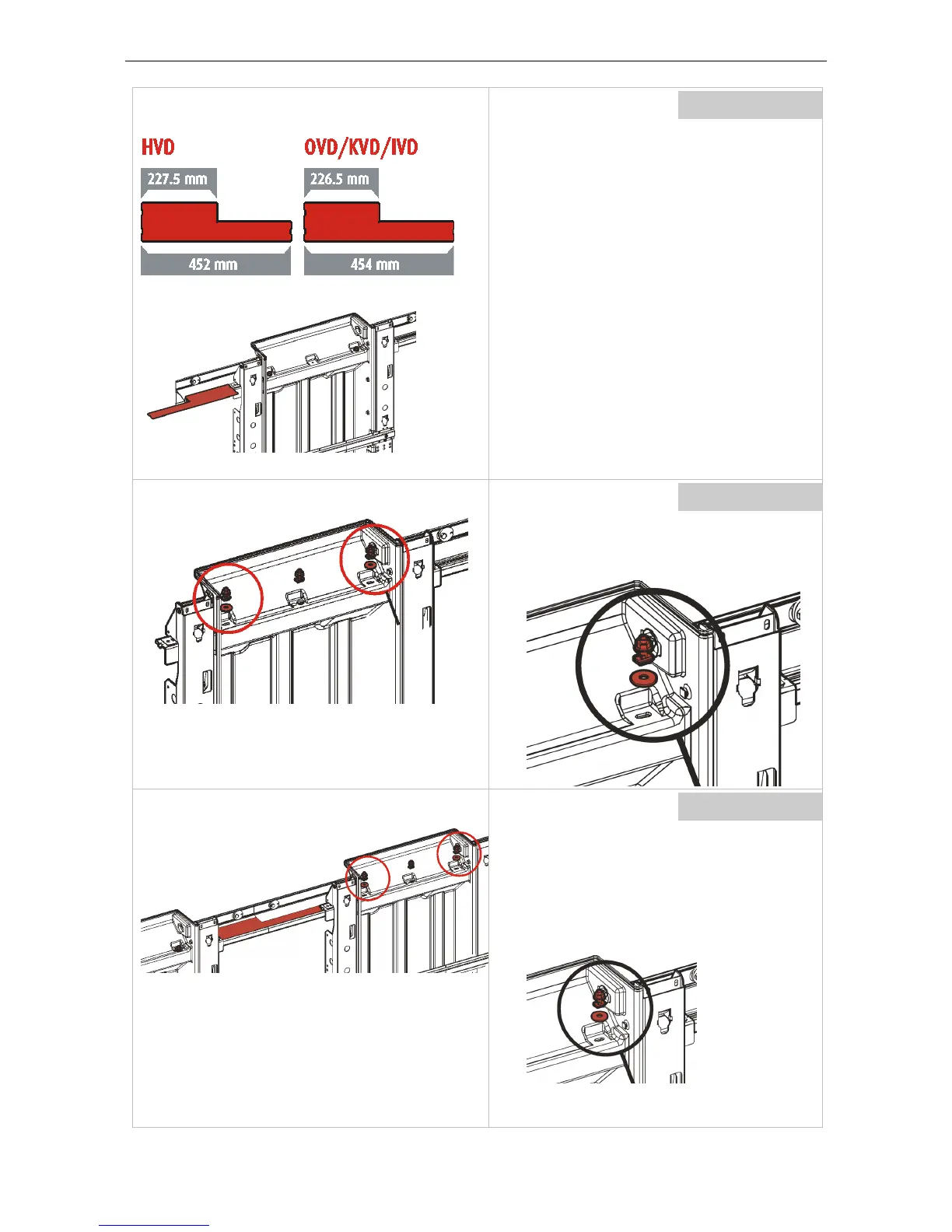

Start with the bottom row!
Apply the control jig to find R804158 the posi-
tion of the most left frame on the aluminum
profile.
Wall mount
27
Fix the frame with 3 hammer bolts.
Left and right hammer bolt: Make sure to apply
a washer for proper grounding!
Wall mount
28
Apply the control jig to find the position of the
adjacent frame of the same row.
Hang the frame in.
Fix it with 3 hammer bolts
Left and right hammer bolt: Make sure to apply
a washer for proper grounding!
Proceed until all frames of the bottom row are
fixed.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
70
