Barco LCD 5521 V4 User Manual

6. Mechanical setup of display walls with wall mount solutions
Wall mount
23

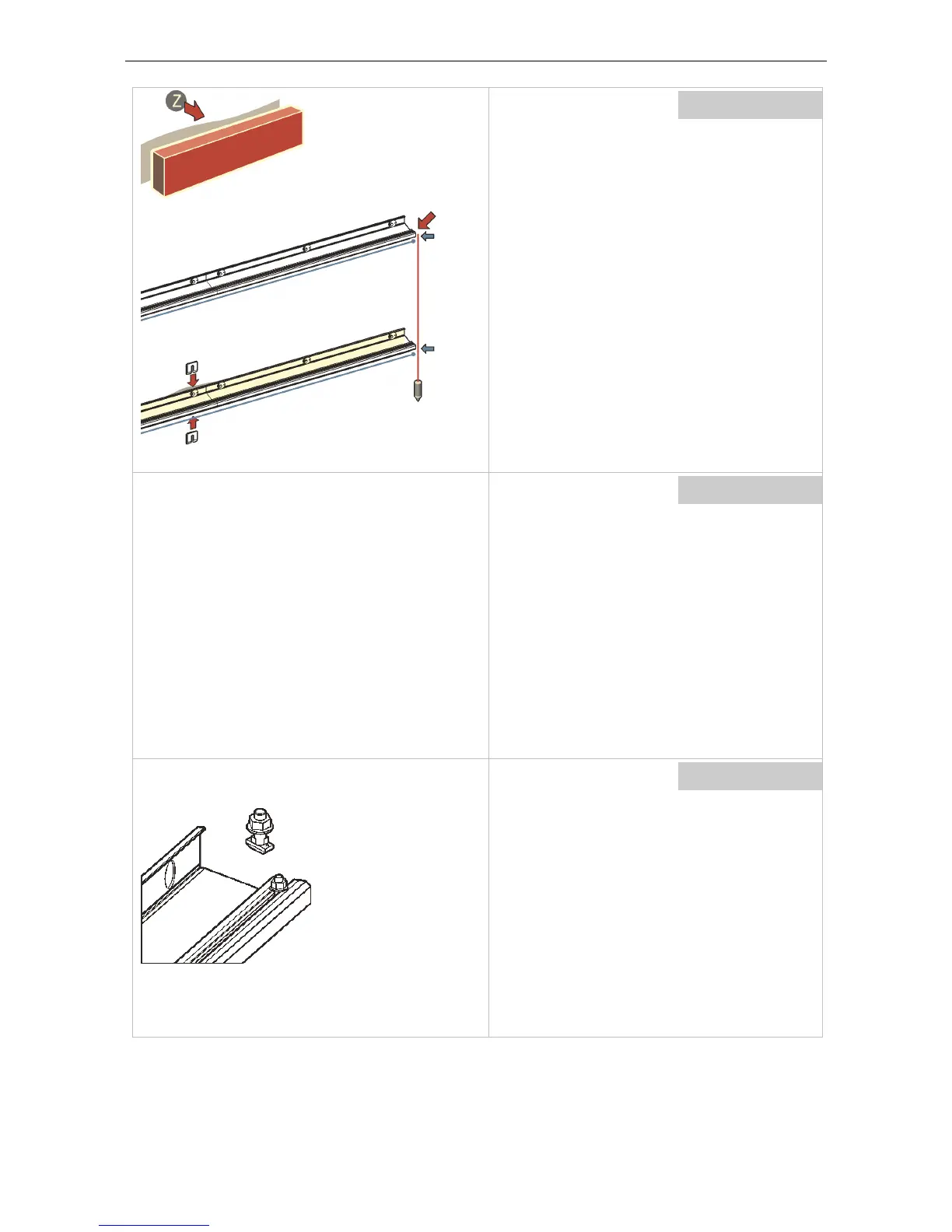

On the right, use a plumb line and check the z
alignment (distance to the wall)
Wall mount
24
Check the distance!
Check the z-alignment.
Check the leveling!
When the alignment is perfect, tighten the an-
chors one by one.
Start with the most left one,
Subsequently fix the most right one
Next fix the second left one
Next the second right one
And so on, always alternating left/right.
Wall mount
25
The frames will be fixed via 2 hammer bolts to
the aluminum profile
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
