K5902108-04 Coronis Fusion 4MP / 6MP 11
2.2 Unlocking the height mechanism
About
In the factory, the height-positioning system in the display stand is locked with a red hook to prevent damage
during transportation. You’ll have to remove this hook before adjusting your display height position.

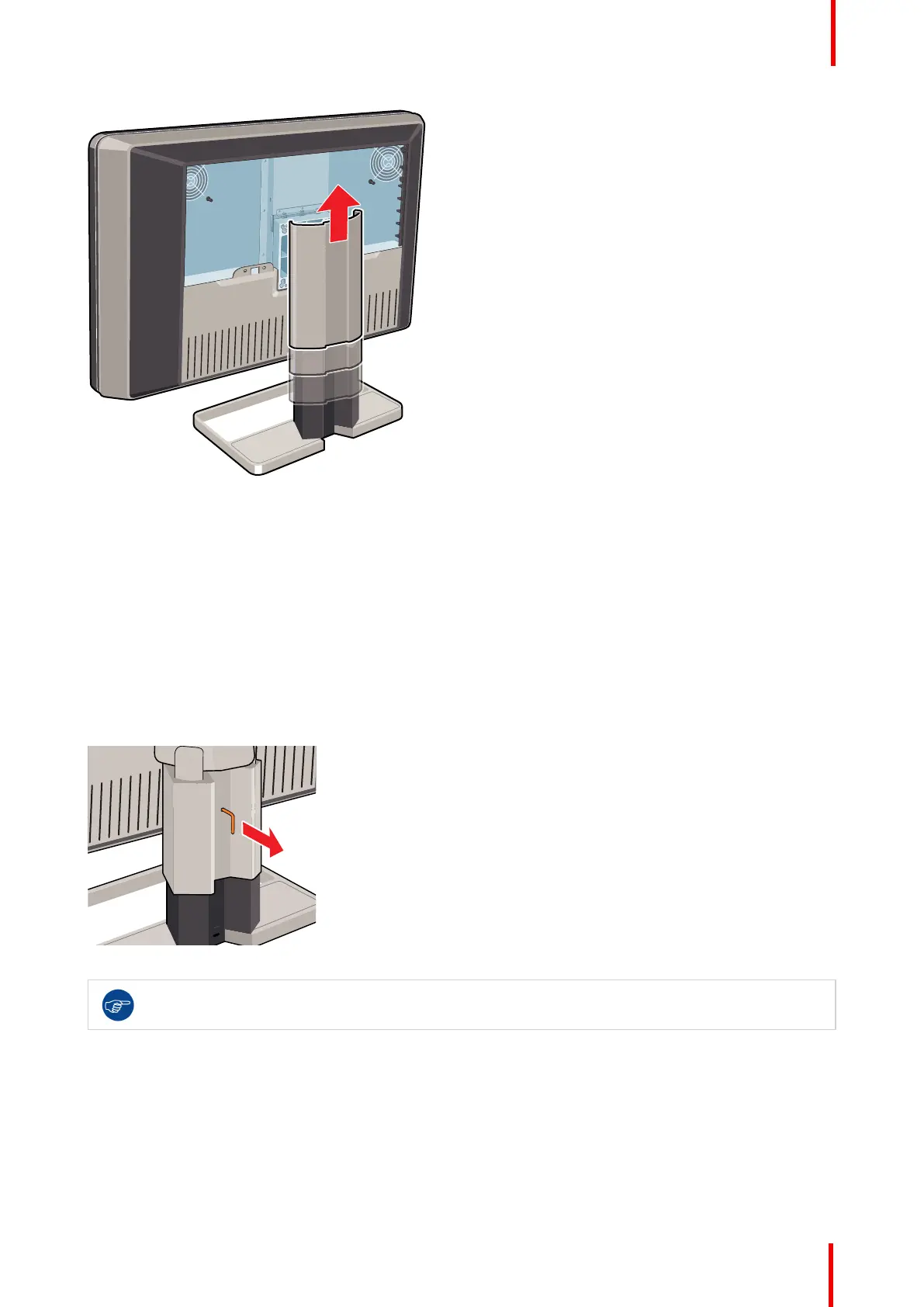

To remove the hook:
1. Position the display with its rear side facing you.
2. While holding the display panel pushed down, pull out the red hook in the display stand.
To retain the hook for possible future transportation, insert the short, red end of the hook back into
the stand of your display.
2.3 Adjusting the display position
To adjust the display position
After unlocking the height-positioning system of your display, you can adjust the display position.
1. Tilt, swivel, raise and lower the display as desired.
Display installation
