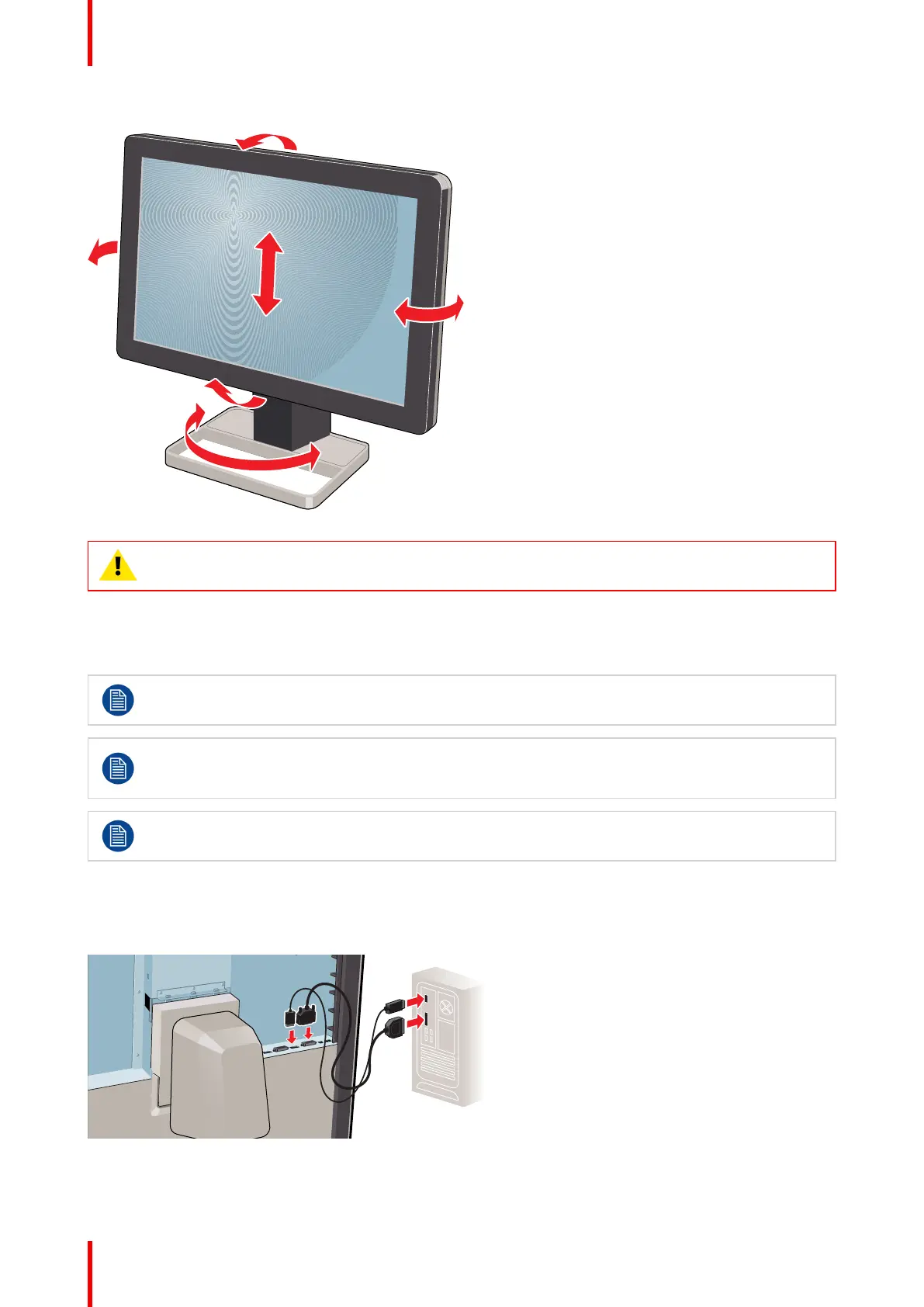

CAUTION: Do not try to pivot your display when attached to the stand. Trying to do so could cause
serious damage to your display and its stand.
2.4 Connecting the signal cables
To get access to the connectors, remove the connector compartment cover. See “Removing the
covers”, page 10.
Each side of your display can have a different video input connected (one side can have DVI
connected while the other side has DisplayPort connected). Both display sides can have the same
video input connected as well but only one video input is allowed on each side of your display.
Please connect all your displays to their workstation with a USB cable to ensure undisturbed
communication and to make optimal use of MediCal QAWeb and the Barco intuitive workflow tools.
To connect the signal cables to the display:
1. Connect one head of the display controller to the DVI 1 or DisplayPort 1 connector with one of the supplied
DVI or DisplayPort cables.
2. Connect another head of the display controller to the DVI 2 or DisplayPort 2 connector with one of the supplied
DVI or DisplayPort cables.
