K5902108-04 Coronis Fusion 4MP / 6MP 7
4. Menu key
5. Standby key
6. Power LEDs
7. Ambient light sensor
The key icons are displayed above the keys, adapted to the function that it is used for (menu
dependent). See “Navigating through the OSD menus”, page 21.
1.2.2 Back
Overview

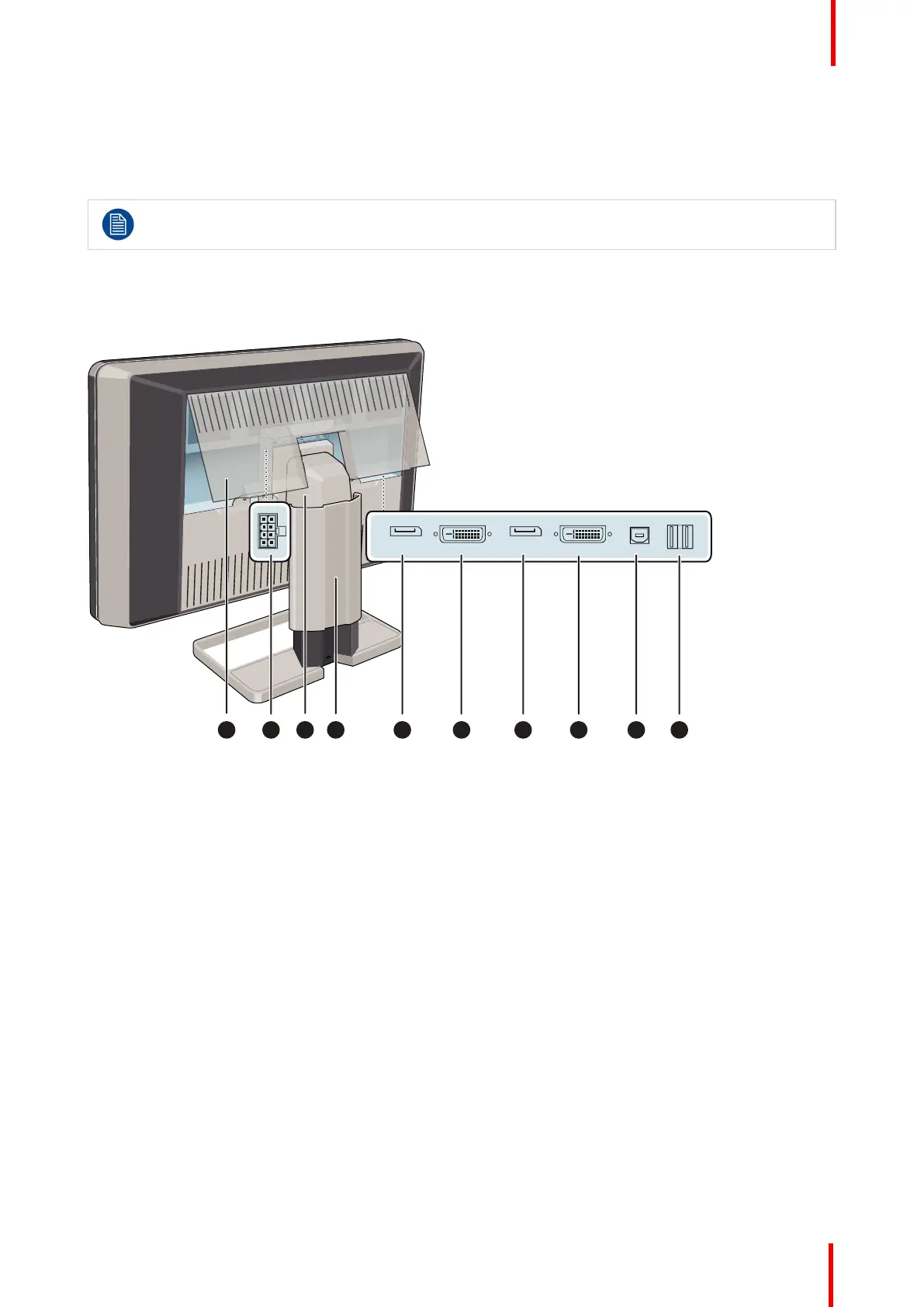

Image 1-2
1. Connector compartment cover
2. +24 VDC power input
3. Neck cover
4. Display stand cover
5. DisplayPort 2 video input
6. DVI 2 video input
7. DisplayPort 1 video input
8. DVI 1 video input
9. USB upstream connector
10.USB downstream connectors
