3. Display installation
1
2

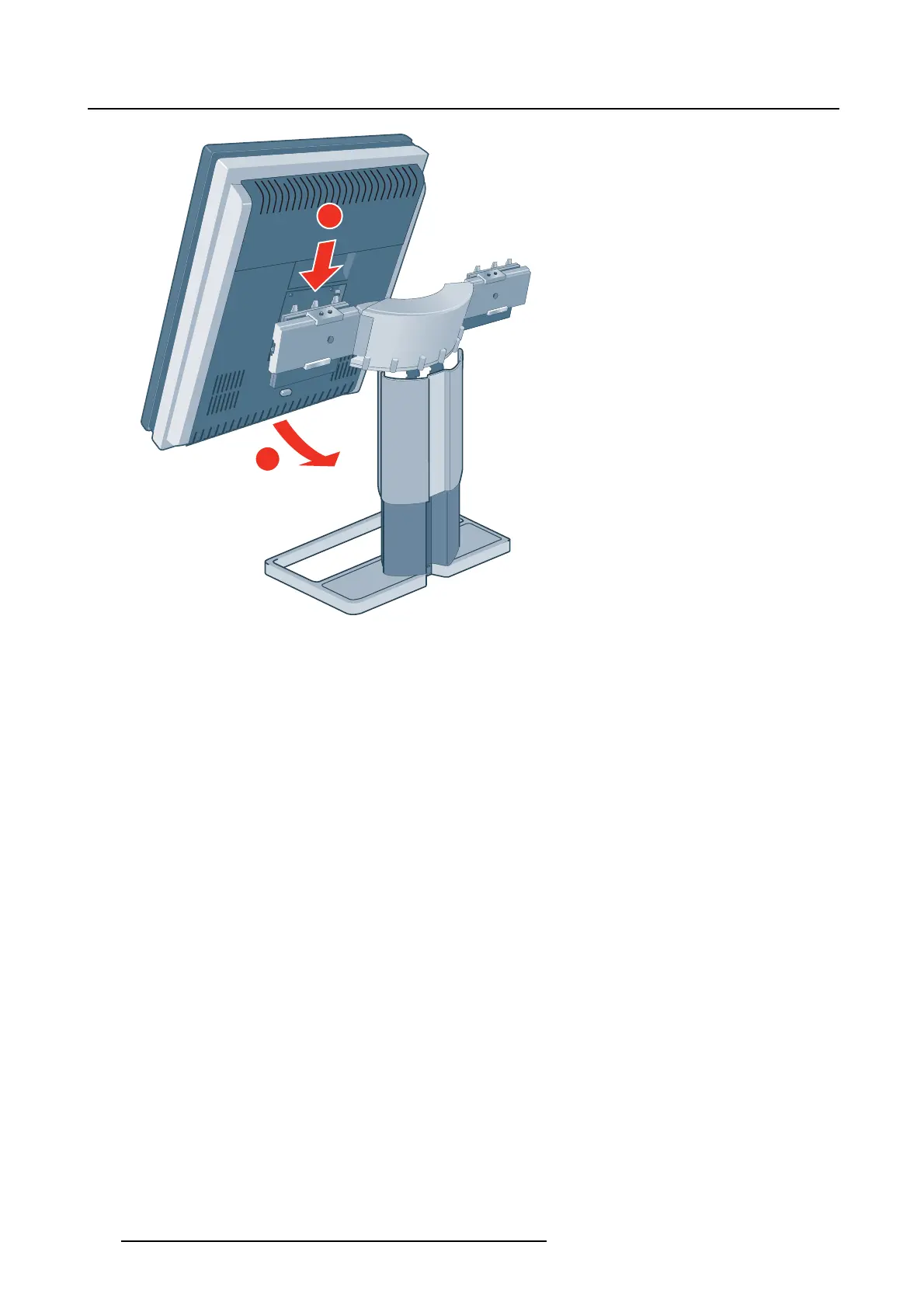

3. Hold the display slightly angled with the logo downwards and position the top of the mounting anchor,
at the back of the display, perfectly aligned on the top of the mounting clamp of the foot.
4. Push the downside of the display gently backwards u
ntil the mounting clamp locks into the mounting
anchor.
5. Verify that mounting clamp and mounting anchor are perfectly fitting and that the display is firmly
mounted.
6. Repeat step 2 to 5 for the second display.
Caution: Limit transportation distances of the mo
unted displays a nd foot system.
7. Pull out the foot lock clip.
8. Retain the clip for possible further transportations.
9. Now that the height-positioning is unlocked, you can adjust the position of the displays.
10
