3. Display installation

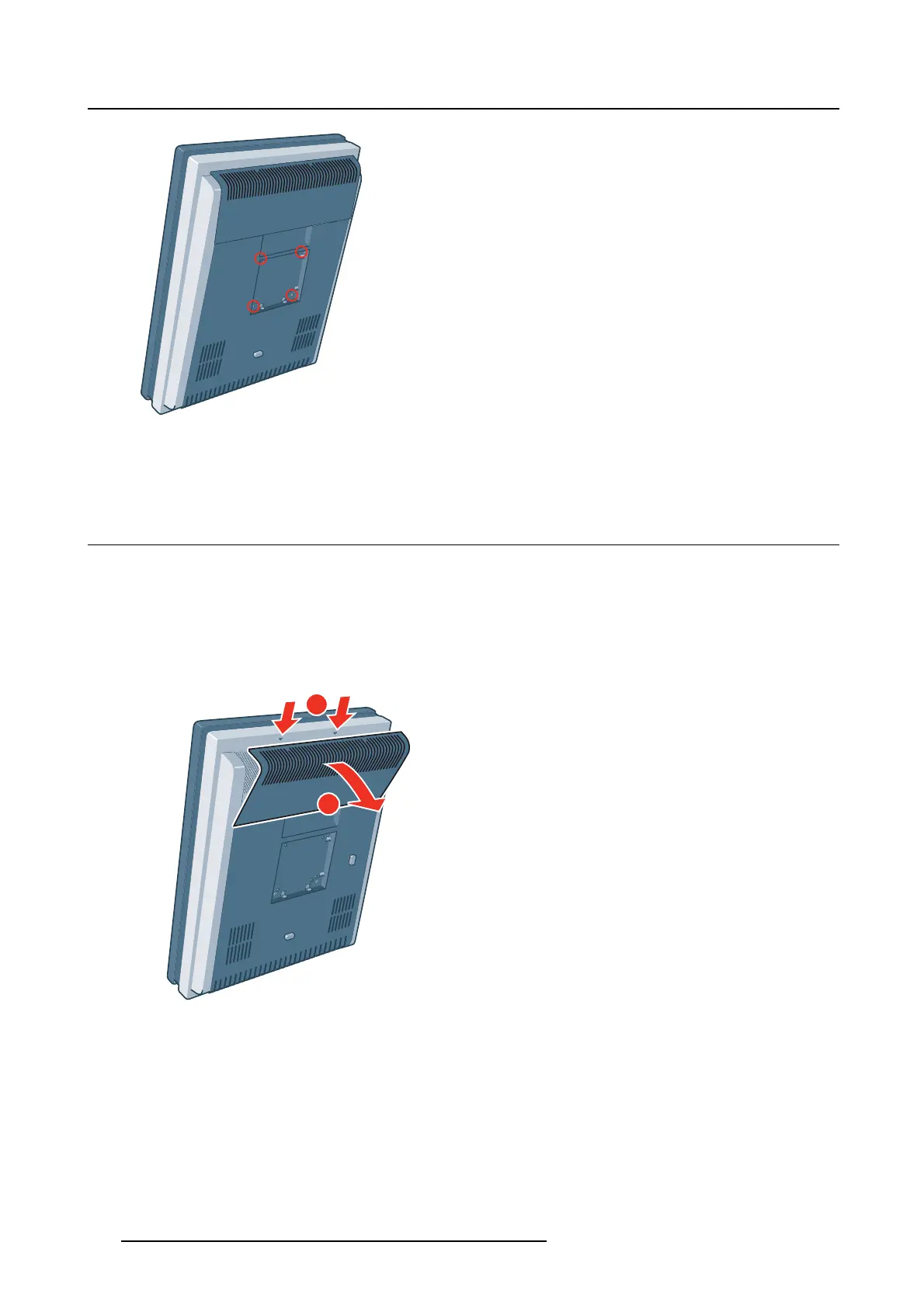

2. Attach the display firmly to the VESA mounting bracket with 4 screws M4 x 10 mm. You should mount
the display in portrait position. Landscape position is not supported.
3.3 R emo v ing the covers
Removal of the connector compartment cover
The connector compartment cover should be removed to get access to the connectors. To remove the
connector compartment cover, proceed as follows:
1. Gently push the two lips on top of the cover.
2. Pull the top of the cover slightly away from the display and lif
t the cover upwards.
1
2
Removal o f the cable covers of a single foot
To get access to the cable routing channel of a single foot, the cable covers should be removed. To remove
them, proceed as follows:
1. Remove the tilt & swivel nec
k cover (1). Therefore, first tilt the display panel in upright position. Then
lift and pull backward the neck cover.
2. Also to facilitate cable routing afterwards, open both cable duct covers (2).
12
B4100592 CORONIS 5MP 05/08/2014
