Barco MDSC-1119 Getting Started Guide

Preface
15

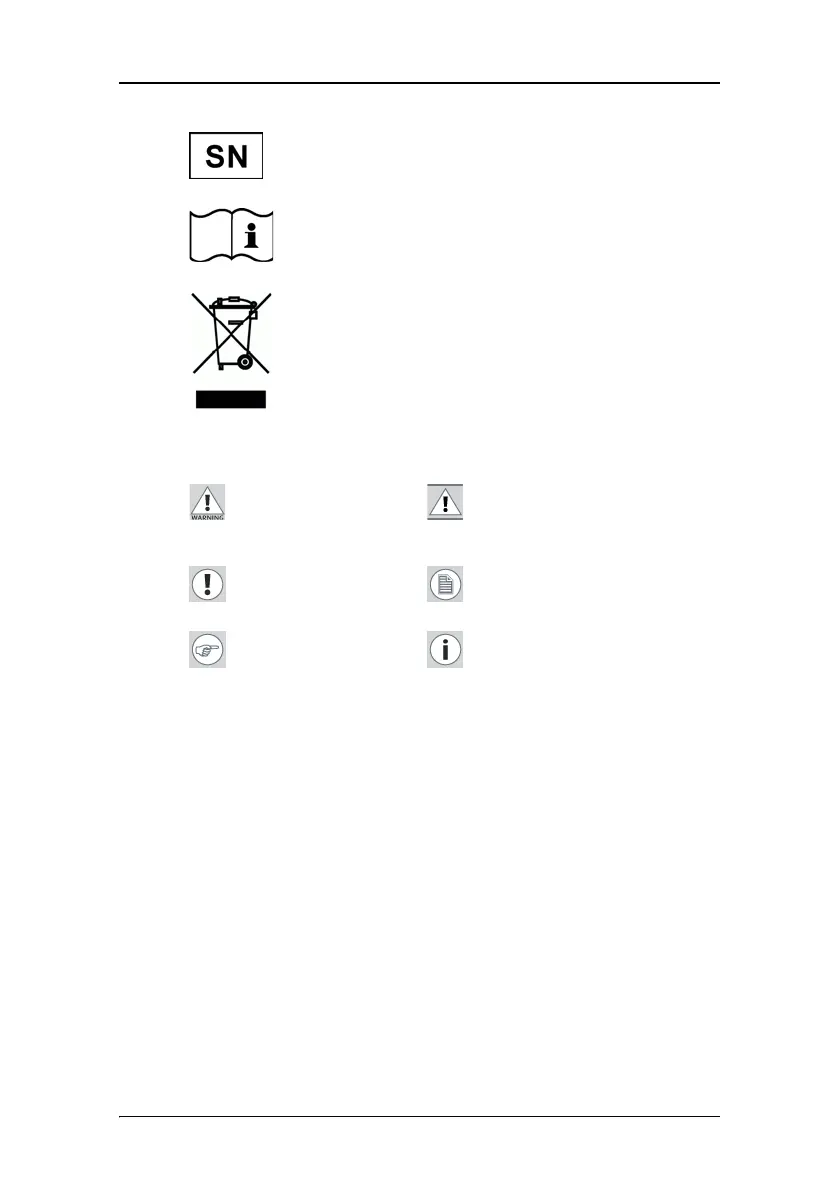

Symbols used throughout the manual:
Indicates the display serial no.
Consult the operating instructions
Indicates this apparatus must not be thrown
in the trash but must be recycled, according
to the European WEEE (Waste Electrical and
Electronic Equipment) directive
Warning: Risk of
injury to human
beings
Caution: Risk of
damage to the
product
Important notice or
remark
Note
Hint, tip Additional
information

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
