Barco MDSC-1119 Getting Started Guide

Introduction
17
Display parts, controls and connectors
Front
The front controls are soft touch keys.
When you touch any of them while no on-screen display (OSD) is on the
screen, the front illumination is switched on for a few seconds.
When you touch a key again while the illumination is on, the function of
the key is executed.

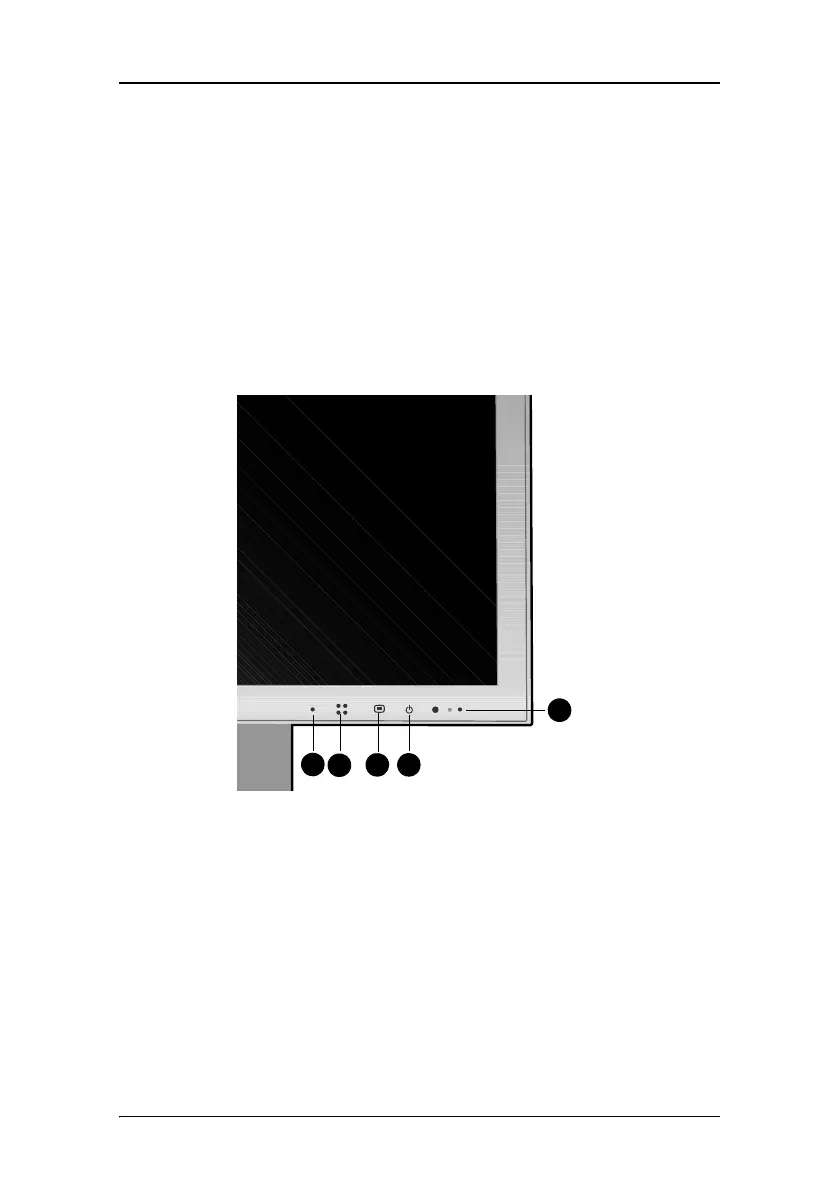

Figure 1: Front view
1. Left navigation key
To move up in menus and decrease values in the OSD.
When Quick Input Selection is enabled (see below), this key
selects the previous input.
2. Right navigation key
To move down in menus and increase values in the OSD.
1 2 3 4
5

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
