Barco MDSC-1119 Getting Started Guide

Technical information
32
Technical information
Connector pin assignments
D-Sub 15 connector (analog video):

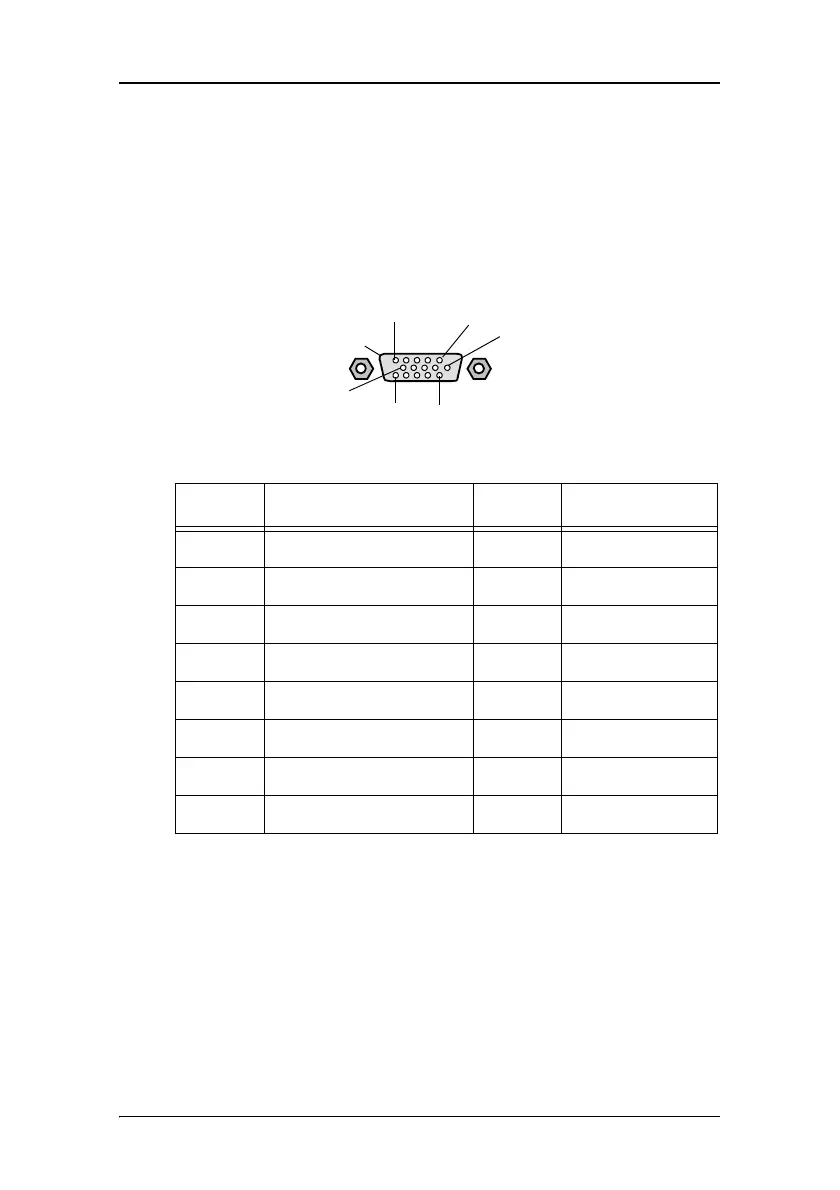

Figure 9: D-Sub 15 pin layout
Pin no. Signal Pin no. Signal
1Red in 9DDC 5V IN
2 Green in 10 VGA PRES
3 Blue in 11 NC
4 NC 12 DDC SDA
5GND 13HS IN
6GND 14VS IN
7 GND 15 DDC SCL
8 GND SG Shielded Ground
5
15 11
10
1
6
SG

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
