Barco MDSC-1119

Technical information
33
DVI connector:

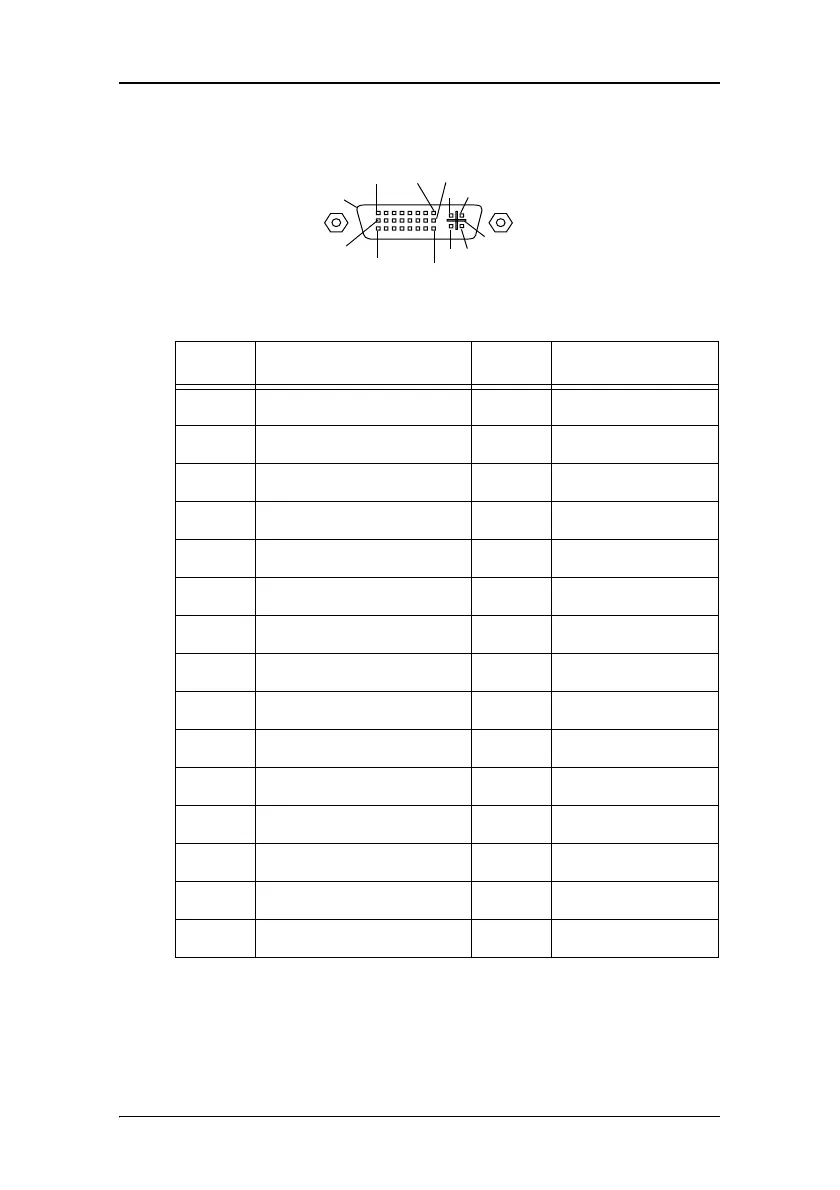

Figure 10: DVI-I connector pin layout
Pin no. Signal Pin no. Signal
1TMDS DATA 2- 16HOT PLUG DETECT
2 TMDS DATA 2+ 17 TMDS DATA 0-
3 GND 18 TMDS DATA 0+
4NC 19GND
5NC 20NC
6 DDC CLOCK 21 NC
7 DDC DATA 22 GND
8Analog VS 23TMDS CLOCK+
9 TMDS DATA 1- 24 TMDS CLOCK-
10 TMDS DATA 1+ C1 Analog R
11 GND C2 Analog G
12 NC C3 Analog B
13 NC C4 Analog HS
14 +5V POWER C5 Analog Ground
15 GND SG Shielded Ground
18
17
24
C3
9
16
C1
C2
C4
C5
SG
