Barco MDSC-1119 Getting Started Guide

Introduction
23

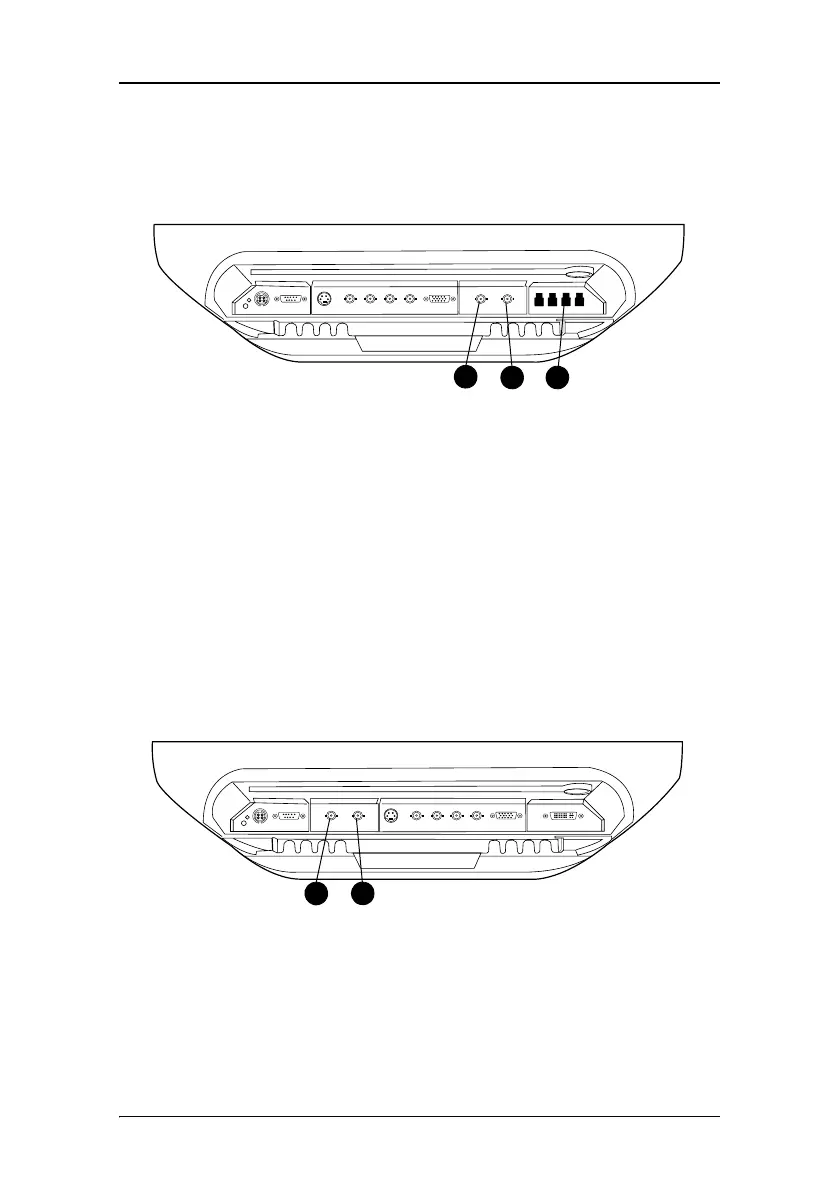

DVI optical & HD-SDI input
The display may be equipped with an optional HD-SDI (high-definition
serial digital input) module and an optical DVI module.
1. Video (HD-SDI or SD-SDI) input.
2. Video output. The signal on the input connector is buffered and
presented here as output.
3. Optical DVI input.
Optional inputs MDSC-2124
HD-SDI input
The display may be equipped with an optional HD-SDI (high-definition
serial digital input) module. This input accepts HD-SDI and SD-SDI
(standard-definition SDI) signals.
1. Video (HD-SDI or SD-SDI) input.
2. Video output. The signal on the input connector is buffered and
presented here as output.
1 2 3
1
2

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
