Barco MDSC-1119 Getting Started Guide

Technical information
42

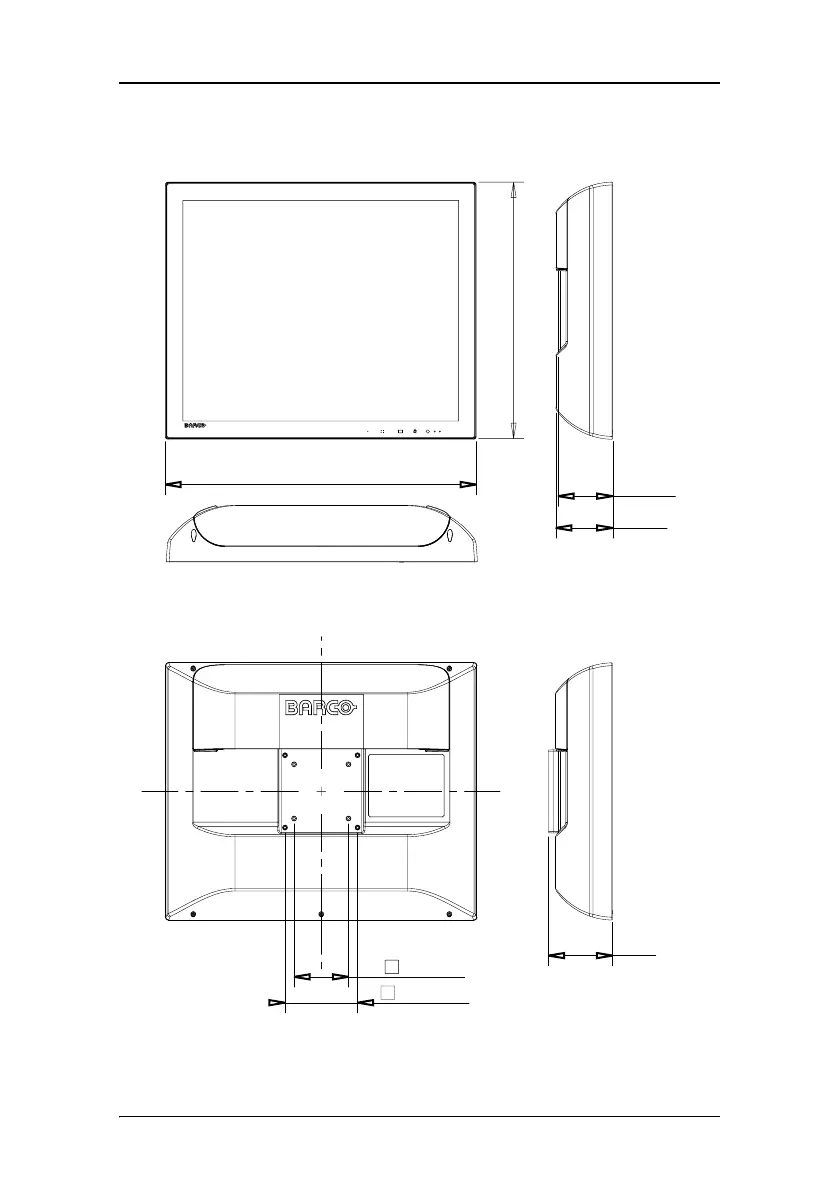

Dimensions MDSC-1119:
CL
CL
CL
Maximum mounting plate dimensions:
114mm x 114mm (4.488"x4.488")
(*) Option: Insulation plate for VESA mount
(No galvanic contact between display and
mounting plate)
CL
428,9 mm (16.886")
354,6 mm (13.961")
(M4) 75 mm (2.953")
(M4) 100 mm (3.937")
(*)
75,2 mm
(2.961")
78,5 mm
(3.091")
88,2 mm
(3.472")

Barco MDSC-1119 Specifications

Display Specifications

technology	TFT Active Matrix LCD
native resolution	1280 x 1024
active screen diagonal	19 inches
active screen area	14.8 x 11.9 inches
pixel pitch	0.294 mm
brightness	300 cd/m2
contrast ratio	700:1
viewing angle	178 degrees

Connectivity and Control

analog video inputs	1x universal 5BNC, VGA (DB15), S-Video (4-pin mini DIN), SDI (BNC)
digital video inputs	DVI-I
communication	RS232 (9-pin D-Sub)

Supported Resolutions and Formats

horizontal scan frequencies	15-100 kHz
vertical scan frequencies	50-120 Hz
bandwidth	165 MHz

Power Requirements

external DC power supply	90-264 VAC
display voltage	20-24 VDC
power consumption	80 Watt max

Physical Characteristics

display dimensions	427 x 356 x 81 mm
display weight	8 kg
mounting	75 & 100mm VESA
