R5906113 /08 UDX 61

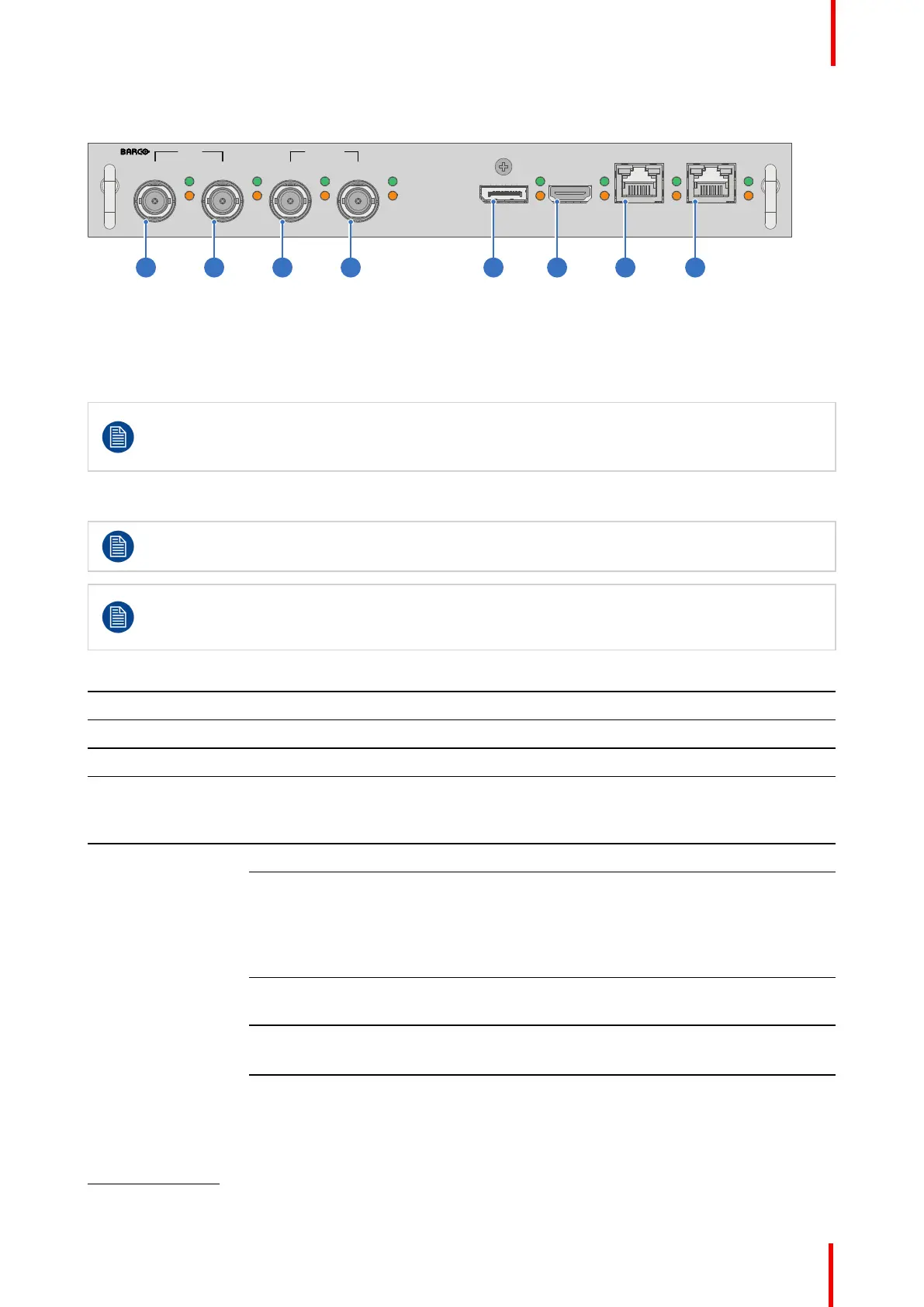

Overview Mark 2 Quad Combo Input board
SEL
SEL
SEL
SEL
SEL
SEL
SEL
SDI IN SDI IN/OUT
SEL
SYNC SYNC
A B C D
SYNC SYNC SYNC SYNC
DP HDBT 2
SYNC
HDMI HDBT 1
SYNC
3G/12G
3G
3G
3G
1 2 3 4 5 6 7 8
Image 6-9
1 Quad SDI channel A: 3G/12G input
2 Quad SDI channel B: 3G input
3 Quad SDI channel C: 3G SDI input + 3G/12G
output
4 Quad SDI channel D: 3G SDI input / output
5 DisplayPort Input
6 HDMI input
7 HDBaseT input 1
8 HDBaseT input 2
The yellow LED lights up when valid input sync is detected.
The green LED lights up when the input is selected.
The green LED lights blink when the input/output is selected and configured as output.
Input specifications – SDI Inputs
For readability, the video timings listed are summarized. For the full list of video timings, refer to the
appendices.
HD-SDI follows the SMPTE 292M standard
3G SDI follows the SMPTE 425M standard Level A
12G-SDI follows the SMPTE ST-2082-1 and ST-2082-10 standards.
Color space YCbCr
Color depth 10 bpc
Chroma sampling 4:2:2
Audio support not supported
For future release • 3D support
• Interlaced support
• Segmented frame support
Video timings
progressive
2
Type Port type Format
HD-SDI Single link
Quad link
• Up to 1920 x 1080 @24 Hz
• Up to 1920 x 1080 @25 Hz
• Up to 1920 x 1080 @30 Hz
• Up to 1280 x 720 @50 Hz
• Up to 1280 x 720 @60 Hz
3G-SDI
“BarcoLink”
Single link
Quad link
1920 x 1200 @50 Hz, @59.94 Hz and
@60 Hz
12G-SDI (Channel
A only)
Single link 3840 x 2160 @50 Hz and @60 Hz
4096 x 2160 @50 Hz and @60 Hz
12G-SDI
“BarcoLink 4k”
(Channel A only)
Single link 3840 x 2400 @50 Hz, @59.94 Hz and
@60 Hz.
Input & Communication
2: For the full list of video timings, see Appendix
