R5906113 /08 UDX70
SEL
SYNC
Opt A
Opt B SFP A SFP B
SEL
SYNC
1 2
3

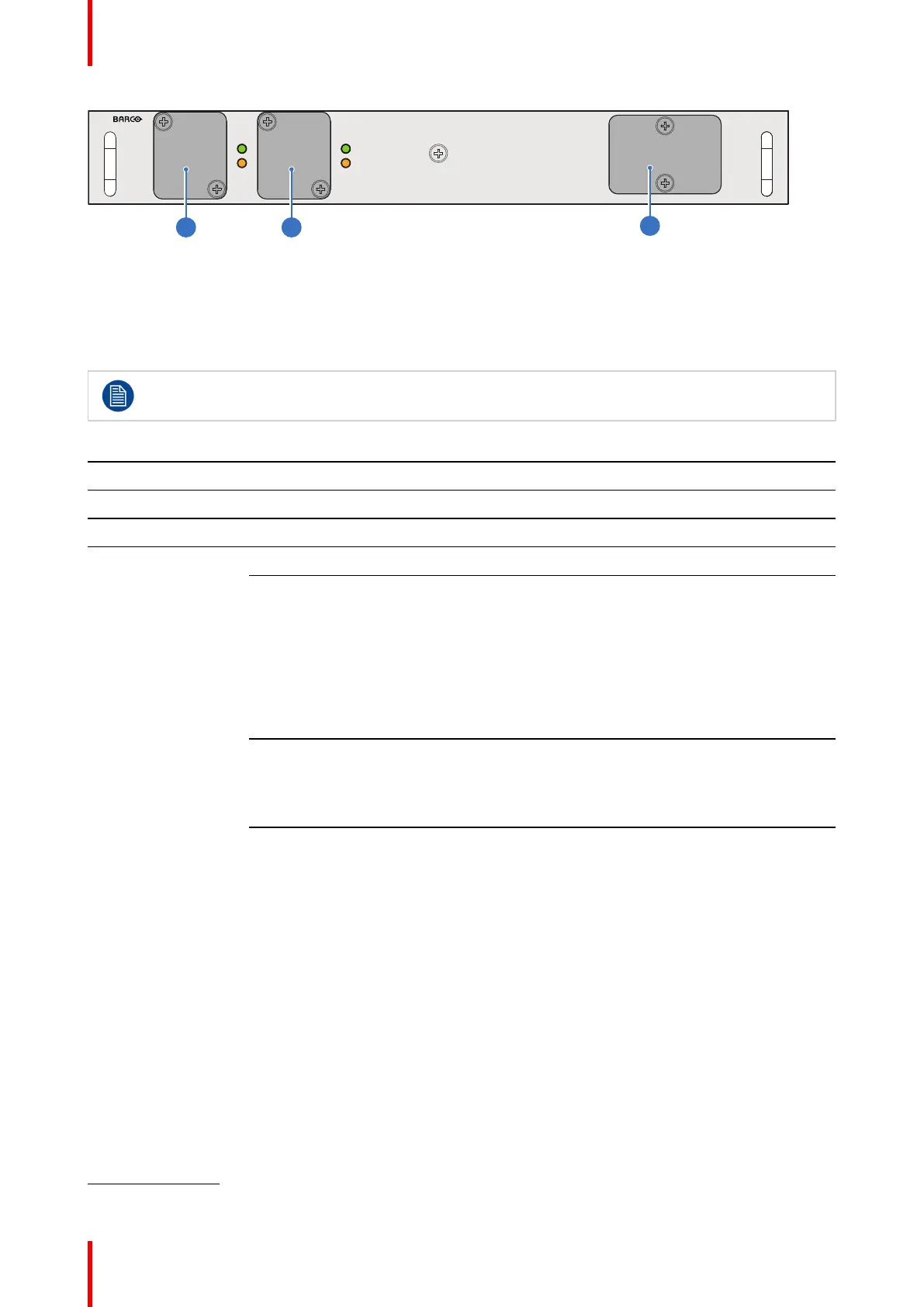

Image 6-12
1 Neutrik Duo optical connector or Neutrik Quad optical connector
2 Neutrik Duo optical connector or Neutrik Quad optical connector
3 2x12G SDI/10GE transceiver
Input specifications
For readability, the video timings listed are summarized. For the full list of video timings, refer to the
appendices.
Color space YCbCr
Color depth 10 bpc
Chroma sampling 4:2:2
Audio support not supported
Video timings
progressive
6
Type Port type Format
HD-SDI Single link • Up to 1920 x 1080 @24 Hz
• Up to 1920 x 1080 @25 Hz
• Up to 1920 x 1080 @30 Hz
• Up to 1280 x 720 @50 Hz
• Up to 1280 x 720 @60 Hz
• Up to 1280 x 720 @24 Hz
• Up to 1280 x 720 @30 Hz
• Up to 1280 x 720 @25 Hz
3G-SDI Single link 1920 x 1080 @50 Hz and @60 Hz
1920 x 1200 @50 Hz, @59.94 Hz and
@60 Hz.
2048 x 1080 @50 Hz and @60 Hz
12G-SDI Single link 3840 x 2160 @50 Hz and @60 Hz
4096 x 2160 @50 Hz and @60 Hz
3840 x 2400 @50 Hz, @59.94 and @60
Hz
Input & Communication
6: For the full list of video timings, see Appendix
