R5906113 /08 UDX82
7
8

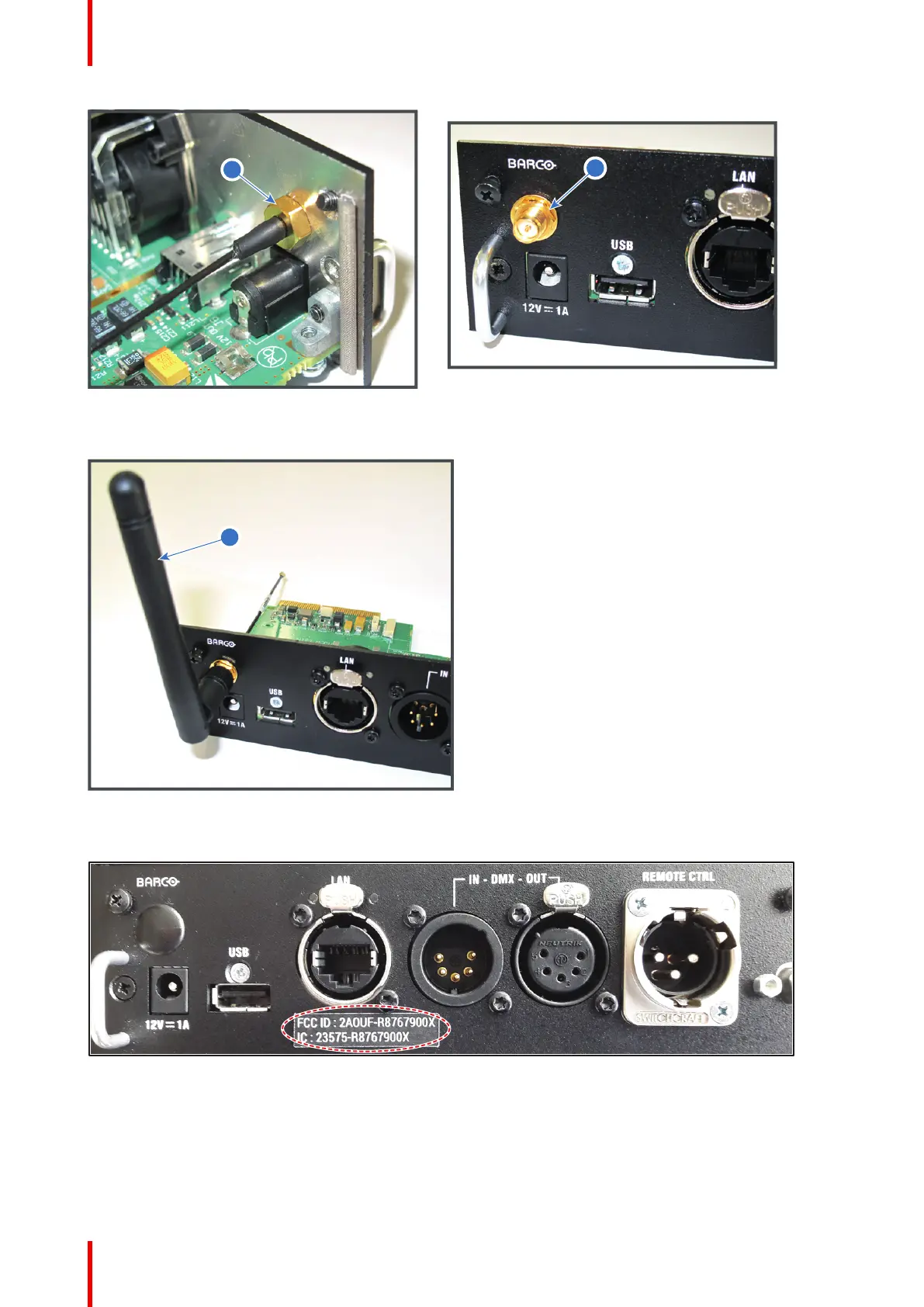

Image 7-6
10. Turn on the antenna (9).
9
Image 7-7
11. Stick the black label with certification numbers on the front plate of the communication board.
Image 7-8: Example of the black label on the communication board
12. Reinsert the communication board.
WiFi & GSM Module
