Barco UDX Installation Manual

R5906113 /08 UDX84
1
Image 7-10

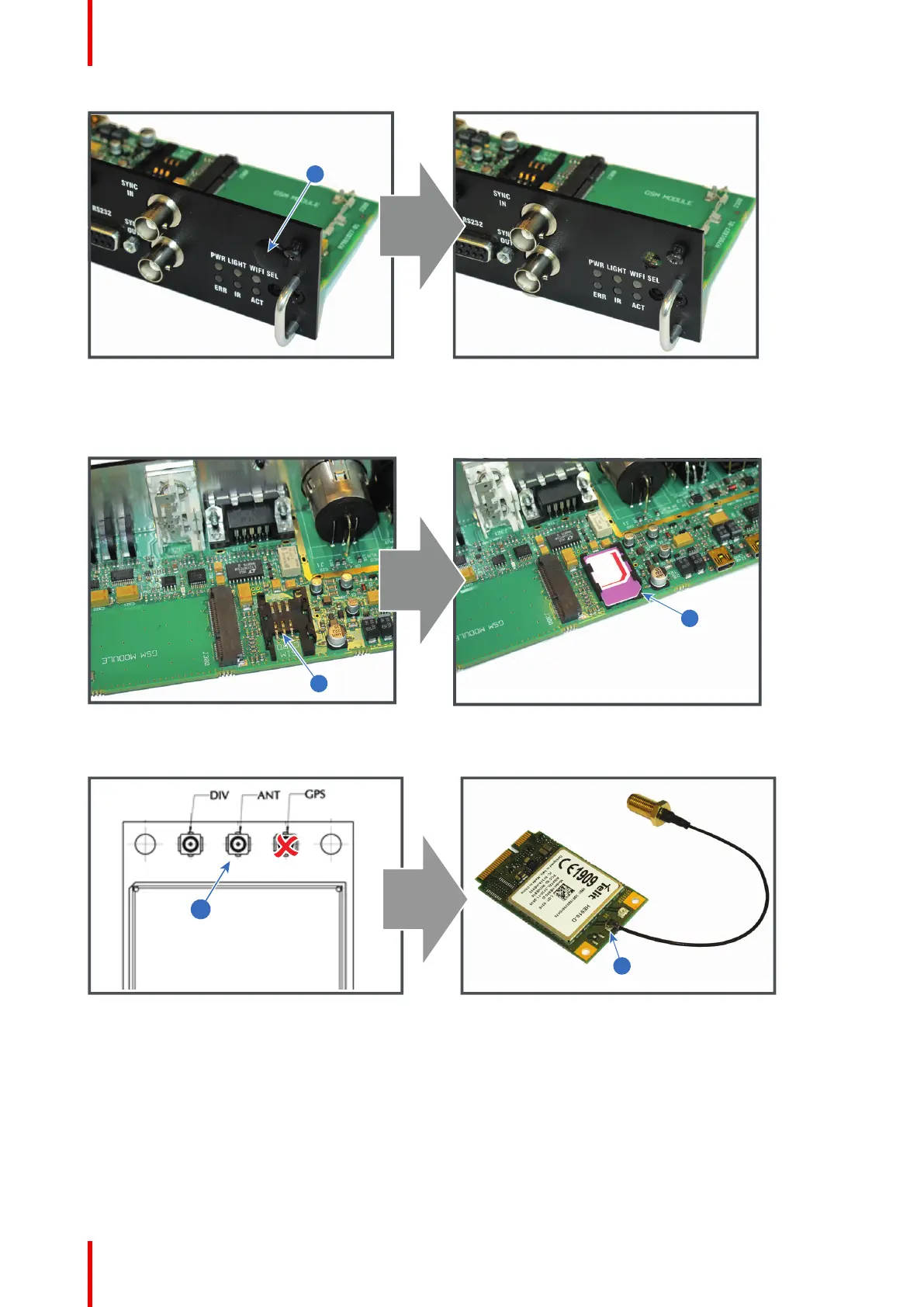

3. Slide in the SIM card into the SIM card holder (2).
Ensure that the truncated corner of the SIM card is facing the edge of the module (3).
2
3
Image 7-11
4. Plug in the antenna wire connector on the front side of the GSM module (4).
4
4
Image 7-12
5. Insert the GSM module with antenna wire into the connector (5). Push the other side of the module down until
it clicks so that the module is secured (6).
WiFi & GSM Module
