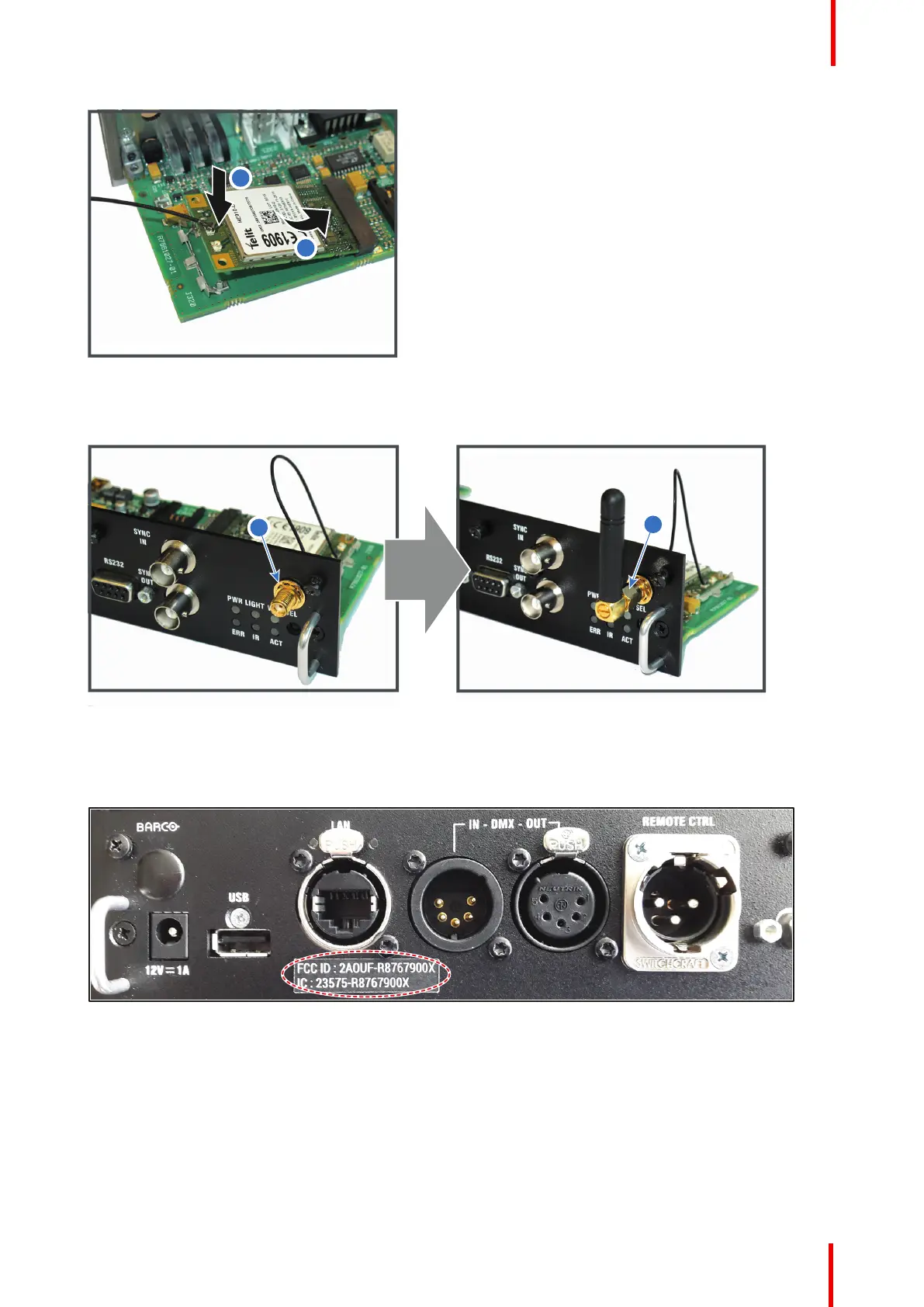

6. Push the antenna connector through the hole in the front plate and secure the antenna wire by installing the
lock washer and nut (7).
7
8
Image 7-14
7. Install the antenna by screwing it on its base (8).
8. Stick the black label with certification numbers on the front plate of the communication board.
Image 7-15: Example of the black label on the communication board
9. Reinsert the communication board.
