R5906113 /08 UDX 91
Adjusting the laser range finder
1. Make sure your projector is mounted perpendicular to the screen. For more info, see “Alignment of a table
mounted projector”, page 42.
2. Turn off the light source and activate the laser ranging. Test to see if the laser range goes similarly
perpendicular to the screen as the light source did.
3. If not, manipulate the three adjustment screws of the laser range finder (reference 1, Image 8-7) clockwise or
counterclockwise in order to adjust the laser source. Use a PH1 Phillips screwdriver to adjust the adjustment
screws.

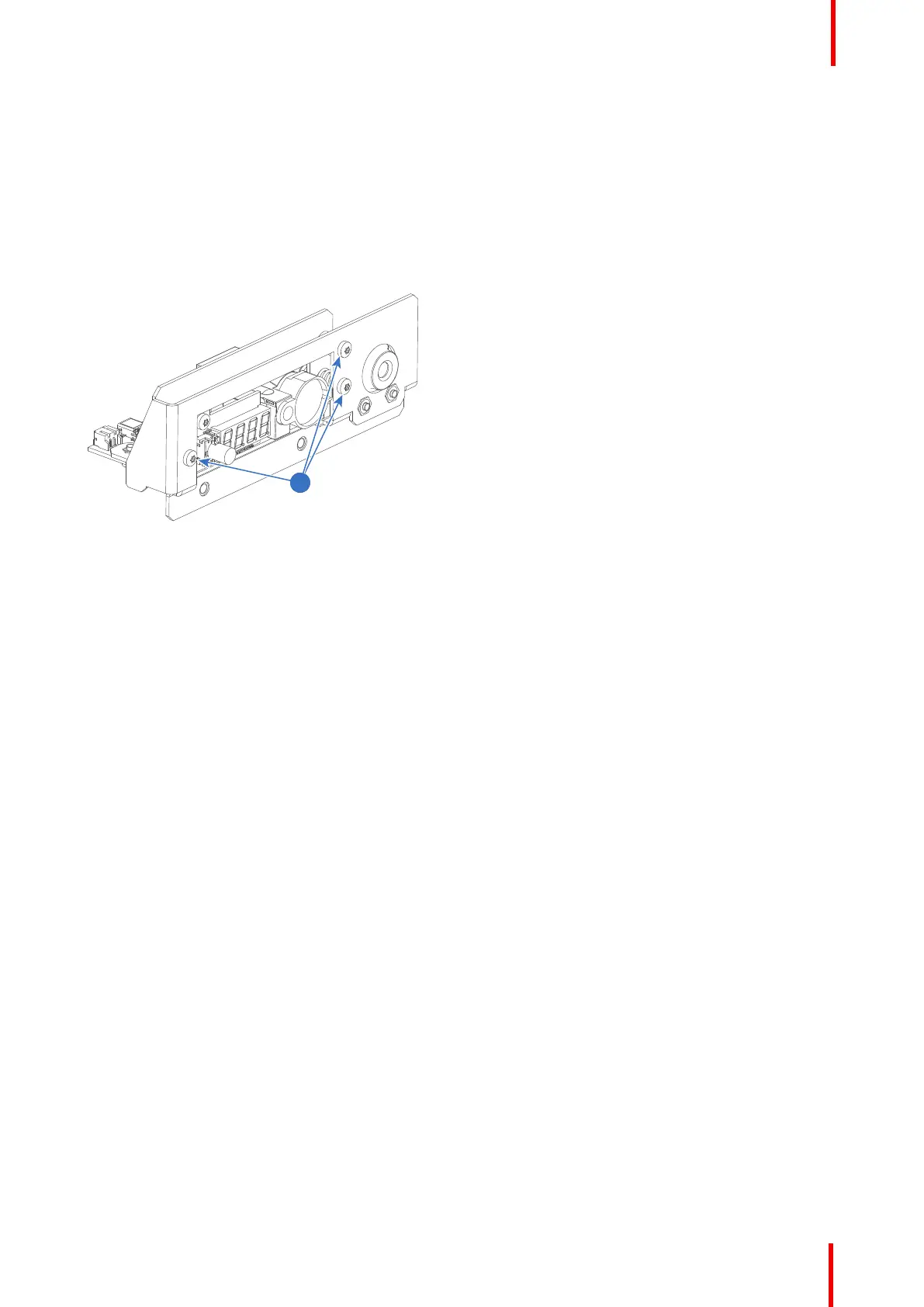

Image 8-7: Location of the adjustment screws.
Laser range finder & camera kit
