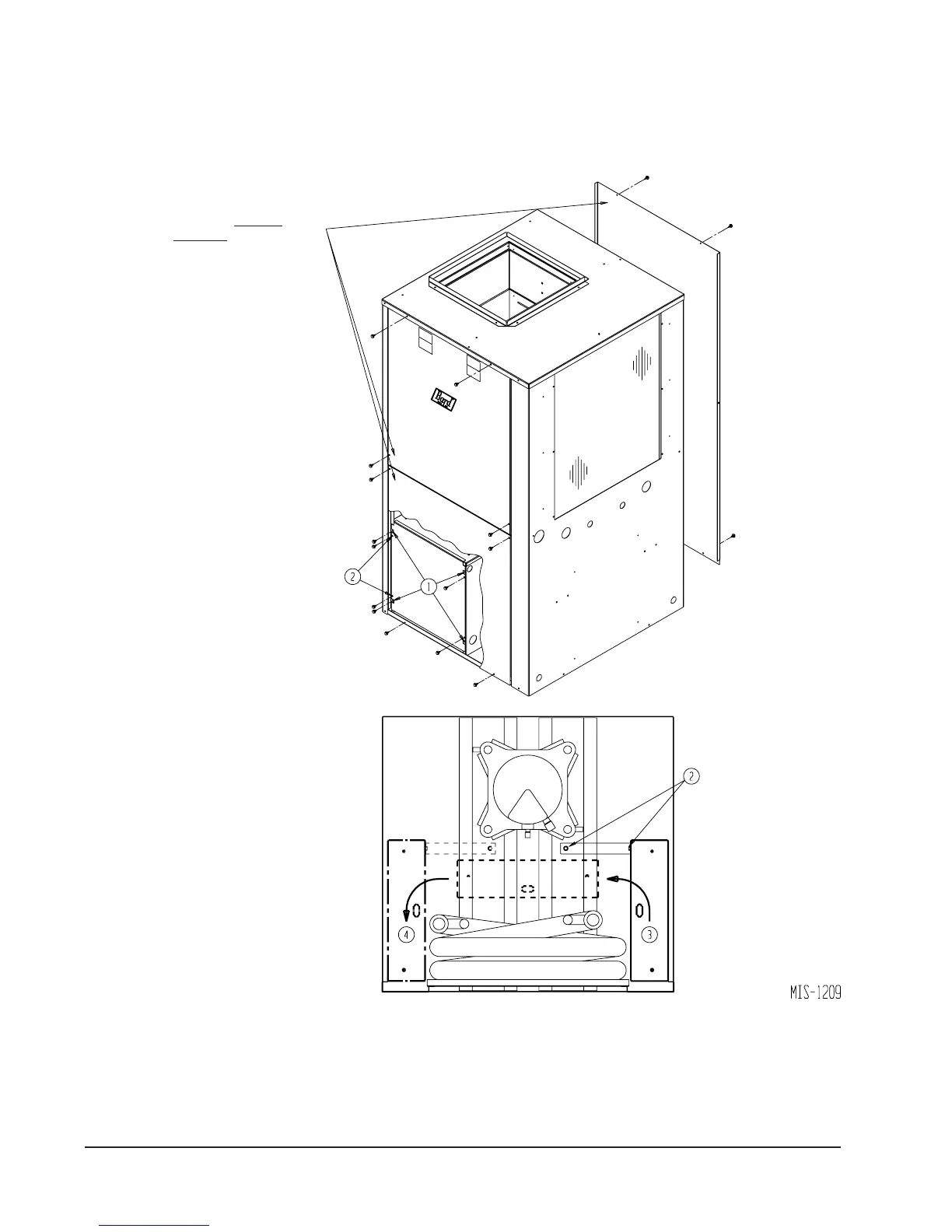

FIGURE 2
FIELD-CONVERSION TO LEFT HAND RETURN
REMOVE SINGLE AND
DOUBLE DOORS
REPOSITION DOORS SO DOUBLE DOORS
ARE ON CONTROL PANEL SIDE, AND
SINGLE DOOR ON OPPOSITE SIDE
1 REMOVE 4 SCREWS SECURING
COVER
2 REMOVE 2 SCREWS HOLDING
CONTROL BOX TO CORNER PANEL
REMOVE 2 SCREWS SECURING
PANEL TO BASE.
3 PASS CONTROL PANEL THROUGH
COMPRESSOR SECTION
4 RE-SECURE CONTROL PANEL ON
OPPOSITE SIDE IN SAME MANNER
AS ORIGINALLY ATTACHED
TOP VIEW
