NOTE: Drive in direction of arrow.
8. To remove bearings from gear hubs, use gear puller or Arbor Press.
REASSEMBLY OF PUMP DRIVE
For reassembly, use the reverse procedure of 1 through 8.
NOTE: Plastic cord used for gasket material under pump adaptor plates and input housing is not reusable. Replace

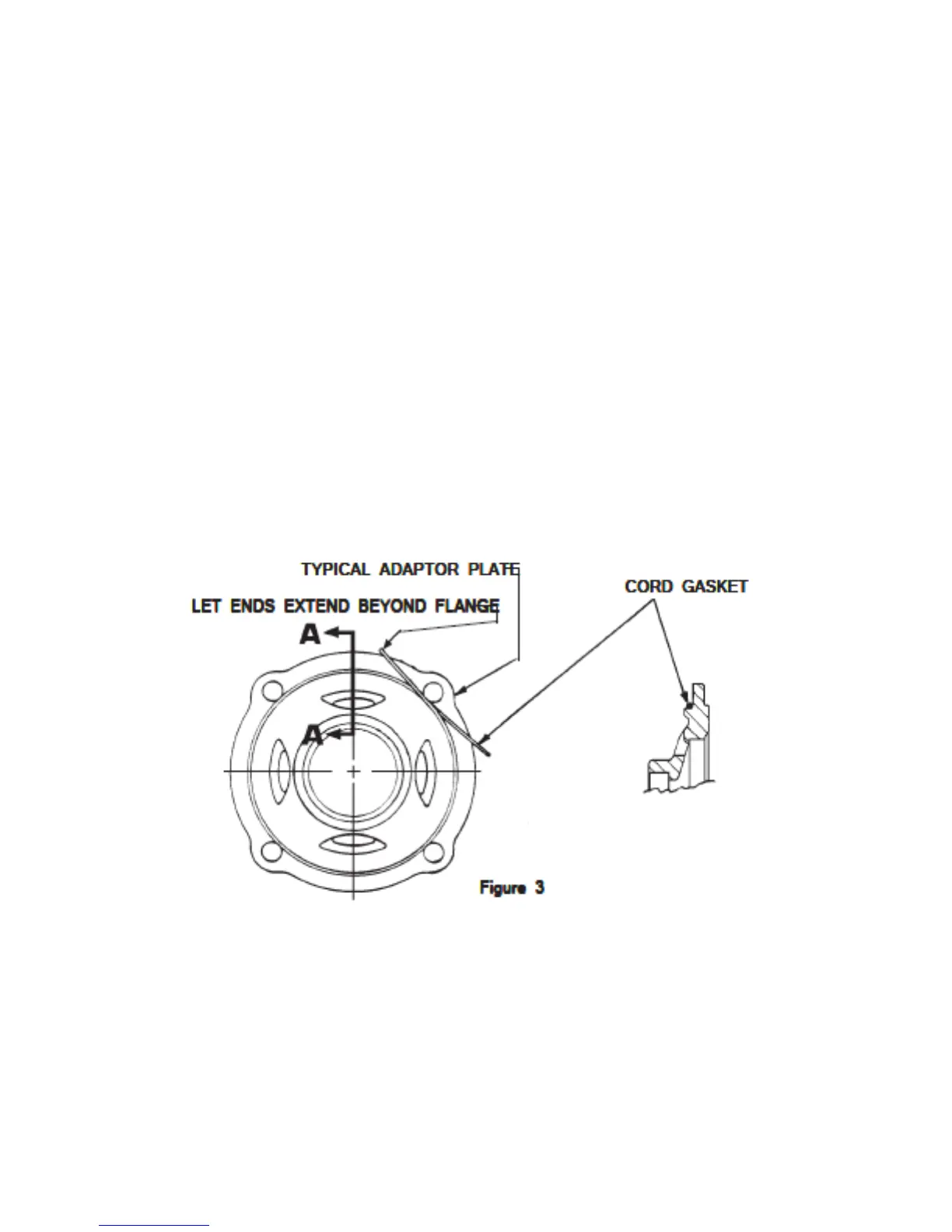

with new material when reassembling. See Figure 3 for installation of cord gasket. Place bolts should not be
reused. Clean the old Locktite out of the bolt hole threads. Install new place bolts with Locktite 262, on the
engine adaptor and pump pad. Place bolts are used in pump drive pad, torque studs to 150 ft. lbs..
Do not attempt to reuse this gasket. For assembly use new
gasket material.
Onywheelhousingsinvolvingmorethan4boltholes,be
sure cord gasket lap joint falls behind one hole location which
will be used for a bolt or stud fastener. Do not lap ends
behind an unused bolt hole.
Remove protective paper strip from cord and with adhesive
side next to metal, install around pilot. Cross ends, as shown,
behindboltholeandletendsextendbeyondange.Use
caution in assembly to case, to prevent gasket dislocation.
REPLACEMENT OF OIL SEAL
Install oil seal from engine side of engine adaptor. The rubber lip of the oil seal must point toward the inside of pump
drive gear box.
NOTE: Drive in direction of arrow.
Drive Plate Models:
 Wheninstallingdriveplateonywheel,besurethelongendofthedriveplatehubistowardtheengine.Thehub
 shouldslideintothepilotbearingboreoftheywheeltoensureproperalignmentofthedrivehubanddriveshaft.
NOTE: Arrow indicates engine side.
PUMP DRIVE MAINTENANCE CONTINUED...
