Service Manual
495B SE (S)
83
Last Updated - 9/28/2016
SINGLE PAD PUMP DRIVES
DISCONNECT CLUTCH (OPTIONAL)
If clutch does not pull, heats, or operating lever jumps out, adjustment is required. To adjust clutch, remove hand
hole plate, turn clutch until adjusting lock pin can be reached. Pull adjusting pin out and turn adjusting yoke to right or
clockwise until operating lever requires a distinct pressure to engage. A new clutch requires several adjustments until
friction discs are worn in. See Figure 5.
For cold weather start-up using Disconnect Clutch, see Start-up instructions in Operator's Manual.
If a Disconnect Clutch (optional) is ordered on your machine, the following maintenance must be done.
PUMP DRIVE MAINTENANCE CONTINUED...

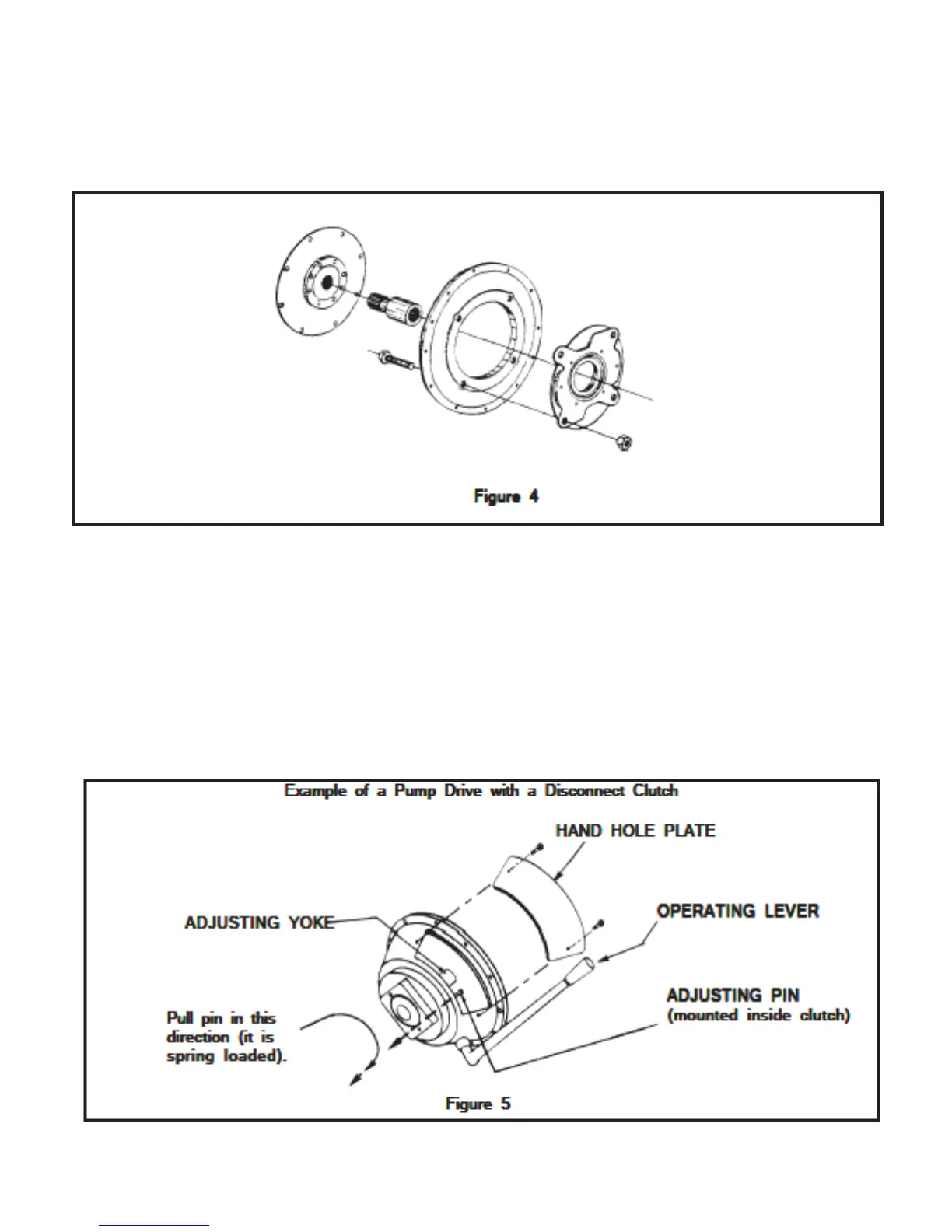

This type of Pump Drive (See Figure 4), is mounted to the engine, and is virtually maintenance free.
