26

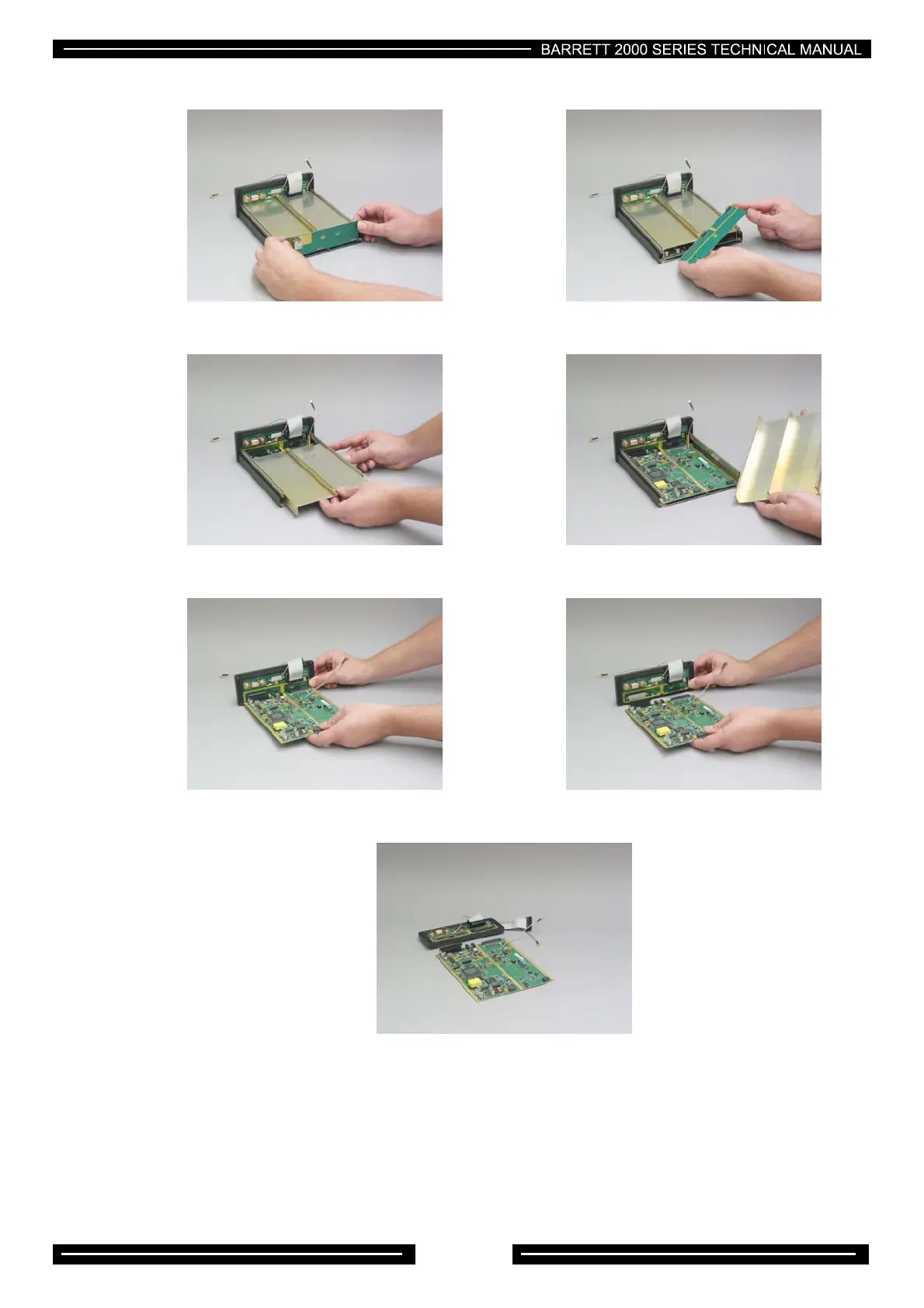

Grasp the front panel PCB and draw off from the IDC connector.
Remove the central shield plate
Grasp the Micro/RF PCB and draw away from the rear panel PCB IDC connector
The 2050 is now disassembled.
Note:- To reassemble the 2050 transceiver use this process in reverse, making sure ribbon connectors and
coaxial connectors are reinstalled and that rubber and foam gaskets that were removed during
disassembly are replaced in their original positions to maintain sealing.
