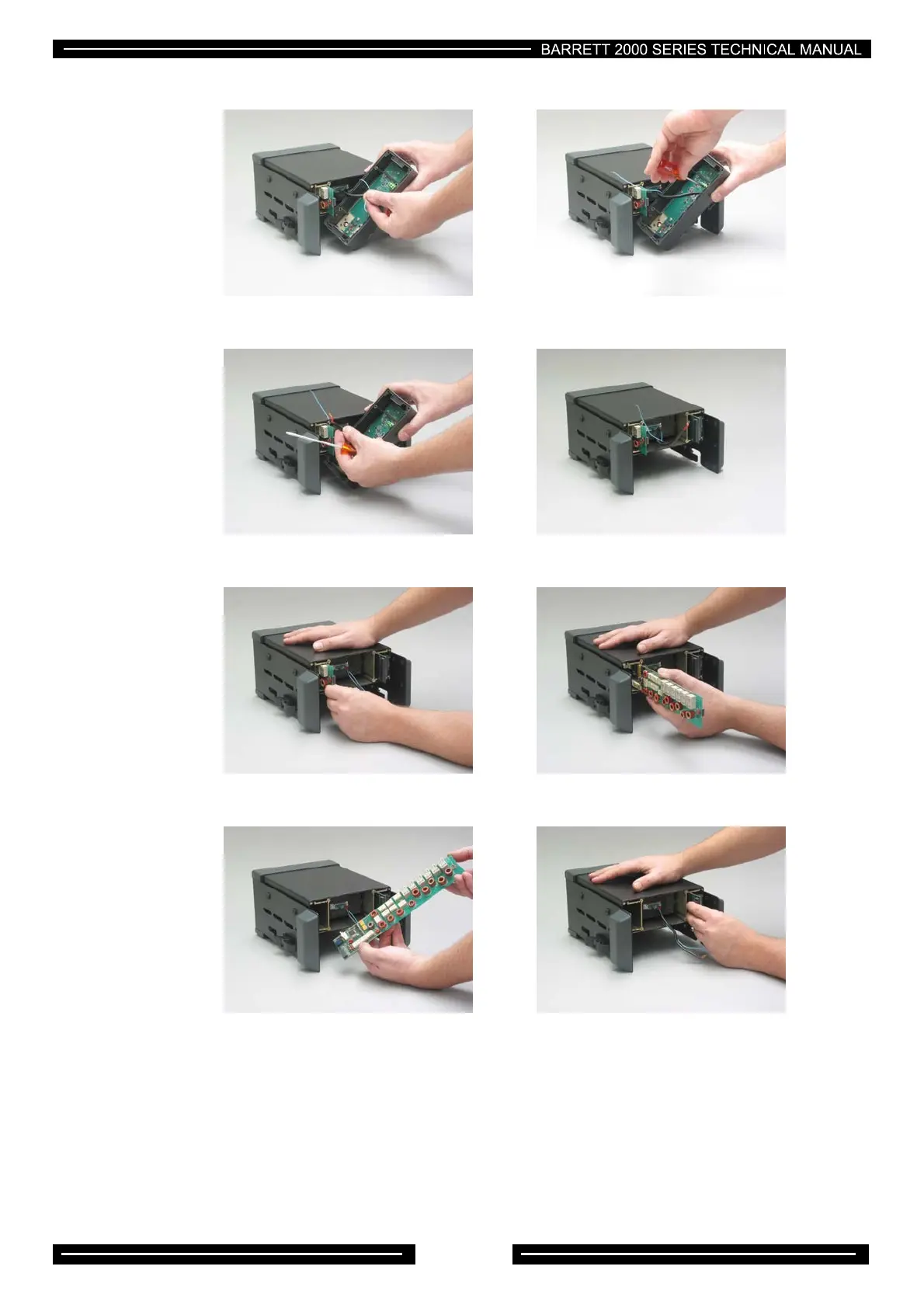

Note the location of the cables before disassembly to enable re-assembly

The front panel is now free and can be removed

Grasp the PCB edge of the automatic antenna tuner PCB and slide out

Grasp the PCB edge of the battery charger PCB and gently pull out
