BCS36x8
ex
Series Connection example
Type 17-A1S4-*HP* and B7-A2S4-****
Subject to technical changes.
05/2020
Page 11 of 78
Universal supply module –FTDI-FT232-R driver
Driver for the universal supply module (USM).
On connecting the USM, the drivers are automatically detected by the Windows operating
system and installed if necessary.
If not detected automatically, the driver can be downloaded from the BARTEC download page
or directly from the FTDI website (https://www.ftdichip.com/) and installed manually.
The driver is compatible with:
- Windows 10, 8.1, 8, 7 --- 32/64 bit
BARTEC download page: http://automation.bartec.de/indexE.htm

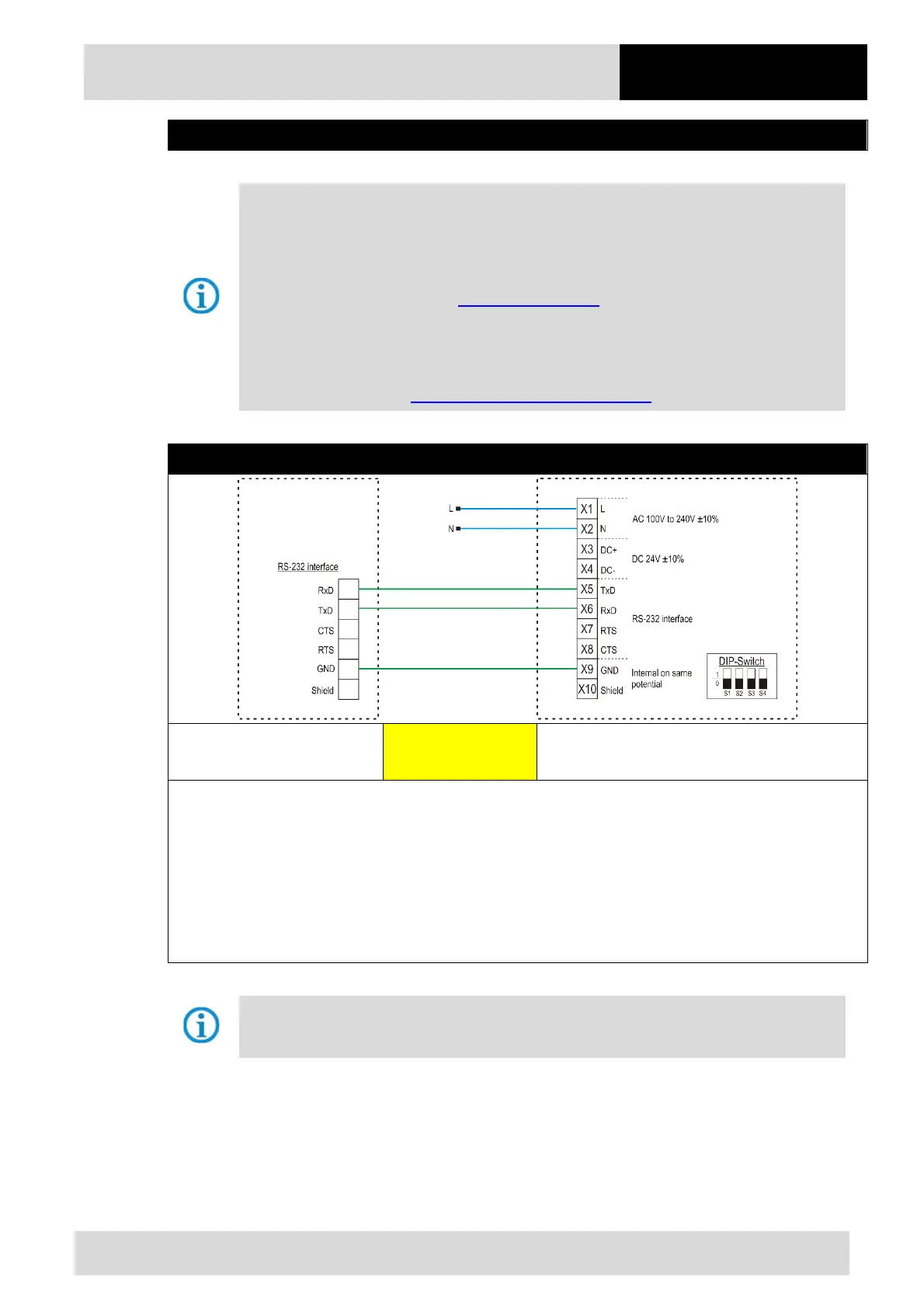

Wiring of universal supply module – RS232 interface
PC/Host with serial RS232-
interface
Max. cable length is
15 m
USM-corded
(e.g. 1
st
generation with DIP switch)
Wiring:
Blue wire necessary (example connection to AC)
Green line necessary
The signals RTS and CTS are not in use/no function internally. The terminals can only be used to connect the
wires.
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or higher
quality) cables.
The DIP switch is only populated in the 1st generation of the USM. From the 2nd generation
onwards, the interface is set via programming barcodes.
