WALK-BEHIND TROWEL INSTRUCTION MANUAL
TEREX BARTELL LTD.
31 SUN PAC BLVD, BRAMPTON, ONTARIO, CANADA, L6S 5P6, 905-458-5455 FAX 905-458-5484
590 HUEY RD, SOUTH CAROLINA, USA, 29730, 800-247-8577 FAX 800-633-5534
Created: 07/04
Revised: 4/06
- 15 -
WALK-BEHIND POWER TROWEL ASSEMBLY

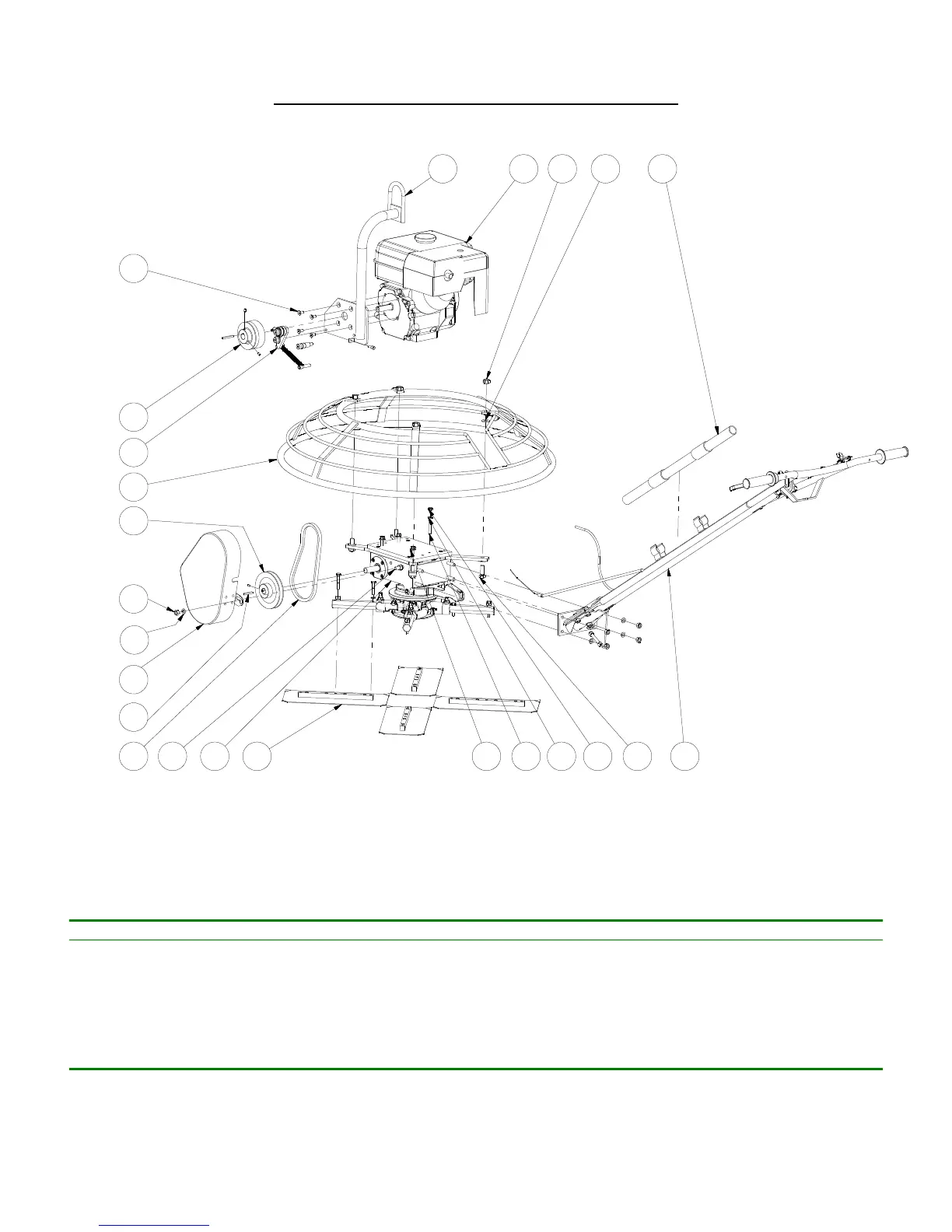

Figure 1 - Complete Trowel
Note: Some parts shown above are optional and may not be included with your trowel. Refer to the attached parts lists for complete list of parts
applicable to your trowel.
Item # Description Item # Description Item # Description Item # Description
10 Base Unit 80 Hex Nut 150 Hex Nut 200 Emergency Stop
20 Blade Kit 90 Clutch/Drive Sheave 160 Guard Ring 240 Hoist Hook (opt.)
30 Handle Assy 100 Driven Sheave 165 Hex Hd. Screw 250 Flat Hd. Screw
40 Engine (opt.) 110 Key 170 Flat Washer 270 Carry Bar
50 Stud 120 V Belt 175 Rubber Washer
60 Flat Washer 130 Belt Guard 180 Hex Locknut
70
Lock Washer 140 Lock Washer 190 Stud
160
190120
150
130
140
100
110
2010 60 30807050 165
40
90
200
250
240 175180 270
To Next Page
