HANDLE ASSEMBLY

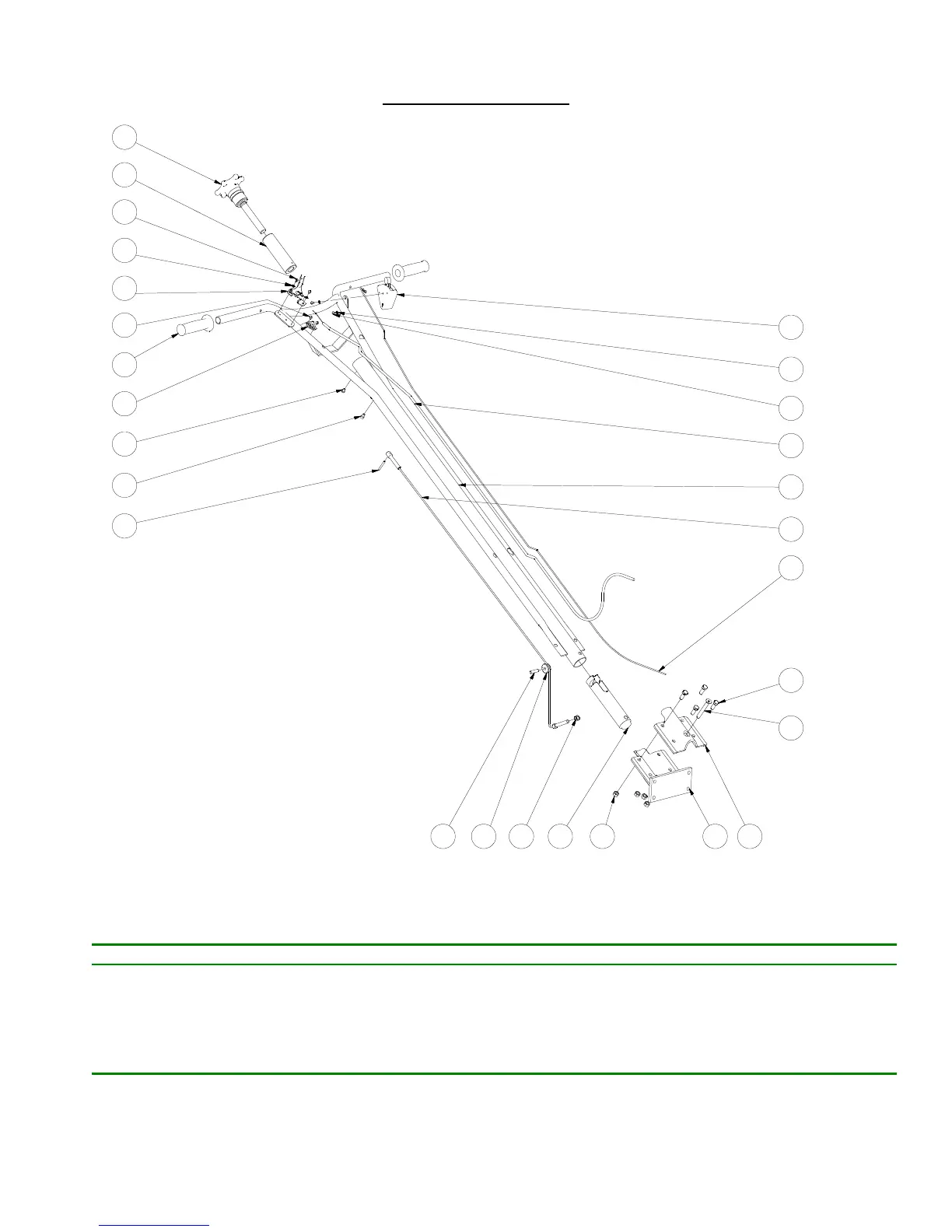

Figure 6 - Handle Assembly
Note: Not all items shown above may be included with your trowel, refer to attached parts list.
Item # Description Item # Description Item # Description Item # Description
10 Handle Bracket 70 Flat Hd. Screw 125 Hex Nut 180 Lockwasher
20 Handle Clamp 80 Hex Hd. Screw 130 Pin 190 Round Hd. Screw
30 Rigid Handle 90 Locknut 140 Soc. Hd. Screw 200 Deadman Switch
40 Support Block 100 Hand Knob Assy. 150 Round Hd. Screw 210 Deadman Wire
50 Pulley 110 Slide Bushing 160 Throttle Control 220 On/Off Switch
60 Pin 120 Pitch Adj. Cable 170 Throttle Cable 230 Handle Grips
110
60
220
130
140
150
160
230
190
180
190
209012550 40 10
70
80
190
210
120
30
170
180
200
100
