WALK-BEHIND TROWEL INSTRUCTION MANUAL
TEREX BARTELL LTD.
31 SUN PAC BLVD, BRAMPTON, ONTARIO, CANADA, L6S 5P6, 905-458-5455 FAX 905-458-5484
590 HUEY RD, SOUTH CAROLINA, USA, 29730, 800-247-8577 FAX 800-633-5534
Created: 07/04
Revised: 4/06
- 17 -
BASE UNIT ASSEMBLY

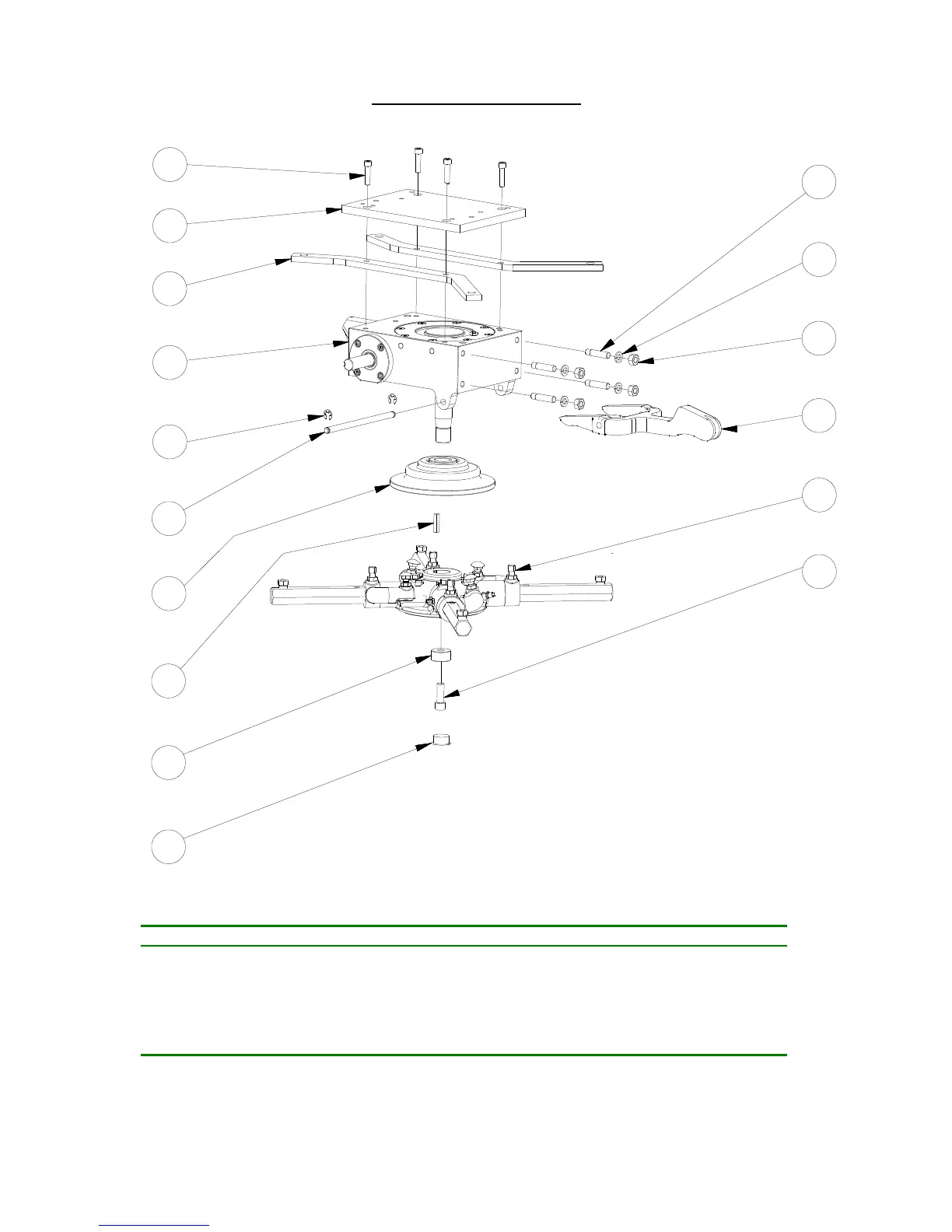

Figure 2 - Base Unit
Item # Description Item # Description Item # Description
10 Spider Plate Assy 70 Yoke arm 130 Mounting Rails
20 Pressure Plate Assy 80 Pin 140 Engine Plate
30 Key 90 Retaining Ring 150 Soc.Hd. Capscrew
40 Gearbox Assy 100 Stud 160 Cap Plug
50 Retainer 110 Lock Washer
60 Soc.Hd. Capscrew 120 Hex Nut
110
100
90
30
50
20
80
150
130
40
140
60
70
10
120
160
