BASF 6106 - Drive Belt; Tension Adjustment; Motor Speed

Reading
80
p
_
2
p

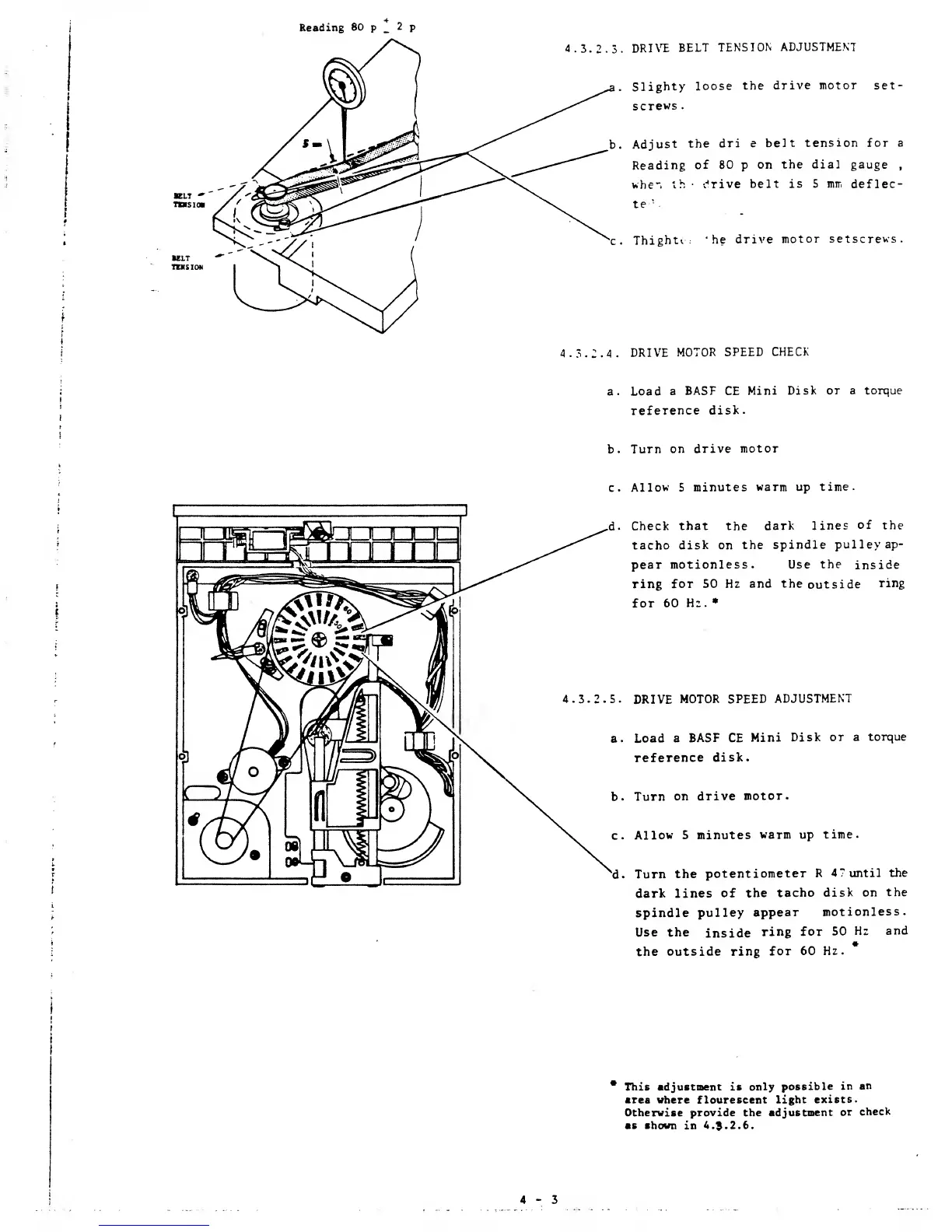

4.3.2.3.
DRIVE
BELT
TENSION
ADJUSTMENT
.
Slighty
loose
the
drive motor
set-
screws
.
b.
Adjust
the
dri e
be]t
tension for a
Reading
of
80
p
on
the dial gauge
,
when
th
•
drive
belt
is
5
mm
deflec-
te
'
•
c.
Thighti
-
: 'he
drive
motor setscrews.
4.3.2.4.
DRIVE
MOTOR
SPEED
CHECK
a. Load
a
BASF
CE
Mini
Disk
or a torque
reference
disk.
b.
Turn on
drive
motor
c.
Allow 5
minutes
warm up
time.
d.
Check
that
the
dark
lines
of
the
tacho
disk
on
the
spindle
pulley
ap-
pear
motionless. Use
the
inside
ring
for 50 Hz
and the
outside
ring
for
60 Hz.
*
5.
DRIVE
MOTOR SPEED
ADJUSTMENT
a.
Load a
BASF CE
Mini
Disk
or a
torque
reference
disk.
b.
Turn
on drive
motor.
c.
Allow 5 minutes
warm up
time.
d.
Turn
the
potentiometer
R
47 until
the
dark
lines of
the
tacho
disk on
the
spindle
pulley
appear
motionless.
Use
the
inside
ring
for 50
Hz
and
the
outside ring
for 60
Hz.
•
This adjustment
is
only
possible in
an
area where
flourescent
light
exists.
Otherwise provide the
adjustment
or
check
as shown in
4.
J. 2. 6.
