BASF 6106 - Page 61

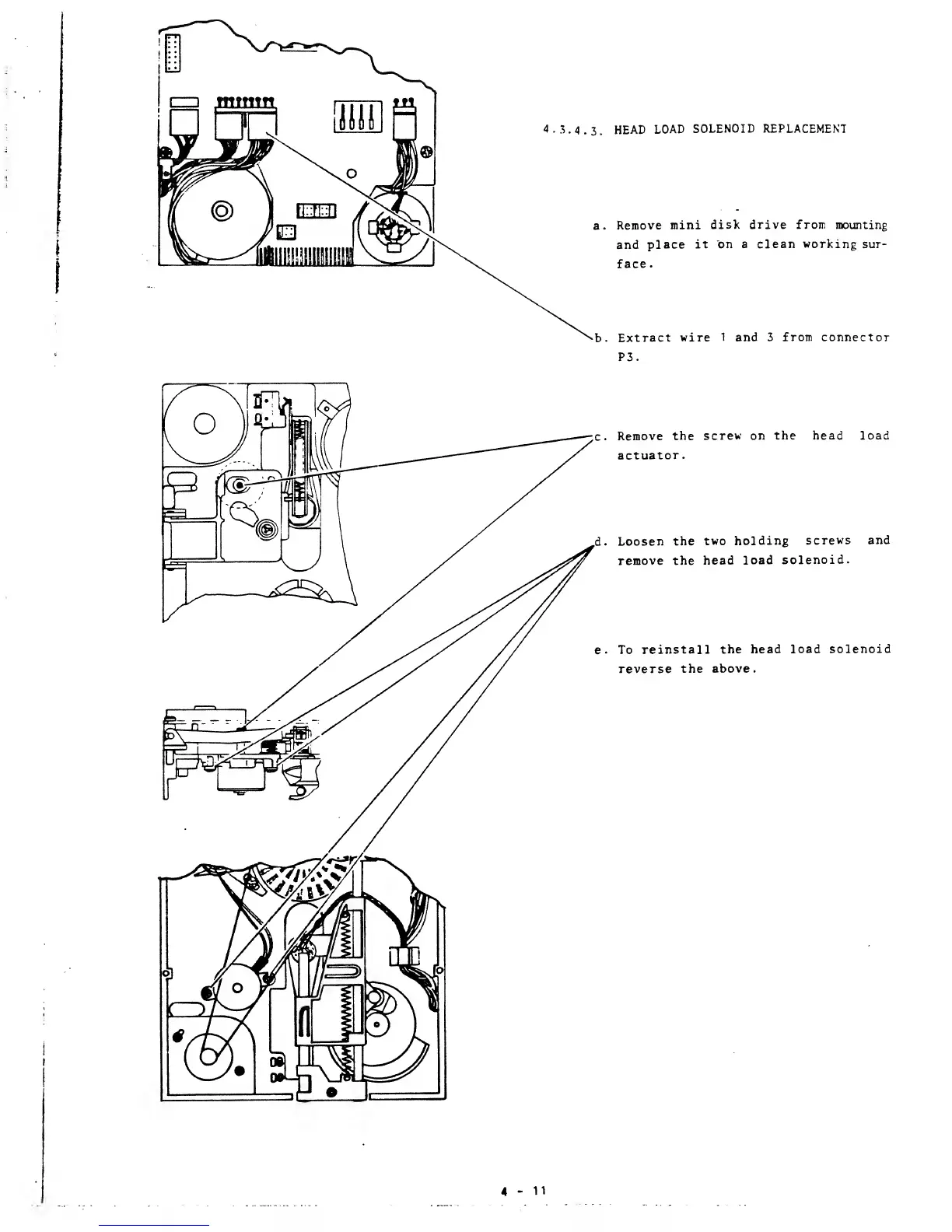

4.3.4.3. HEAD
LOAD
SOLENOID REPLACEMENT
a.
Remove
mini
disk drive from mounting
and
place
it on a
clean working sur-
face
.
b.
Extract
wire
1 and 3 from connector
P3.
c.
Remove
the
screw on the
head load
actuator.
d.
Loosen
the
two holding
screws and
remove the
head
load
solenoid.
e.
To
reinstall
the head
load solenoid
reverse
the
above.
4-11
