PWM Settings

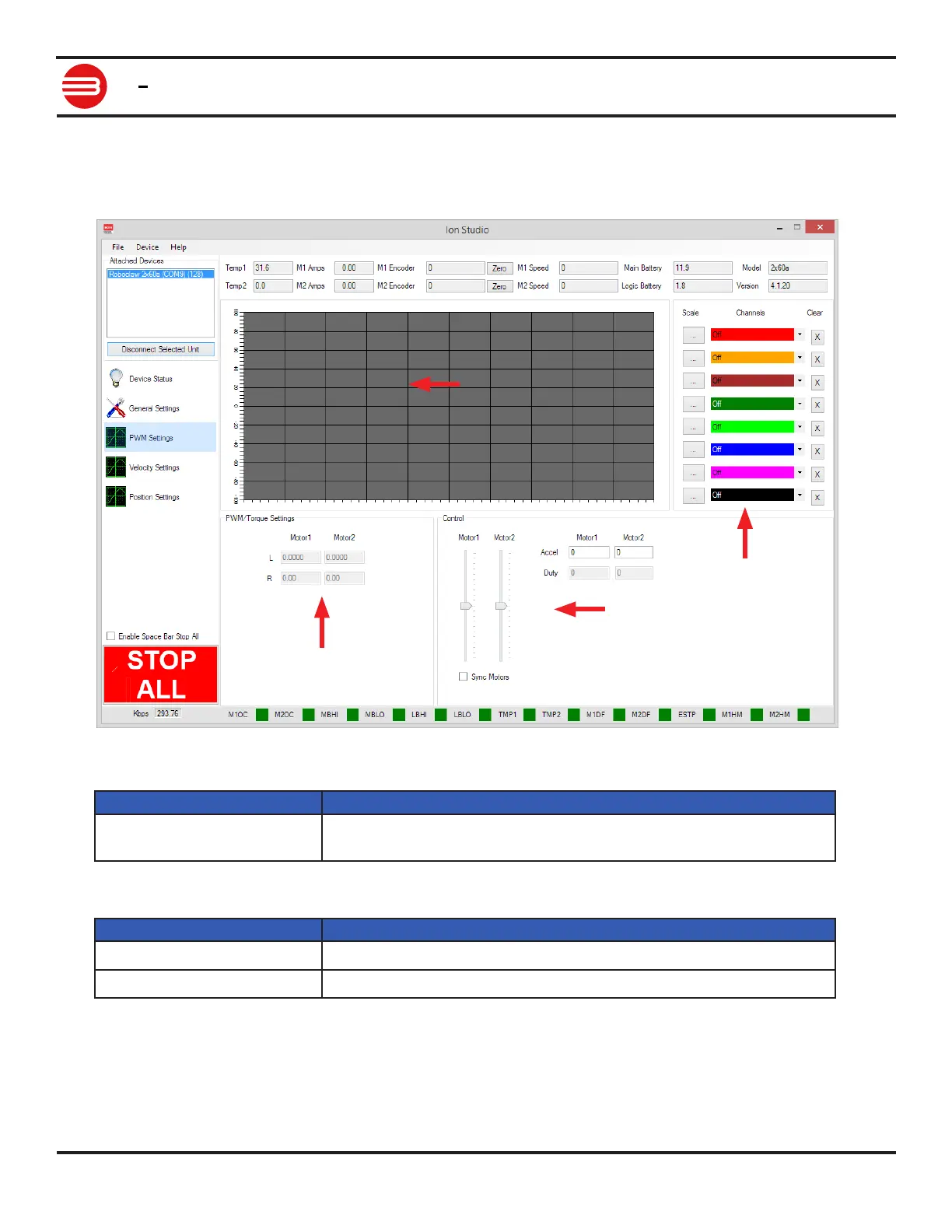

The PWM settings screen is used to control RoboClaw for testing. Sliders are provided to control
each motor channel. This screen can also be used to determine the QPPS of attached encoders.
(1) Graph
Function Description
Grid Displays channel data with 100mS update rate and one second horizontal
divisions.
(2) PWM/Torque Settings
Function Description
L MCP only. Motor Inductance in Henries.
R MCP only. Motor resistance in Ohms.
2
1
3
4
