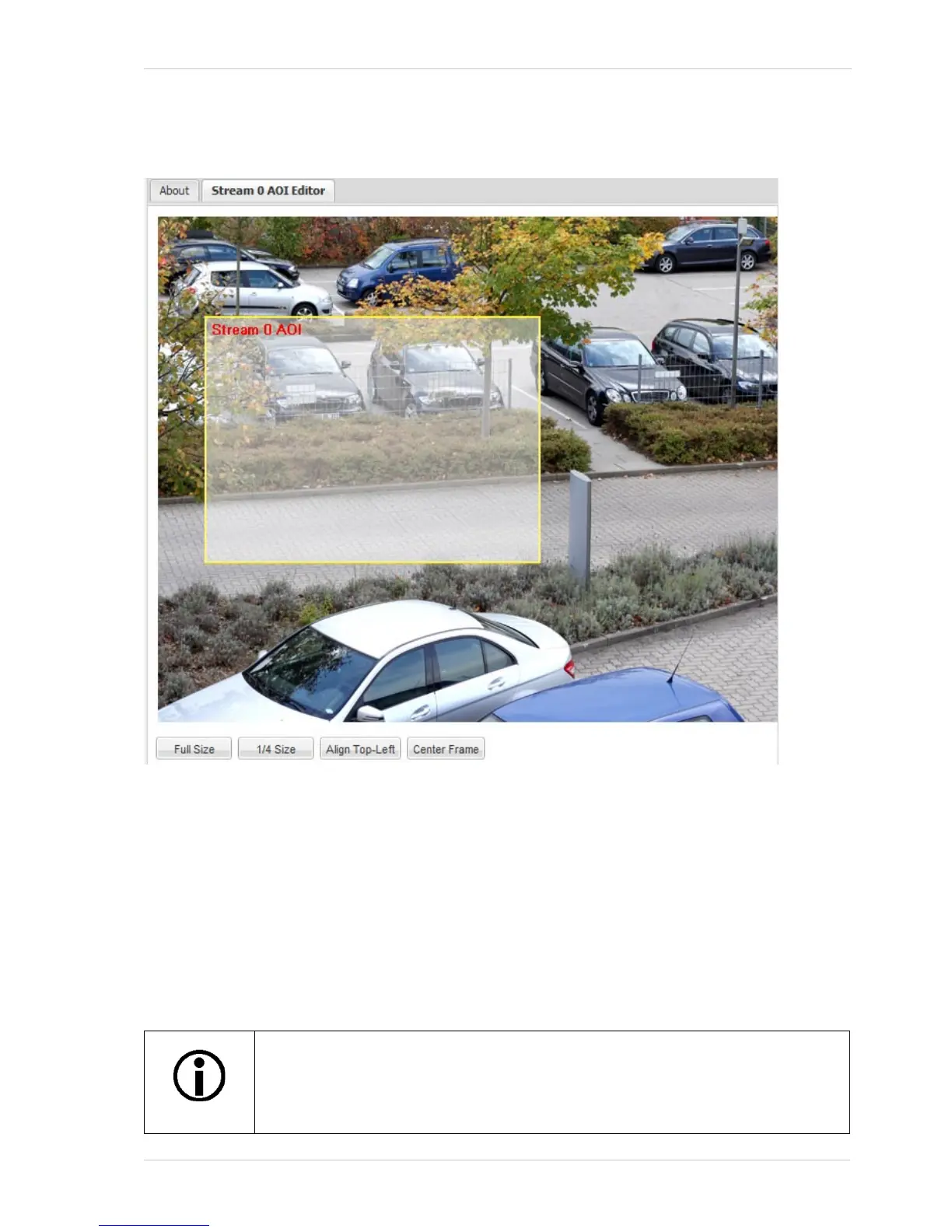

Stream AOI Editor - Whenever a stream tab is selected, a Stream AOI Editor screen will also be
available as shown below.
Rather than setting numbers in the boxes on the stream tab, you can use the editor to set the AOI
size and position for the stream. To set the stream AOI with the editor, simply use your cursor to
drag the edges of the red rectangle that represents the stream AOI. You can also use the buttons
at the bottom of the editor to set the stream AOI to the full size of the sensor AOI, to set the stream
AOI to 1/4 of the sensor AOI’s size, to align the stream AOI to the top left side of the sensor AOI, or
to center the stream AOI within the sensor AOI.
When you are working with a stream AOI, remember that the stream AOI must be contained within
the sensor AOI. So if you have changed the size or the position of the sensor AOI, this will restrict
what you can do with the stream AOI.
Note that the dotted yellow rectangle in the Stream AOI Editor shows the current size and position
of the sensor AOI.
A stream AOI must be contained within the sensor AOI (see Section 3.4.1 on
page 20, Figure 3 on page 20, and Figure 4 on page 29). So if you have
decreased the size of the sensor AOI, you will find that the allowed settings for the
stream AOIs will be restricted.
