Basler BIP2-XXXXc User Manual

AW00097209000 Configuring the Camera
Basler IP Fixed Box Cameras 61
Using the Flash Window (Rolling Shutter)
To provide the best-possible lighting conditions, apply the additional lighting during the "flash
window" of each frame. The flash window is the period of time during a frame acquisition when all
of the lines in the sensor are being exposed. See Figure 6.

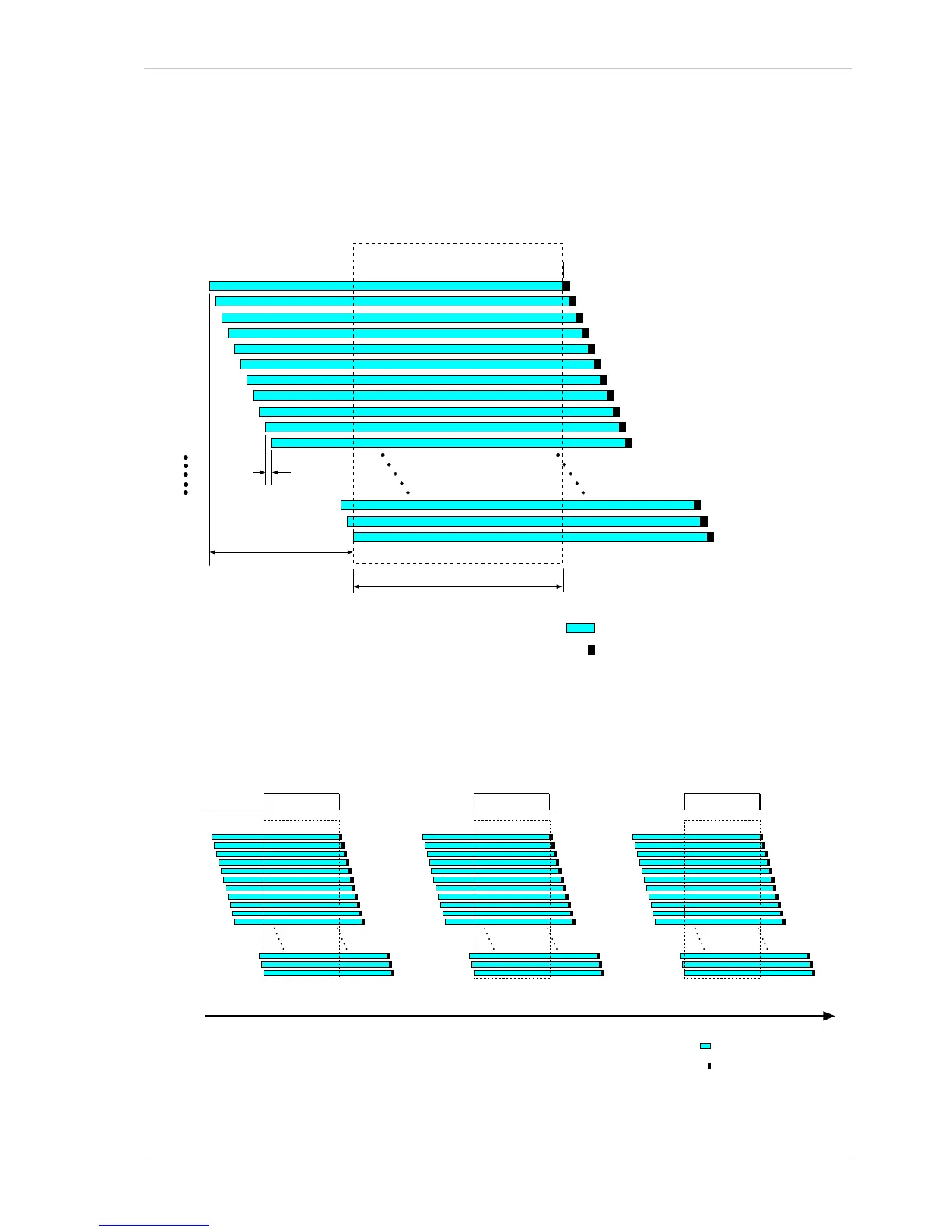

Fig. 6: Flash Window
When the Strobe Mode parameter is set to "Flash Window", the camera sends a signal on the digital
output port that can be used to trigger a strobe pulse (= flash) in order to provide additional lighting.
This signal is called the flash window signal. See Figure 7.
Fig. 7: Flash Window Signal
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line 8
Line 9
Line 10
Line 11
Line n-2
Line n-1
Line n
Flash Window
tRow
Time to Flash Window Open
Flash Window Width
= line exposure time
= line readout time
Flash
Window
Signal
= Line Exposure
= Line Readout
Flash Window
Flash Window
Flash Window
Time
