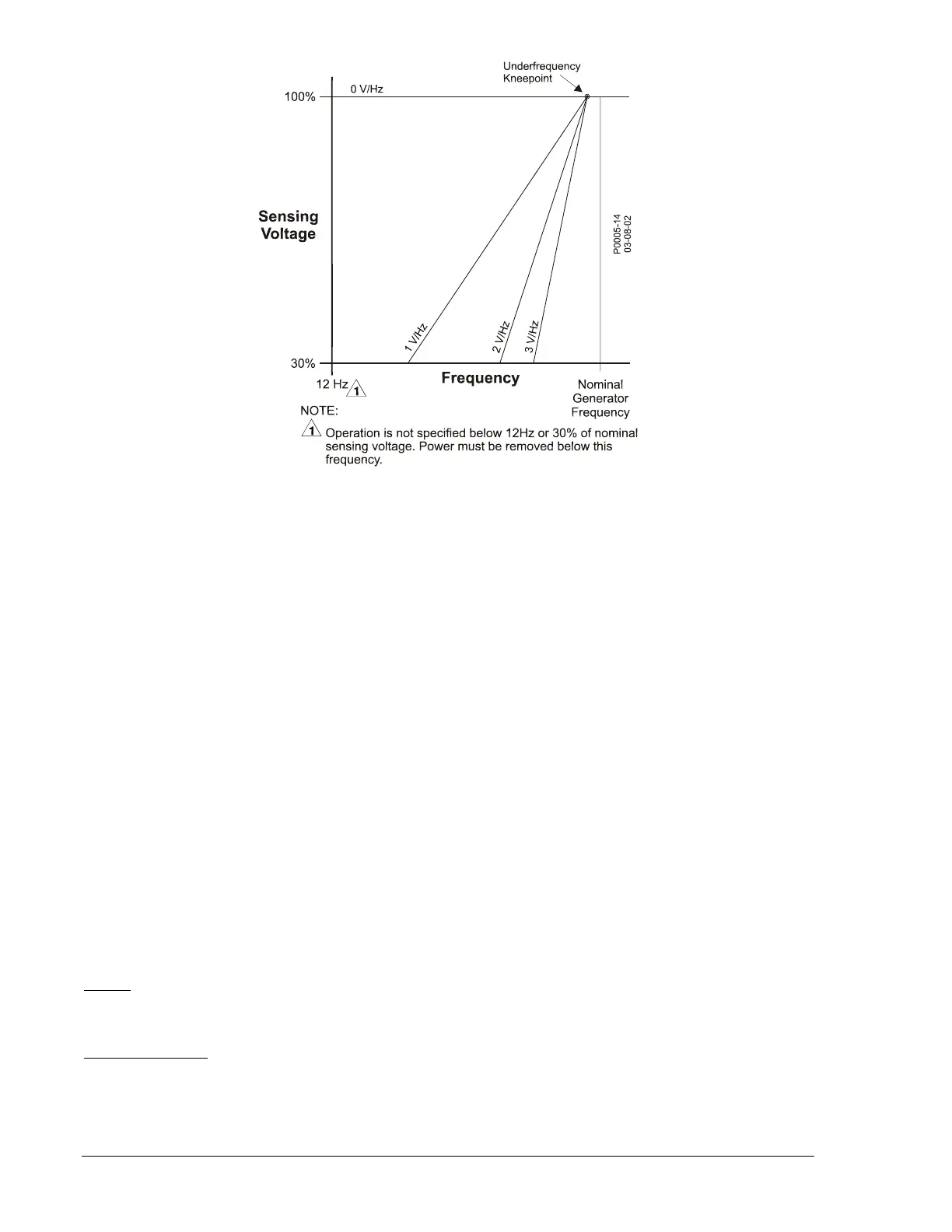

Figure 1-2. Typical V/Hz Curves
FCR (Manual) Operating Mode
Adjustment Range: 0 to 7 Adc
Increment: 0.01 Adc
Var Operating Mode (Optional)
Adjustment Range: –100 to 100%
Increment: 0.1%
PF Operating Mode (Optional)
Adjustment Range: 0.6 lag to 0.6 lead
Increment: 0.001
Parallel Compensation
Modes: Reactive Droop and Reactive Differential (cross-current)∗
Droop Adjust Range: 0 to 10%
Increment: 1%
∗ Burden can exceed 1 VA if external resistors are added to the CT circuit.
Field Overvoltage Protection
Pickup Range: 0 to 250 Vdc
Time Delay: 10 s (fixed)
Generator Overvoltage Protection
Range: 100 to 120% of system voltage setting
Pickup
Increment: 1.0%
Range: 0 to 10 s
Alarm Time Delay
Increment: 1 s
