9287500991 Rev K DECS-100 BESTCOMS Software 5-15
Metering button or by clicking Metering on the Menu bar and clicking Enable Metering. The Metering,
Operation and Alarms screen consists of two tabs: Operation and Alarm/Status.
Operation Tab
Operation tab metering values, setpoint values, and control functions are illustrated in Figure 5-16.
Gen Voltage (V). These metering values report the status of the V
A-B
, V
C-B
, V
C-A
, and V
AVG
generator
voltages. The reported values are the product of the voltage sensed at terminals E1, E2, and E3 and the
generator PT ratio. All metering values are updated once each second. When single-phase sensing is
used (System Configuration screen, Sensing Voltage) and the DECS-100 sensing voltage terminals (E1,
E2, and E3) are connected as shown in Figures 4-7 or 4-9, all of the generator voltage metering values
will be identical.

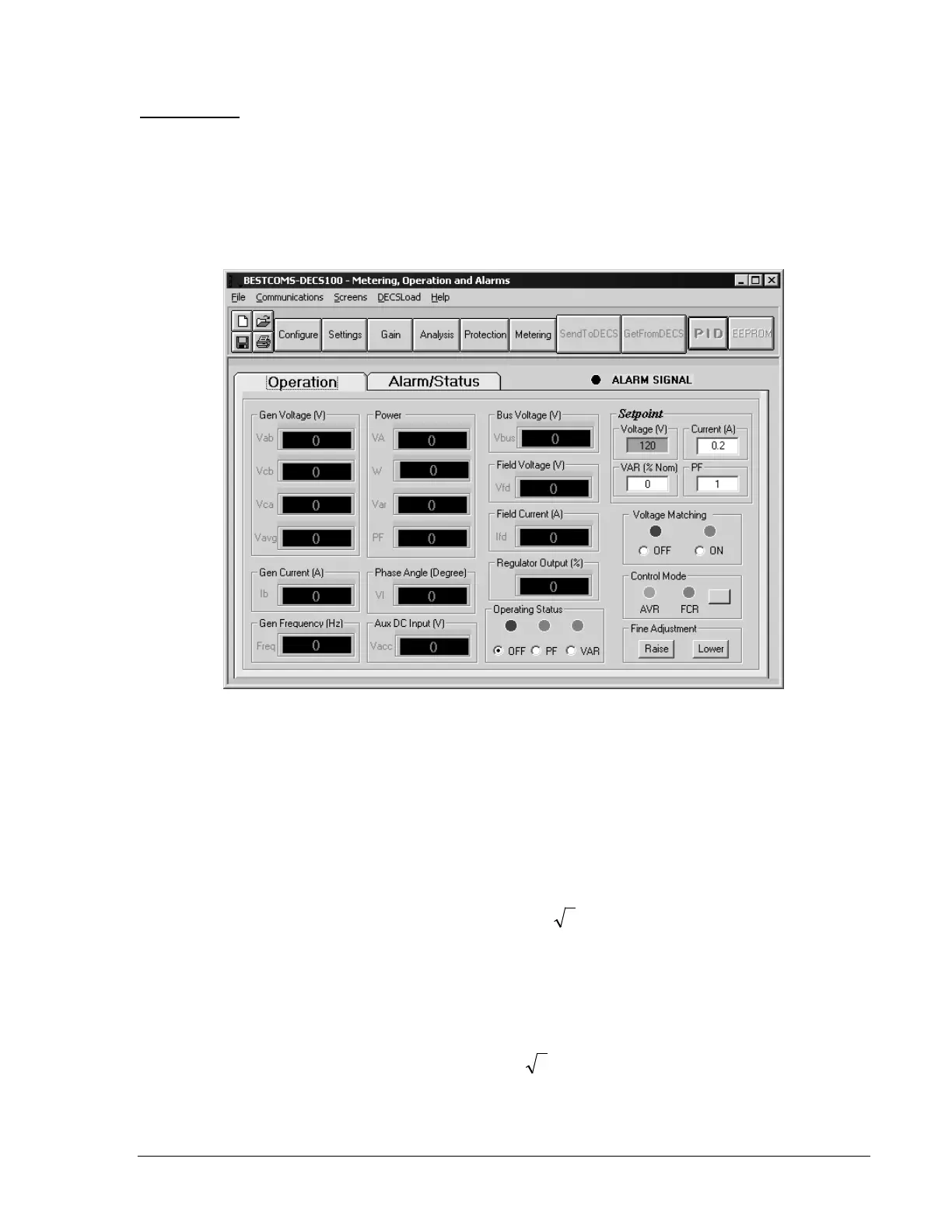

Figure 5-16. Metering, Operation, and Alarms Screen, Operation Tab
Gen Current (A).
This metering value indicates the level of the B-phase generator current. This value is
the product of the current input to CT1 and CT2 and the CT ratio. Generator current is monitored through
DECS-100 terminals CT1 and CT2.
Gen Frequency (Hz). This metering value indicates the frequency of the monitored generator voltage.
Power - VA. This metering value indicates apparent power and is the calculated product of the metered
generator voltage (V
AVG
), PT ratio (entered at the System Configuration screen), metered generator
current (Ib), CT ratio (entered at the System Configuration screen), and the square root of 3. See
Equation 5-1.
3××=
BAVG
IVVA
Equation 5-1
Power – W.
This metering value indicates real power and is the calculated product of the metered
generator voltage(V
AVG
), PT ratio (entered at the System Configuration screen), metered generator
current (Ib) CT ratio (entered at the System Configuration screen), square root of 3, and the cosine of the
metered phase angle. See Equation 5-2.
φ cos3 ×××=
BAVG
IVW
Equation 5-2
Power – Var. This metering value indicates reactive power and is the calculated product of the metered
generator voltage(V
AVG
), PT ratio (entered at the System Configuration screen), metered generator
